Showing all 10 results
Audio Amplifier Modules
0.25W 16 Ohms Type Round Plastic Shell Magnet Speaker
In stock
₹28.00 (Incl. GST)Specifications:
Resistance: 16 ohms
Power: 0.25 W
Speaker Diameter: ~35MM
Thickness: ~07mm

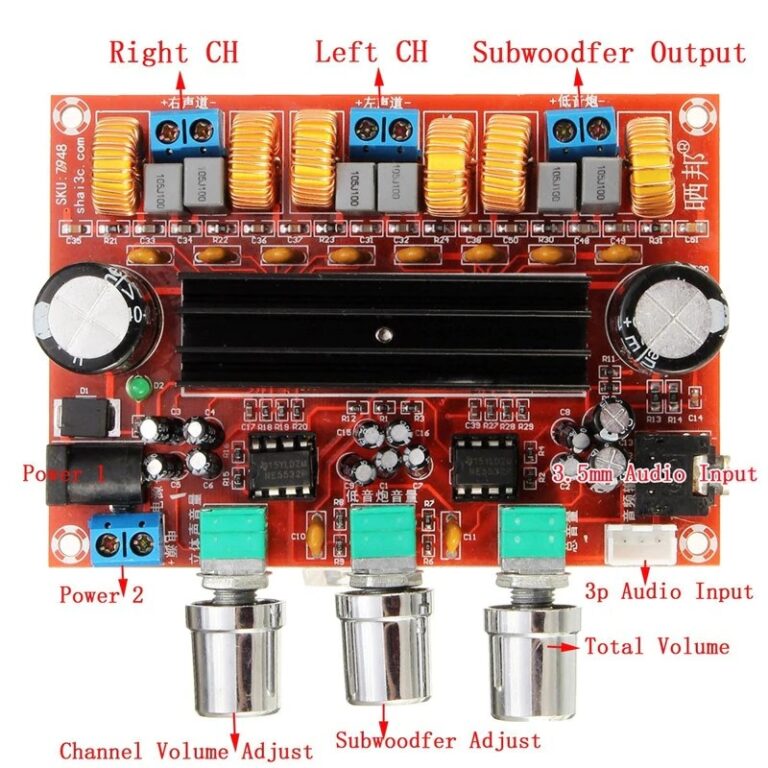

DC12-24V TPA3116D2 2.1 Channel Digital Subwoofer Power Amplifier Board
In stock
₹743.00 (Incl. GST)Adopts two high-quality TPA3116D2 digital amplifier chips.
Sound quality is very good, high efficiency and amplifying power.
50W x 2+100W 2.1 channels(left/right channel and subwoofer channel), high efficiency and low-heat.
Powered by DC 12-24V, wide input voltage.
User can adjust the volume by themselves easily.
Applicable speaker impedance: 4-8 ohm.
MAX9814 High Performance Microphone AGC Amplifier Module CMA- 4544PF-W
In stock
₹216.00 (Incl. GST)Supply Voltage: 2.7v-5.5v @ 3mA current
Output: 2Vpp on 1.25V bias
Frequency Response: 20Hz – 20 KHz
Programmable Attack and Release Ratio
Automatic gain, selectable max from 40dB, 50dB, or 60dB
MAX98357 I2S 3W Class D Amplifier Interface Audio Decoder Module Filterless Board For Raspberry Pi ESP32
Available on backorder
₹135.00 (Incl. GST)Specifications:
3.2 W output at 10% THD, 4 Ω impedance of the speaker and 5 V power supply
2.7 – 5.5 V operating voltage
77 dB PSRR at 1 kHz
Selectable gains: 3 dB, 6 dB, 9 dB, 12 dB, 15 dB
PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output
In stock
₹111.00 (Incl. GST)Specifications:
Dual-Channel Stereo Output
Run-on 7V to 15V Power Supply.
32 Steps DC volume control has a +32dB to -75dB range.
40 pin QFN 6 x 6 mm package.
Much higher efficiency in terms of cost and performance than competitors’ ICs
PAM8403 5V TWO CHANNEL STEREO MINI CLASS-D 3W+3W AUDIO AMPLIFIER
In stock
₹30.00 (Incl. GST)Specifications:
Operating Voltage Range: 5V – 5.5V.
Max Gain: 24 dB
Current Handling Capacity: 8 mA
Efficiency: 87 %.
Amplifier: IC PAM 8403.
Load Can direct drive 4 or 8 ohm small speakers.
TDA2030A 6-12V 18W Audio Amplifier Module
In stock
₹71.00 (Incl. GST)Specifications :
Amplifier IC : TDA2030A
Operating Voltage (VDC) : 6~12
Audio Output : 18W max.
Length (mm) : 32
Width (mm) : 22
Height (mm) : 23
Weight (gm) : 12
TPA3116 2.1 50Wx2+100W Bluetooth CSR4.0 Class D Power Amplifier
In stock
₹2,360.00 (Incl. GST)Working mode: Class D
Operating voltage: DC18V to DC24V
Rated output power: 100W + 2 x 50W
Quiescent current: 60mA
Work efficiency: 90%
TPA3116D2 12 to 24V DC Dual Channel 2 x 80W Audio Power Amplifier
In stock
₹697.00 (Incl. GST)Chip type: TPA3116D2
Chip protection: overvoltage under-voltage superheat DC detection short circuit
Supply voltage: DC 12V to 24V
Output power: 80W X 2
Power efficiency > 90%
Number of channels: double channel output
Module Size: 60 x 32 x 14mm
TPA3118 PBTL Mono Digital Amplifier Board 1X60W 12V 24V Power Amplifier Module
In stock
₹144.00 (Incl. GST)Specifications:
Working Voltage: DC 8-24V
Power Output: 60W
Applicable Speaker Impedance: 4-8 Ω
The sound quality is very good by using this module.
Mono digital audio power amplifier chip.
High output and low power consumption.
