Showing 181–192 of 199 results
Sensors/Modules
Filter by brands
AdafruitAdafruit 1- IDEAL 1
- OMRON 4
- POSH 1
TTP224 4-way Capacitive Touch Switch Module
In stock
₹75.00 (Incl. GST)Onboard TTP224 capacitive touch sensor IC 4 keys
4 board-level status indicator
Working voltage: 2.4V-5.5V
Advanced Pins breakout, so that the output mode and working mode selectable.
Low power selection
Turbidity Sensor with Module
In stock
₹571.00 (Incl. GST)Specifications:
Operating Voltage: 5VDC.
Current: 30mA (MAX).
Operating temperature: -30 ° C to 80 ° C.
Compatible with Arduino, Raspberry Pi, AVR, PIC, etc.
Measuring Range: 0 ~ 1000 NTU.
U-blox NEO-6M GPS Module with EPROM
In stock
₹259.00 (Incl. GST)Specifications:
Standalone GPS receiver
Anti-jamming technology
UART Interface at the output pins (Can use SPI ,I2C and USB by soldering pins to the chip core)
Under 1 second time-to-first-fix for hot and aided starts
Receiver type: 50 Channels – GPS L1 frequency – SBAS (WAAS, EGNOS, MSAS, GAGAN)
Time-To-First-fix: For Cold Start 32s, For Warm Start 23s, For Hot Start <1s
Maximum navigation update rate: 5Hz
Default baud rate: 9600bps
EEPROM with battery backup
Sensitivity: -160dBm
Supply voltage: 3.6V
Maximum DC current at any output: 10mA
Operation limits: Gravity-4g, Altitude-50000m, Velocity-500m/s
Operating temperature range: -40ºC TO 85°C

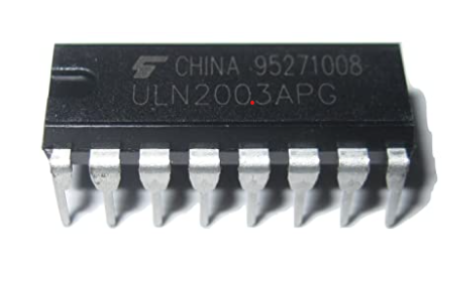

ULN2003 IC
In stock
₹11.00 (Incl. GST)Features:
Contains 7 high-voltage and high current Darlington pairs
Each pair is rated for 50V and 500mA
Input pins can be triggered by +5V
All seven Output pins can be connected to gather to drive loads up to (7×500mA) ~3.5A.
Can be directly controlled by logic devices like Digital Gates, Arduino, PIC etc
Available in 16-pin DIP, TSSOP, SOIC packages
Ultrasonic sensor
In stock
₹66.00 (Incl. GST)Specifications:
Working Voltage : 5V (DC)
Output Signal : 5V
Sensor Angle : Less than 15 Degrees
Detection Distance : 2 cm to 450 cm
Input Trigger Signal : 10µs TTL impulse
Echo Signal : Output TTL PWL Signal
Theoretical Measuring Distance : 2cm to 450cm
Practical Measuring Distance : 2cm to 80cm
Accuracy : 3mm
Measuring angle covered : <15°
Operating Current : <15mA
Operating Frequency : 40Hz
High sensitivity ultrasonic range sensor
Works with Arduino board
US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
In stock
₹198.00 (Incl. GST)Voltage: DC 2.4V – 5V
Average Current Consumption: < 2mA
Output mode: level or UART
Detection distance: 2cm – 450cm
Working temperature: -20°C to +70°C
It features temperature compensation.
Provides two output modes level or UART.
USB HOST SHIELD ADK Arduino Compatible
Out of stock
₹641.00 (Incl. GST)Specifications:
Works with standard (dual 5/3.3V) and 3.3V-only (for example, Pro Arduino) boards.
Complies with USB Specification Revision 2.0 (Full-Speed 12Mbps Peripheral, Full-/Low-Speed 12Mbps/1.5Mbps Host)
Compatible with Mass storage devices, such as USB sticks, memory card readers, external hard drives (FAT32 Type File System – Mega Arduino only).
The following device classes are currently supported by the shield:
HID devices, such as keyboards, mice, joysticks, etc.
game controllers – Sony PS3, Nintendo Wii, Xbox360
USB to serial converters – FTDI, PL-2303, ACM, as well as certain cell phones and GPS receivers
ADK-capable Android phones and tables
Digital cameras – Canon EOS, Powershot, Nikon DSLRs and P&S, as well as generic PTP
Mass storage devices, such as USB sticks, memory card readers, external hard drives
Bluetooth dongles.
Vibration sensor module alarm Motion sensor module vibration switch SW-420
In stock
₹58.00 (Incl. GST)Specifications:
Operating Voltage: 3.3V to 5V DC
Operating Current: 15mA
Using SW-420 normally closed type vibration sensor
LEDs indicating output and power
It uses wide voltage LM393 comparator
Output format: digital switching output (0 and 1)
VL53L0X TOF Based LIDAR Laser Distance Sensor
In stock
₹175.00 (Incl. GST)Operating voltage: 2.6V to 5.5V
Supply Current: 10mA
Communication: I2C protocol
940 nm safe and long-ranging laser VCSEL
In-built 2.8V linear voltage regulator
Voltage Sensor AC ZMPT101B
In stock
₹96.00 (Incl. GST)Specifications:
Output Signal: Analog 0-5V
Operating Voltage: DC 5V-30V
Measure within 250V AC
Rated input current: 2mA
Size: 49.5 mm x 19.4 mm
Operating temperature : 40ºC ~ + 70ºC
W25Q32JVSSIQ SMD IC – 32M-bit Serial Flash Memory (SOIC-8)
In stock
₹126.00 (Incl. GST)Specifications:
Manufacturer: Winbond
Memory Type: Serial NOR Flash
Memory Size: 32M-bit (4MB)
Interface Type: SPI (Standard/Dual/Quad)
Supply Voltage: 2.7V – 3.6V
Operating Frequency: Up to 133 MHz
Package Type: SOIC-8
Temperature Range: -40°C to +85°C
Features: Low power consumption, fast erase/write operations, uniform 4KB sectors
Water Flow Sensor YF-S401 Flowmeter 0.3-6L/min 3.5mm White
In stock
₹230.00 (Incl. GST)Specifications:
Model: YF-S401
Working Voltage: DC 5V~24V
Maximum Working Current: 15mA @ 5V DC
Flow Rate Range: 0.3~6L/min
Outer diameter: 7mm
Inner Diameter: 4mm
Load Capacity: ≤10mA (DC 5V)
Operating Temperature: ≤80℃
Liquid Temperature: ≤120℃
Operating Humidity: 35%-90%RH
Water Pressure: ≤0.8MPa
