Note: Image shown is a representation only.

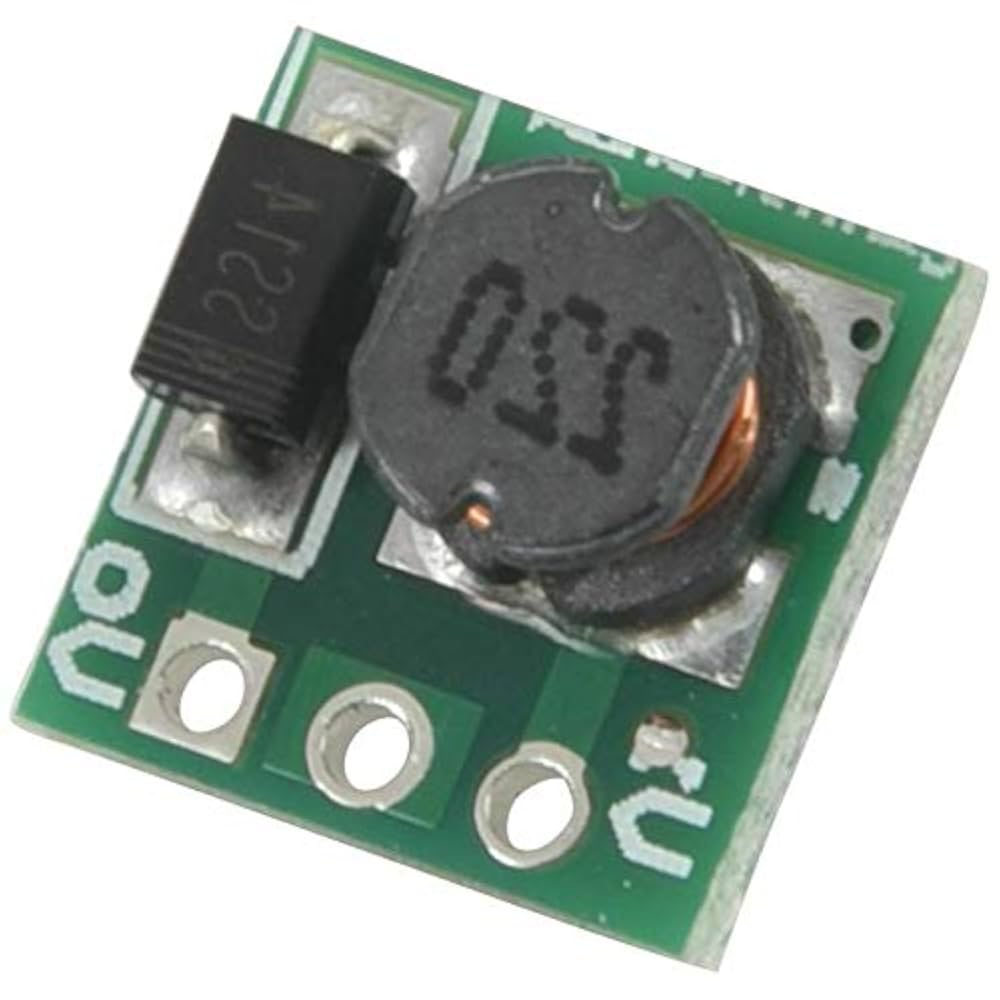

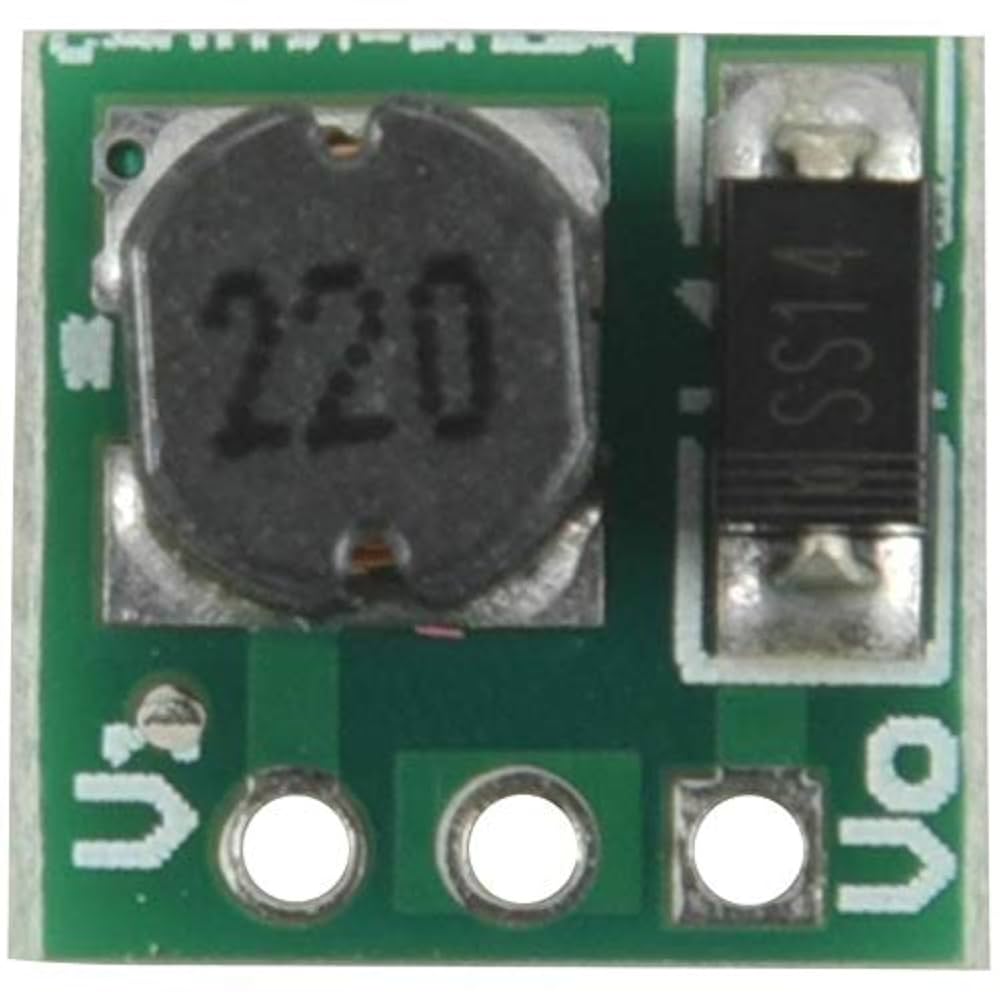

1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V to 5V DC-DC DC Boost Converter Module Step Up Board
Input voltage 1.5-4.2V output voltage 5V
Maximum output current: 500 mA
Starting voltage 0.8V, output current 10mA
Operating frequency: 150KHZ
Typical conversion efficiency: 85%
₹48.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:

1.5V 1.8V 2.5V 3V to 4.2V DC-DC DC Boost Converter Module Step Up Board is the voltage boost converter module provides 5V DC stable voltage output at various input range between 1.5V to 4.2V. This small tiny circuit boosts the voltage level and provides the amplified stabilized 5V output. For the different input range, it consumes a different amount of current to produce a balanced output.
While using this module one must comply with the following conditions
1. Input voltage cannot be greater than the nominal voltage, otherwise, it will burn out the module
2. Input power must be greater than the output power, otherwise, the output voltage will be less than the nominal voltage.
3. Output load cannot be greater than the nominal load, otherwise, the output voltage will be less than the nominal voltage.
DC-DC boost converter modules operate at a frequency of 150KHZ, the typical conversion efficiency is 85%
Features:
Small in size.
Light-weight.
Different power consumption for different voltages.
