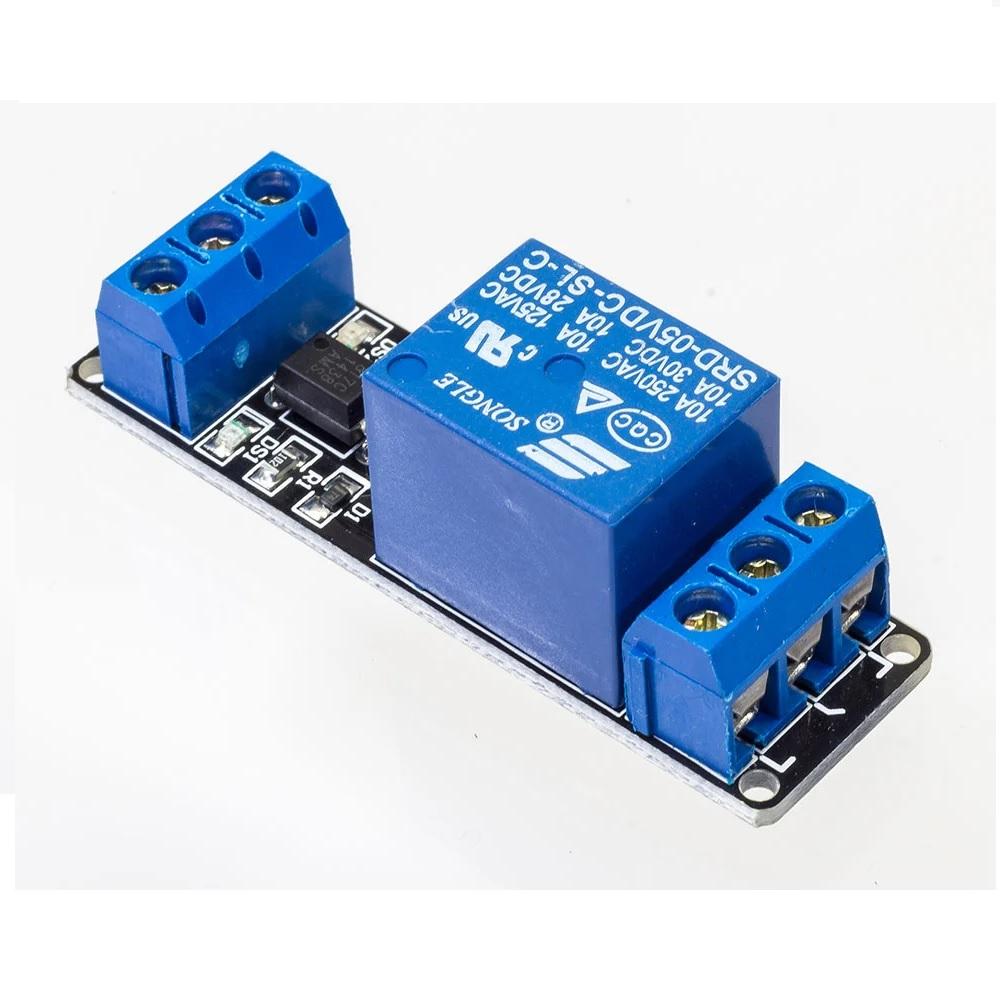

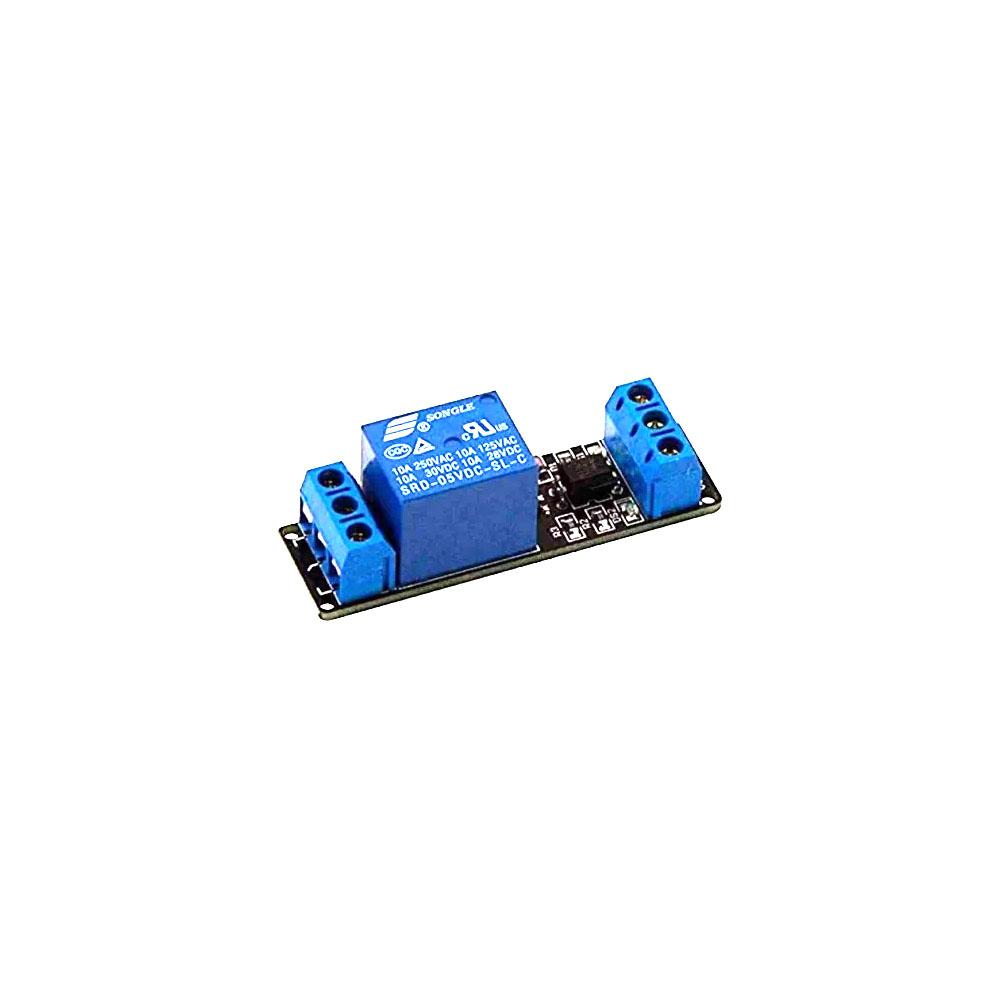

1 channel 5V 10A Relay Control Board Module with Optocoupler

This 1 channel 5V 10A relay control board module with optocoupler modules is compliant with international safety standards, control and load areas isolation trenches it has a single relay a genuine.

The inputs of 1 Channel 5V 10A Relay Module are isolated to protect any delicate control circuitry.

The power supply and relay instructions, lit, a disconnect are off. The input signal, signal, common Terminal and start conducting. It can be used as a single chip module for appliance control and work with both DC or AC signals where you can control the 220V AC load.

Note: On the high level and low level-triggered mode, friends who do not understand, have a look
High-level trigger refers to the signal voltage between input and trigger, can be understood as a signal input with VCC cathode short-circuit triggered a way;
Low-level trigger refers to the signal voltage between the input terminal and Earth OV trigger, can be understood as a signal input terminal and the GND negative electrode short circuit triggered is a way 1-channel relay module connection.
Features :
High impedance controller pin
Pull-down circuit for the avoidance of malfunction
One normally closed contact and one normally open contact
Triode drive, increasing relay coil
Power supply indicator lamp
Control indicator lamp
With 4 fixed screw holes, hole diameter 3.1mm, convenient installation, and fixation
