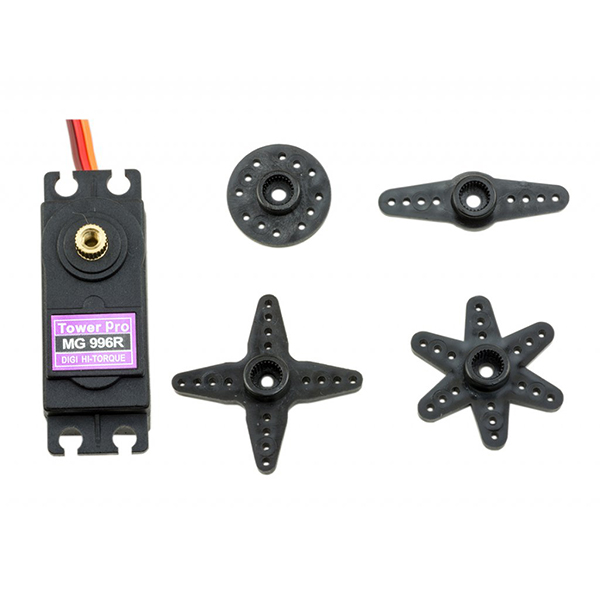

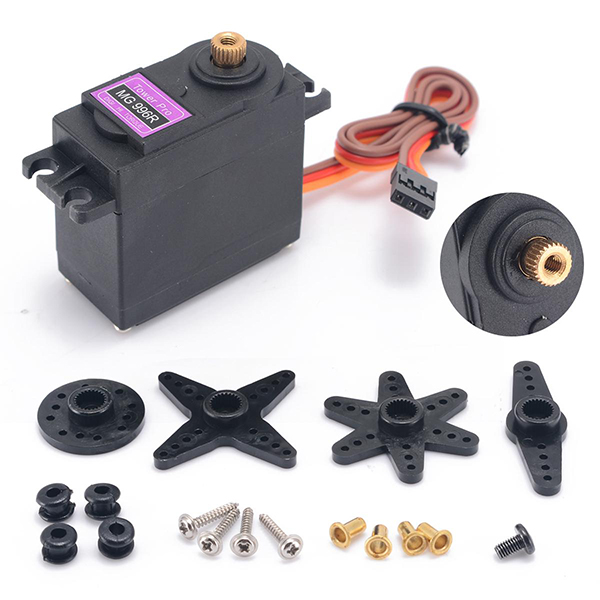

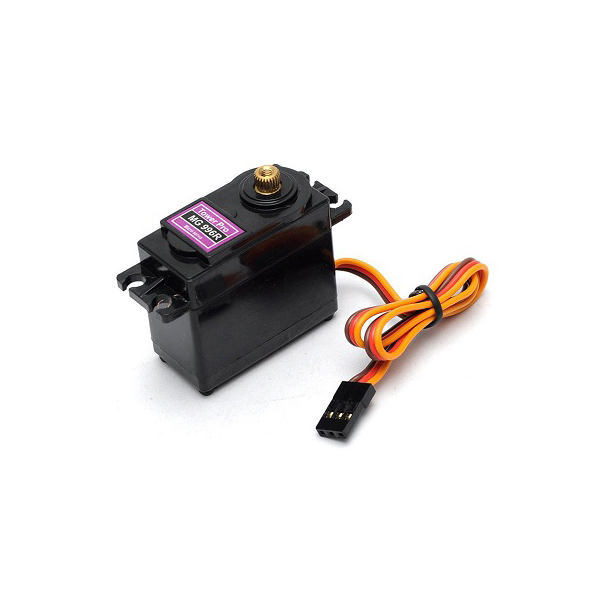

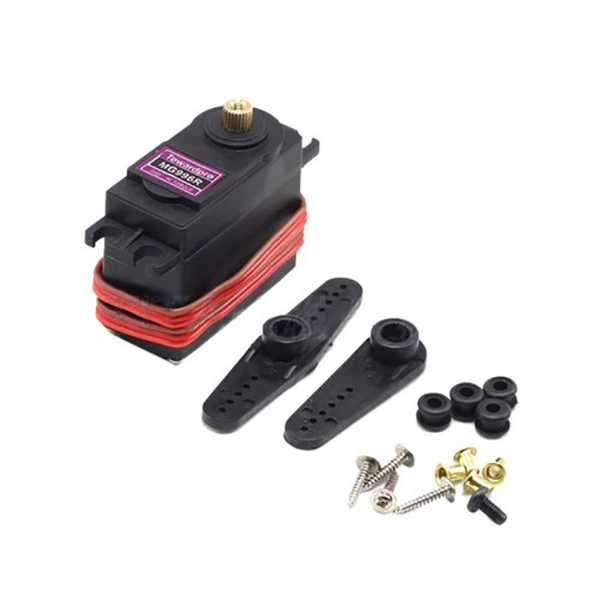

10 kg.cm 180 Deg MG996R Servo Motor
Specifications:
Operating voltage: 4.8 V a 7.2 V
Running Current 500 mA – 900 mA (6V)
Stall Current 2.5 A (6V)
Temperature range: 0 °C – 55 °C
Control System: Analog
Operating Angle: 180degree
Required Pulse: 900us-2100us
Direction: CCW
Operating speed: 0.17 s/60º (4.8 V), 0.14 s/60º (6 V)
Dead band width: 5 μs
Wire length: 30cm
Connector: 3 pin ‘S’ type female header
Weight: 55 g
Dimension: 40.7 x 19.7 x 42.9 mm approx.
Stall torque: 9.8 kgf·cm (4.8 V ), 11 kgf·cm (6 V)
₹275.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
This Continuous Rotation MG996R has the ability to rotate continuously in 180 degrees. It makes this servo motor perfect for robotics or even the rotation of camera sliders!
Wire Description:
RED – Positive
Brown – Negative
Orange – Signal
