100MM, 15mm/S, 64N, 12V Mini Linear Actuator
100MM, 15mm/S, 64N, 12V Mini Linear Actuator - Image 2
100MM, 15mm/S, 64N, 12V Mini Linear Actuator - Image 3
100MM, 15mm/S, 64N, 12V Mini Linear Actuator - Image 4
100MM, 15mm/S, 64N, 12V Mini Linear Actuator - Image 5

100MM, 15mm/S, 64N, 12V Mini Linear Actuator

SKU: Display

Description

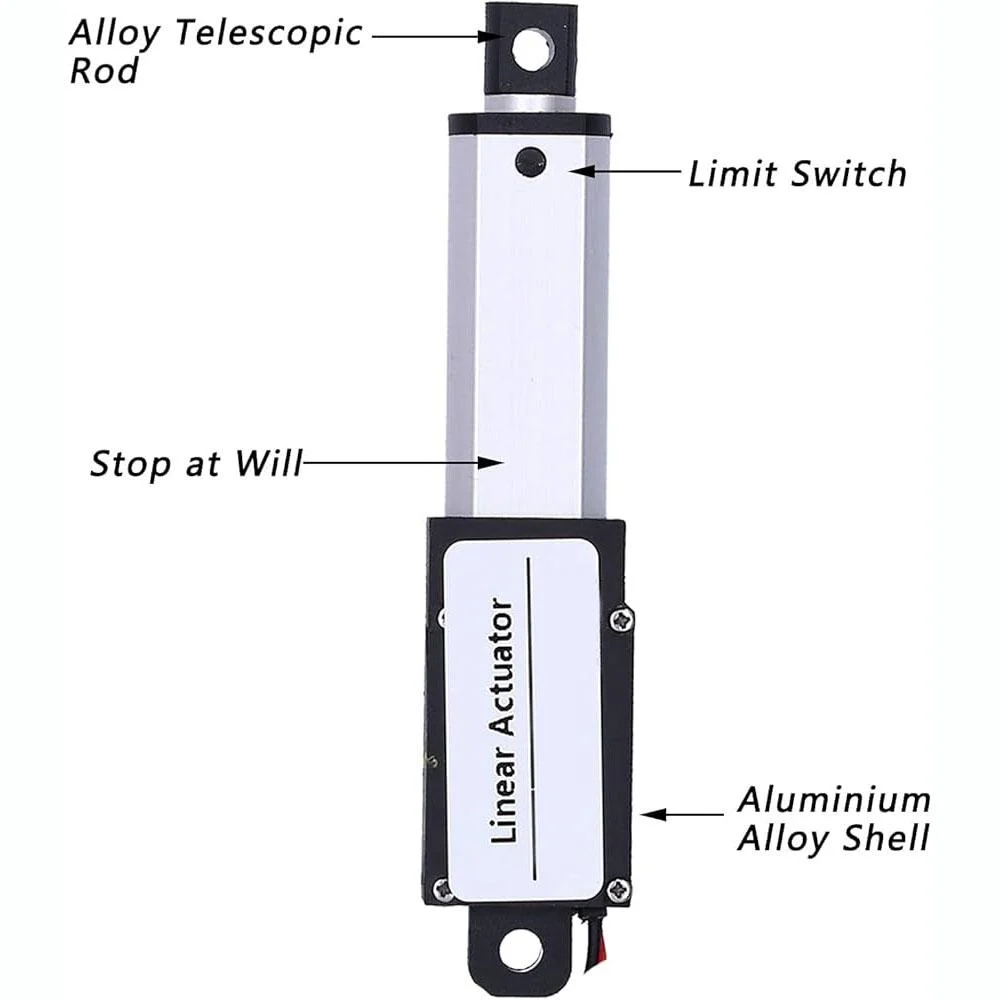

is compact mini linear actuator offers a 100mm stroke, delivering precise motion at a speed of 15mm/s. With a force capacity of 64N, it is ideal for small-scale automation projects where space is limited but reliability is crucial. Operating on a 12V DC power supply, it is suitable for a variety of applications, including robotics, medical devices, and home automation.

Features:

Stroke Length: 100mm
Speed: 15mm/s for smooth and controlled movement
Force: 64N, providing reliable lifting and pushing power
Voltage: 12V DC for efficient energy consumption
Compact Design: Ideal for applications with limited space
Durability: Built to last with high-quality materials

₹3,149.00 (Incl. GST)

Need Help or Support?
Click Here

Free Delivery on all
orders above ₹1999

Unbeatable prices and monthly deals.

  • Didn’t find what you are looking for?
Let Us Know

CONTACT US

Have a question or feedback? Fill out the form below, and we’ll get back to you as soon as possible.

    Payment Methods:

    Description

    Specifications:

    Input Voltage: 12V DC
    Stroke Length: 100mm
    Speed: 15mm/s
    Max Load Capacity: 64N
    Duty Cycle: 25% (max 1 minute continuous use, 3 minutes rest)
    Operating Temperature: -20°C to +65°C
    Protection Class: IP54 (resistant to dust and splashing water)
    Connection: 2-wire configuration for easy installation
