28BYJ48 5V Stepper Motor
Specifications:
Rated voltage: 5V DC
Reduction Ratio: 64:1
Step Angle: 5.625° /64
Frequency: 100Hz
Self-positioning Torque: >34.3mN.m
Friction torque: 600-1200 gf.cm
Pull in torque: 300 gf.cm
₹87.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Have a question or feedback? Fill out the form below, and we’ll get back to you as soon as possible.
Payment Methods:
Description

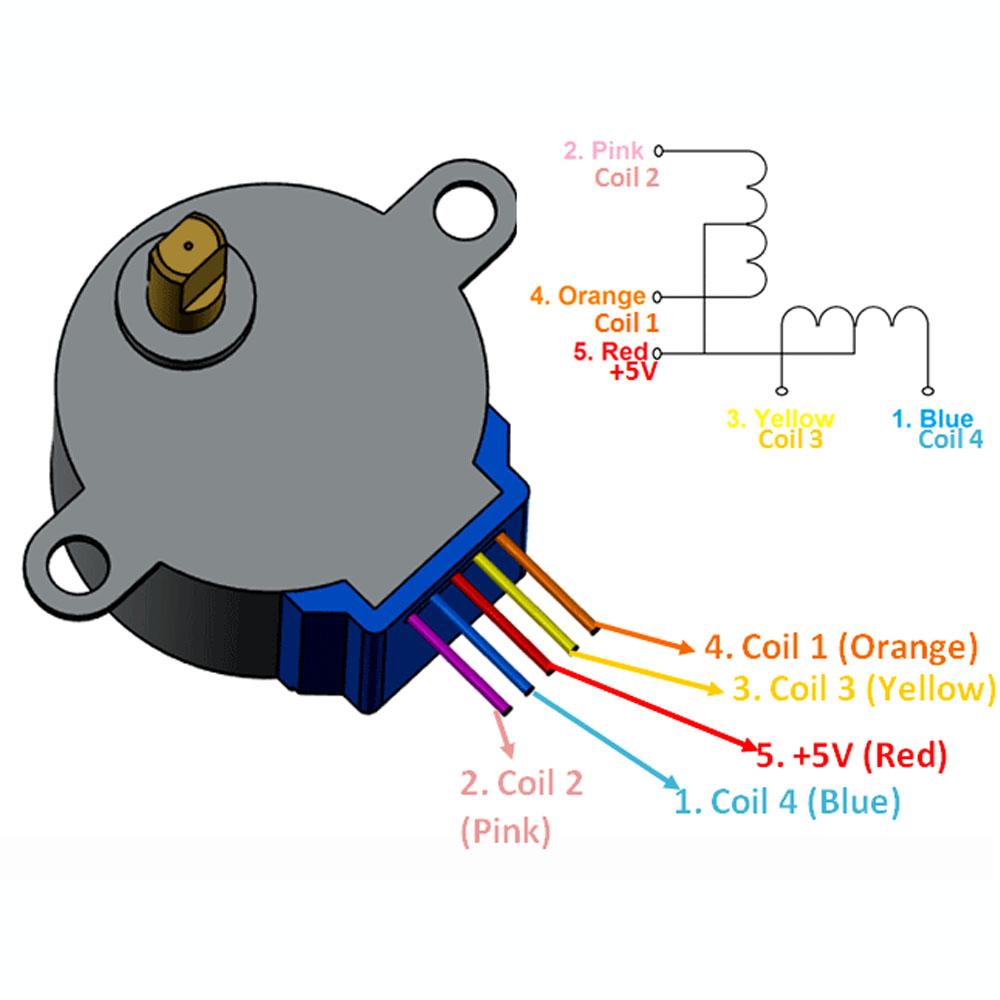

This 5V DC 28BYJ-48 Stepper Motor is small, inexpensive and high-quality geared step motor.The motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor which has 5-wires
