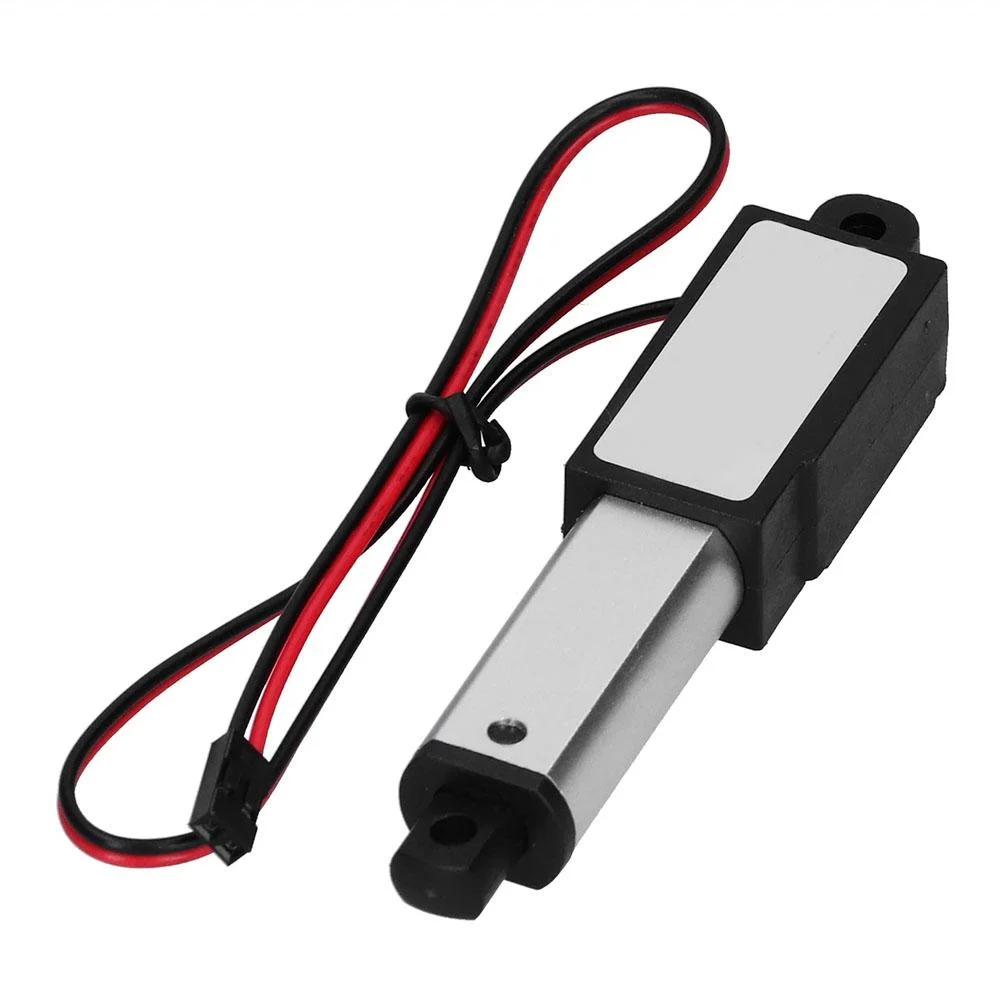

30MM, 15mm/S, 64N, 6V Mini Linear Actuator
Specifications:
Input Voltage: 6V DC
Stroke Length: 30mm
Speed: 15mm/s
Max Load Capacity: 64N
Duty Cycle: 25% (max 1 minute continuous use, 3 minutes rest)
Operating Temperature: -20°C to +65°C
Protection Class: IP54 (resistant to dust and splashing water)
Connection: 2-wire configuration for easy installation
₹2,500.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
Description
is compact mini linear actuator offers a 30mm stroke, delivering precise motion at a speed of 15mm/s. With a force capacity of 64N, it is ideal for small-scale automation projects where space is limited but reliability is crucial. Operating on a 6V DC power supply, it is suitable for a variety of applications, including robotics, medical devices, and home automation.
Features:
Stroke Length: 30mm
Speed: 15mm/s for smooth and controlled movement
Force: 64N, providing reliable lifting and pushing power
Voltage: 6V DC for efficient energy consumption
Compact Design: Ideal for applications with limited space
Durability: Built to last with high-quality materials
