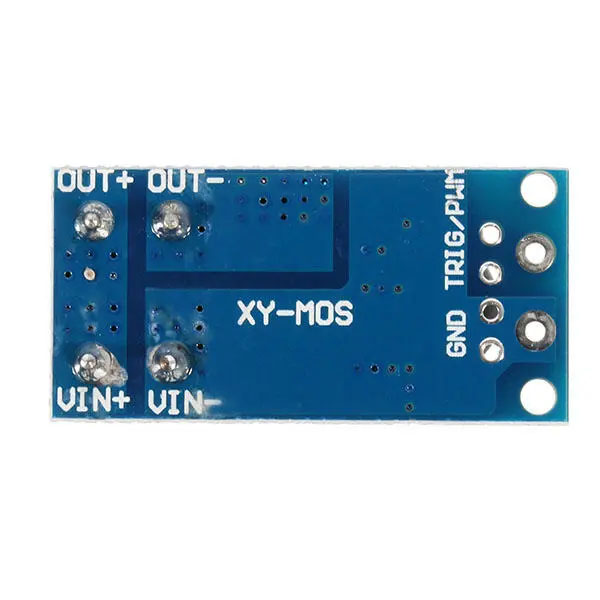

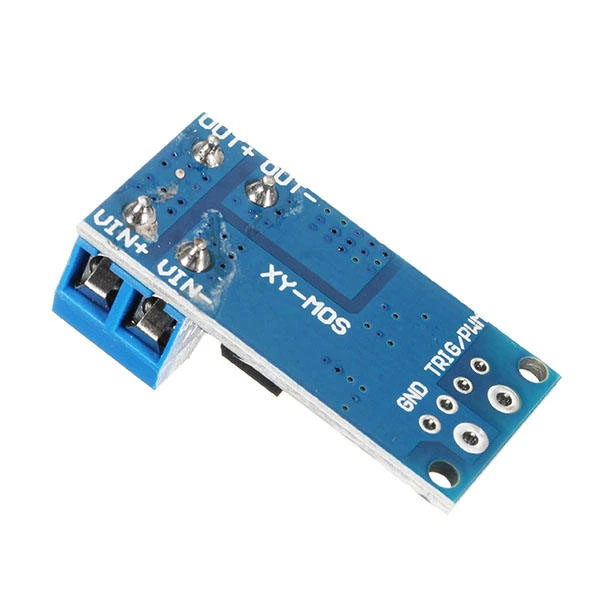

5-36v Switch Drive High-power MOSFET Trigger Module
Specifications:
Operating Voltage: 5V to 36V DC.
Trigger Voltage:
Low-level trigger: 0V to 2.5V
High-level trigger: 3V to 24V
MOSFET Type: Typically N-channel.
Maximum Load Current: Depends on the specific MOSFET used, often up to 10A or higher.
Power Dissipation: Varies, but ensure proper heat sinking for high-power applications.
Switching Frequency: Can handle high frequencies, often in the range of 10kHz to 100kHz.
Control Signal Isolation: Optical isolation or separate ground to protect the control circuit.
Dimensions: Varies, but commonly compact for integration into larger systems (e.g., 50mm x 26mm).
Protection Features: May include overcurrent, overvoltage, and thermal protection, depending on the module design.
Typical Applications: Motor control, LED lighting, heater control, and other high-power switching applications.
₹37.00 (Incl. GST)
1 in stock
1 in stock
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:

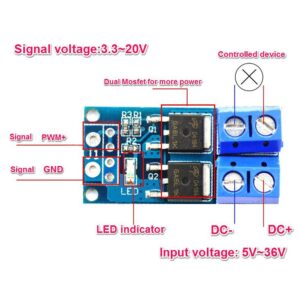

Module Highlights:
The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment
Wide voltage, the perfect support for PWM
Easily control high power devices
Product specifications and applications:
Operating Voltage: DC 5V – 36V;
The trigger source: digital high-low (DC3.3V – 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support.
output capacity: DC DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A.
Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., you can enter PWM, motor speed control, lamp brightness. Availability: unlimited switch; Operating temperature: -40-85 ;
Size:3.4*1.7*1.2cm
Features:
Adopt Double MOS Parallel Connection Active Output
Wide Voltage: support PWM
Can Achieve High Power Equipment Control
