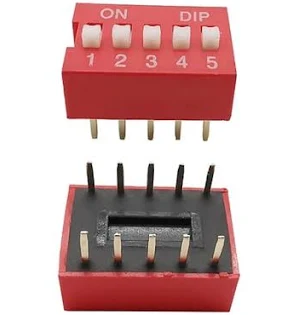

5-Way DIP Switch – 5 Position Dual In-Line Slide Switch for PCB
Specifications:
Type: 5-Position DIP (Dual In-Line Package)
Switch Type: SPST (Single Pole Single Throw)
Number of Switches: 5 individual ON/OFF
Contact Rating: 24V DC / 25mA
Pitch: 2.54 mm standard
Actuator Type: Slide switch
Mounting Type: Through-Hole PCB mount
Body Color: Red / Blue (varies by model)
Insulation Resistance: ≥100 MΩ
Operating Temperature: -25°C to +85°C
Material: Flame-retardant plastic housing
Durability: Over 2,000 operations per switch
₹15.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
The 5-Way DIP Switch is a compact five-position slide switch designed for ON/OFF control, logic selection, and device address configuration in electronic circuits.
It includes 5 individual SPST switches in a single DIP (Dual In-Line Package), allowing easy manual programming without software.
Ideal for microcontroller projects, Arduino setups, test boards, and industrial control systems, this switch ensures long life, stable contact, and reliable performance on PCB boards.
Applications:
Microcontroller and Arduino programming
Address and data configuration in communication devices
Logic control settings for embedded systems
Mode selection for test, debug, and automation circuits
DIY electronics and industrial control projects
