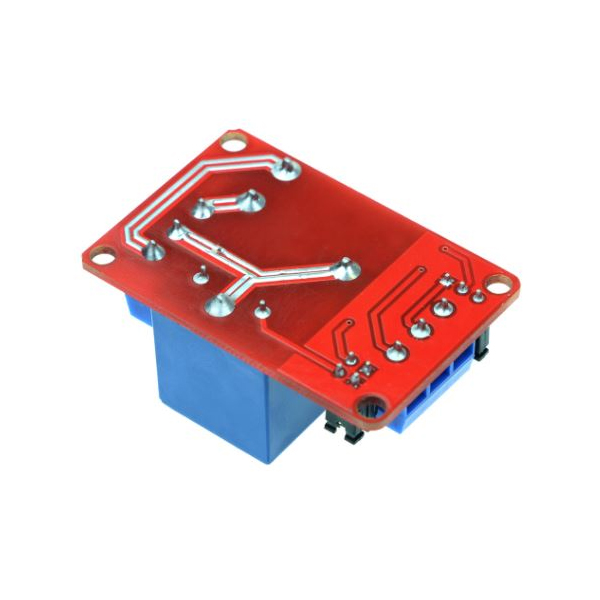

5V 1 Channel Single Relay Module 30A Power Failure Relay
Specifications:
Voltage version: 5V
The static current: 5mA
Working current: 190mA
Trigger current: 2-4mA
The module can be set high level or low-level trigger by the jumper
Rated current of the interface is 16A
₹153.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
The Songle Single-channel 5V 30A Relay Module power failure relay is a 1-channel relay module board with LED indicators, It can be controlled by microcontrollers such as Arduino, AVR, PIC, ARM any other microcontroller operating at 5V.
The user can choose the relay control level, can be a high level off, also can be low level and off. The Songle Single-channel 5V 30A Relay Module Power Failure Relay contains a limited flow resistance, can directly use the power supply is negative control, you can also use the MCU I/O control.
The relay module equips a power indicator light (red), 1 road relay status indicator light (blue). With this relay, you can easily control electrical appliances, lights, etc. Fault-tolerant design, even if the control line is broken, the relay will not move.
Module interface :
DC+: DC power supply positive pole
DC-: DC power supply negative pole
IN: signal triggering pin
JD+: relay control voltage positive
JD-: relay control voltage negative
