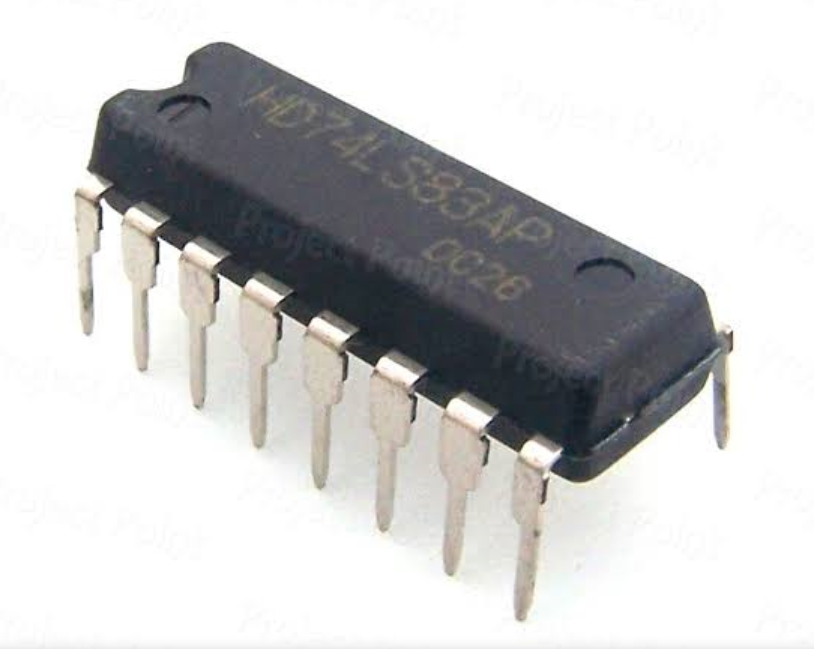

7483 4-bit Binary Full Adder Ic 74LS83

The 74LS83 is a high speed 4-bit fuller Adder IC with carry out feature. The IC has four independent stages of full adder circuits in a single package. It is commonly used in applications where arithmetic operations are involved.

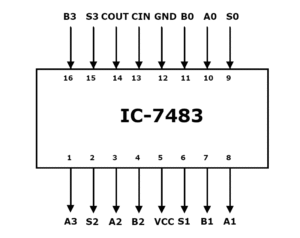

The SN54/74LS83A is a high-speed 4-Bit binary Full Adder with internal carry lookahead. It accepts two 4-bit binary words (A1–A4, B1–B4) and a Carry Input (C0). It generates the binary Sum outputs ∑1–∑4) and the Carry Output (C4) from the most significant bit. The LS83A operates with either active HIGH or active LOW operands (positive or negative logic). The SN54/74LS283 is recommended for new designs since it is identical in function with this device and features standard corner power pins.

Applications
High-Speed Arithmetic operations
Miniature calculators
Counters
Simple logic control designs
