74HC32 Quad 2-Input OR Gate IC | High-Speed CMOS Logic
74HC32 Quad 2-Input OR Gate IC | High-Speed CMOS Logic - Image 2

Note: Image shown is a representation only.

74HC32 Quad 2-Input OR Gate IC | High-Speed CMOS Logic

SKU: D004

Specification:

Part Number: 74HC32

Function: Quad 2-Input OR Gate

Logic Type: OR

Number of Gates: 4

Logic Family: HC

Supply Voltage Range: 2V to 6V

Propagation Delay: ~8 ns at 5V

Operating Temperature: -40°C to +85°C

Output Type: CMOS / TTL Compatible

Package Type: DIP-14 / SOIC-14

Mounting Type: Through Hole / SMD

RoHS Compliant: Yes

₹20.00 (Incl. GST)

Need Help or Support?
Click Here

Free Delivery on all
orders above ₹1999

Unbeatable prices and monthly deals.

  • Didn’t find what you are looking for?
Let Us Know

CONTACT US

Have a question or feedback? Fill out the form below, and we’ll get back to you as soon as possible.

    Payment Methods:

    Description

    7432 IC is member of 74xxx series gate ICs and has the functionality of OR gate or function. It will give high if either all or any of the input is high. 7432 has 4 OR gates of 2 inputs in 1 package. The internal gates in the ICs are made of Schottky Transistor of low power. OR gate finds Maximum of 2 binary digits.

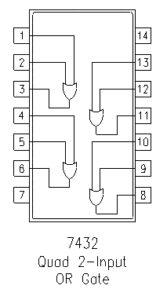

    Pin Description

    First input of gate 1
    Second input of gate 1
    Output of gate 1
    First input of gate 2
    Second input of gate 2
    Output of gate 2
    GND
    Output of gate 3
    First input of gate 3
    Second input of gate 3
    Output of gate 4
    First input of gate 4
    Second output of gate 4
    VCC
