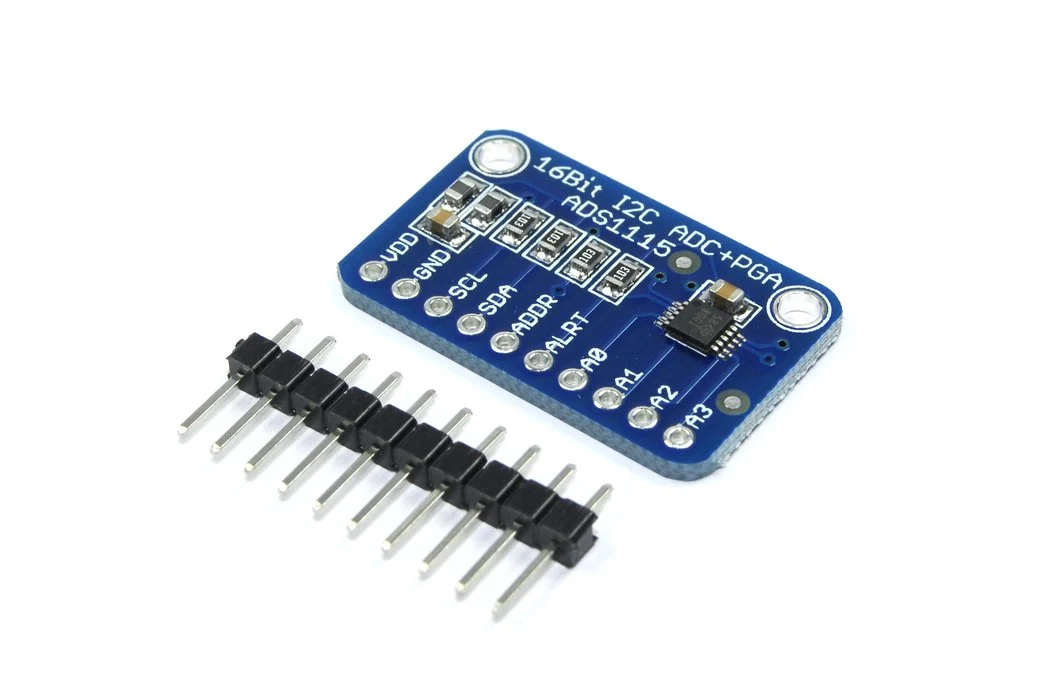

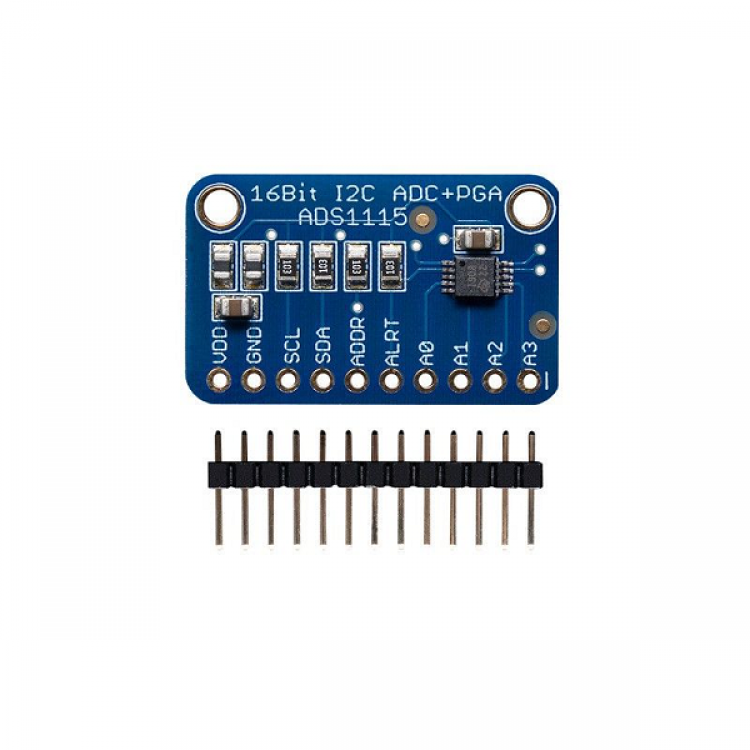

ADS1115 16 Bit I2C ADC Analog to Digital Converter Module
Specifications:
Single-shot mode: automatically turns off
Low current consumption: Continuous mode 150 μA
Wide supply voltage range: 2.0V to 5.5V
Interfacing is done via I2C
Programmable data rate: 8SPS to 860SPS
Low drift internal voltage reference
Internal Oscillator
Internal PGA up to 860 samples per second (SPS)
Four single-ended or two differential inputs (ADS1115)
Operating temperature: -40 ° C to + 140 ° C
Programmable comparator
₹164.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
ADS1115 16-Bit ADC – 4 Channel with Programmable Gain Amplifier is mostly used for microcontrollers project which needs an analog-to-digital converter or when you want a higher-precision ADC. ADS1115 16-Bit ADC- provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-end input channels or two differential channels.
Additionally, ADC also includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and it’s super easy to use. It is a great general-purpose 16-bit converter.
The ADS1115 chip is fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1115’s connect on a single 2-wire I2C bus for 16 single-end inputs.
