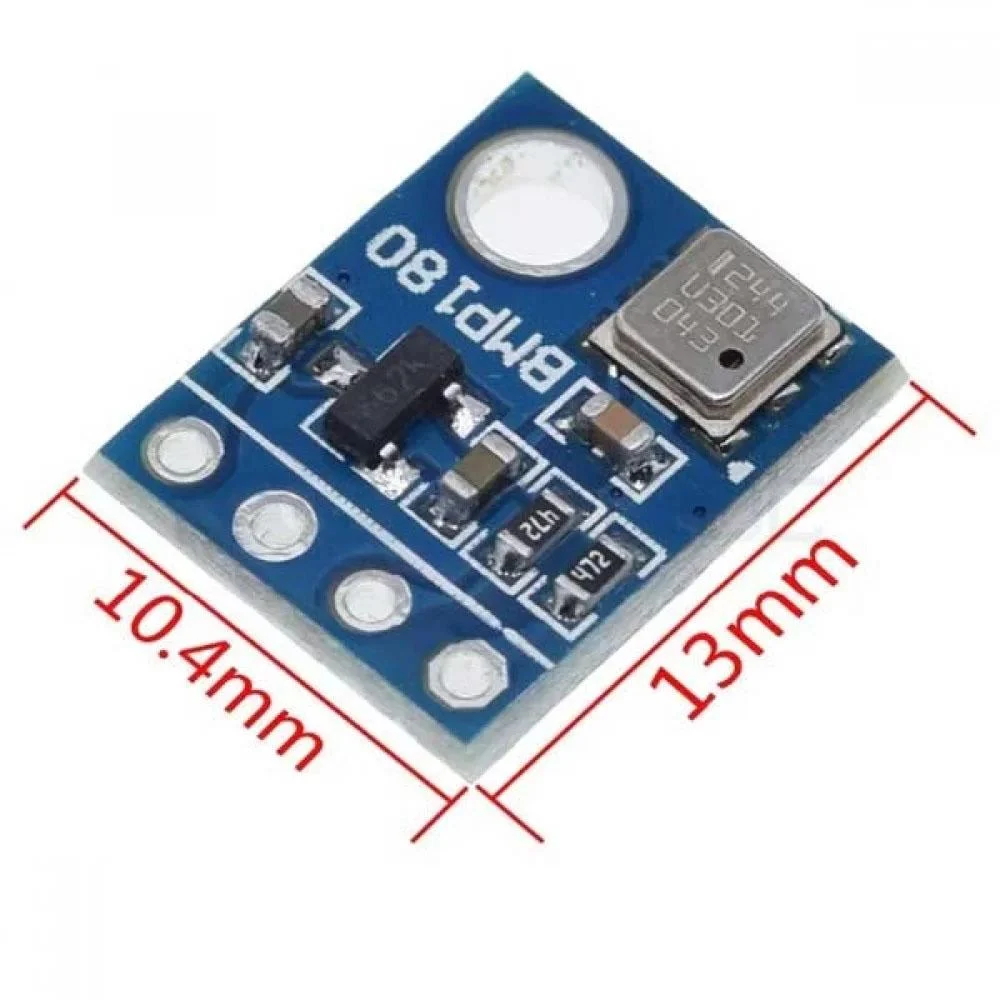

BMP 180 PRESSURE SENSOR
Specifications:
Vin: 3 to 5VDC
Logic: 3 to 5V compliant
Pressure sensing range: 300-1100 hPa (9000m to -500m above sea level)
Up to 0.03hPa / 0.25m resolution
-40 to +85°C operational range, +-2°C temperature accuracy
This board/chip uses I2C 7-bit address 0x77.
Compatible with Andriod Board.
₹236.00 (Incl. GST)
50 in stock
50 in stock
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
Description
BMP180 is one of the sensors of the BMP XXX series. They are all designed to measure Barometric Pressure or Atmospheric pressure. BMP180 is a high precision sensor designed for consumer applications. Barometric Pressure is nothing but the weight of air applied to everything. The air has weight and wherever there is air its pressure is felt. BMP180 sensor senses that pressure and provides that information in digital output.
Also, the temperature affects the pressure and so we need temperature compensated pressure reading. To compensate, the BM180 also has a good temperature sensor.
