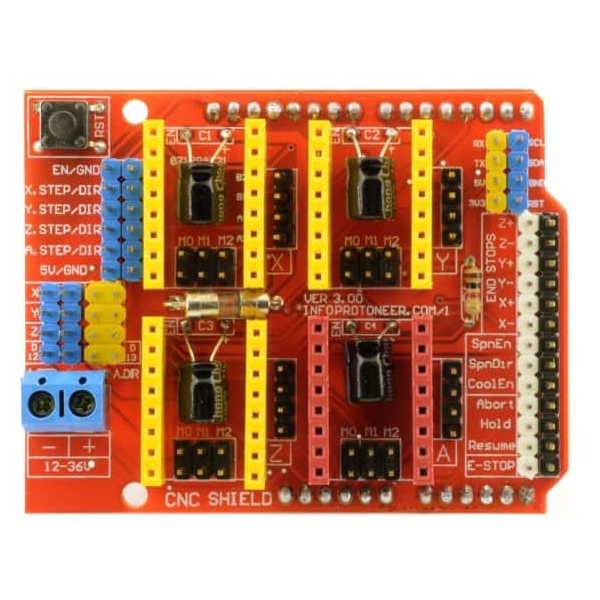

CNC Shield V3 Arduino Uno Mega Compatible
Specifications:
Interfaces with Arduino Uno.
4 stepper motor driver outputs, 3 Axis + 1 Slave.
Compatible with Pololu A4988 and DRV8825 stepper drivers and others.
6 Limit switch inputs.
I2C and UART outputs.
Additional connections available for Spindle Control, Stop/Start & Emergency Buttons.
Fully tested after assembly.
₹121.54 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
The Arduino CNC Shield is the most popular low-cost solution to control a CNC Machine. Interfacing with an Arduino Uno, it expands the Arduino platform to provide all the necessary features for a CNC Machine: 4 Driver Outputs, Endstop Pins, Spindle Pins & Emergency Pins.
This CNC Shield is manufactured using high quality components. All the design files are available online, they can be learnt from, tweaked and improved. The board is Plug & Play 100% Compatible with GRBL Firmware.
If you want to build a CNC Machine that will be incredibly reliable and can run for hours on ends, then our Arduino CNC shield is a good option for you.
This expansion board as a driver expansion board, can be used for engraving machines, 3D printers.
It is a total of four slots, can drive four A4988 stepper motor. Each road stepper motors only need two IO ports. In other words, six IO ports can be well managed three stepper motors. Very convenient to use.
UNO for Arduino module IO port correspondence introduction
