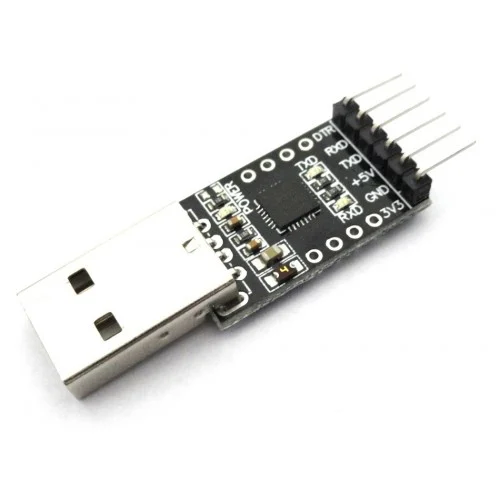

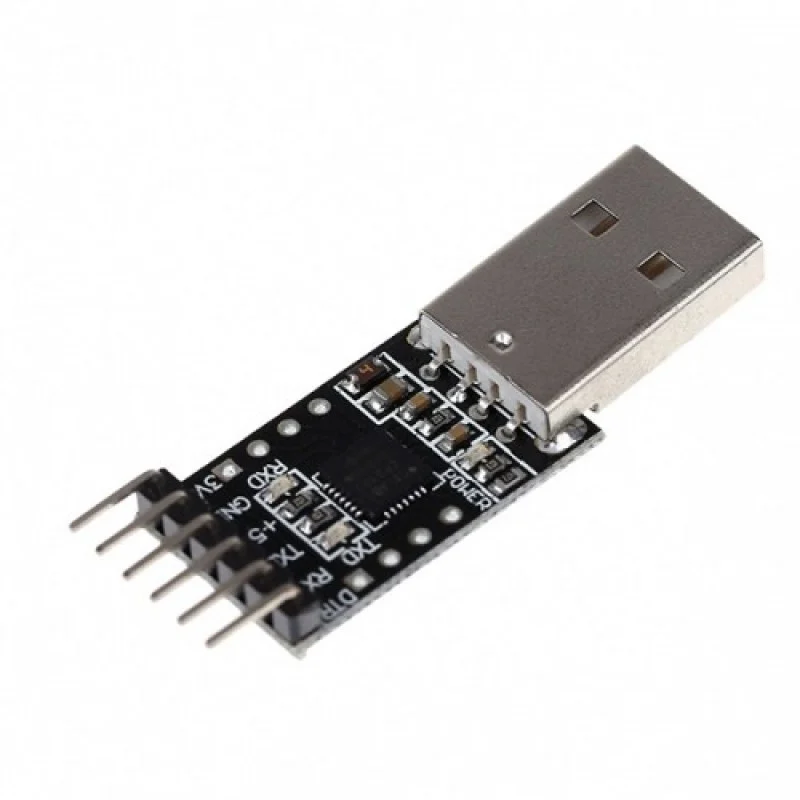

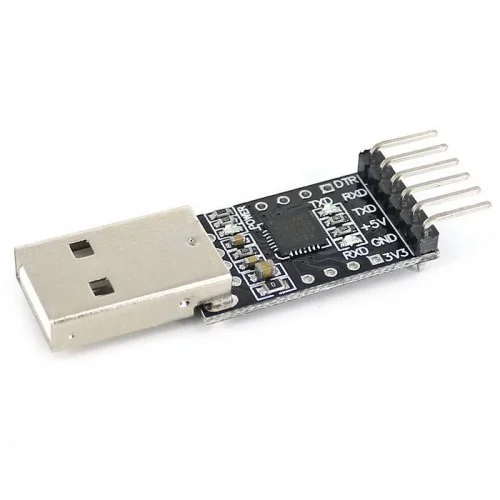

CP2102(6-pin) USB 2.0 to TTL UART serial converter
Specifications:
Stable and reliable chipset CP2102.
USB specification 2.0 compliant with full-speed 12Mbps.
Standard USB type A male and TTL 6pin connector.
All handshaking and modem interface signals.
Baud rates: 300 bps to 1 Mbps.
Byte receives buffer; 640 bytes transmit buffer.
Hardware or X-On/X-Off handshaking supported.
Works with existing COM port PC Application
₹110.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
Description
This USB To TTL module is a great tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB bus and will appear as a standard COM port. This CP2102 doesn’t require any external oscillator, it onboard-board voltage regulator, and it even uses a reprogrammable internal EEPROM for the device description. The full hardware UART has flow control for baud rates from 300bps to 921600bps.
This breakout also allows you to connect the TX/RX pins of your favorite microcontroller or serial application to the RX/TX pins of the breakout, creating a simple serial cable replacement.
