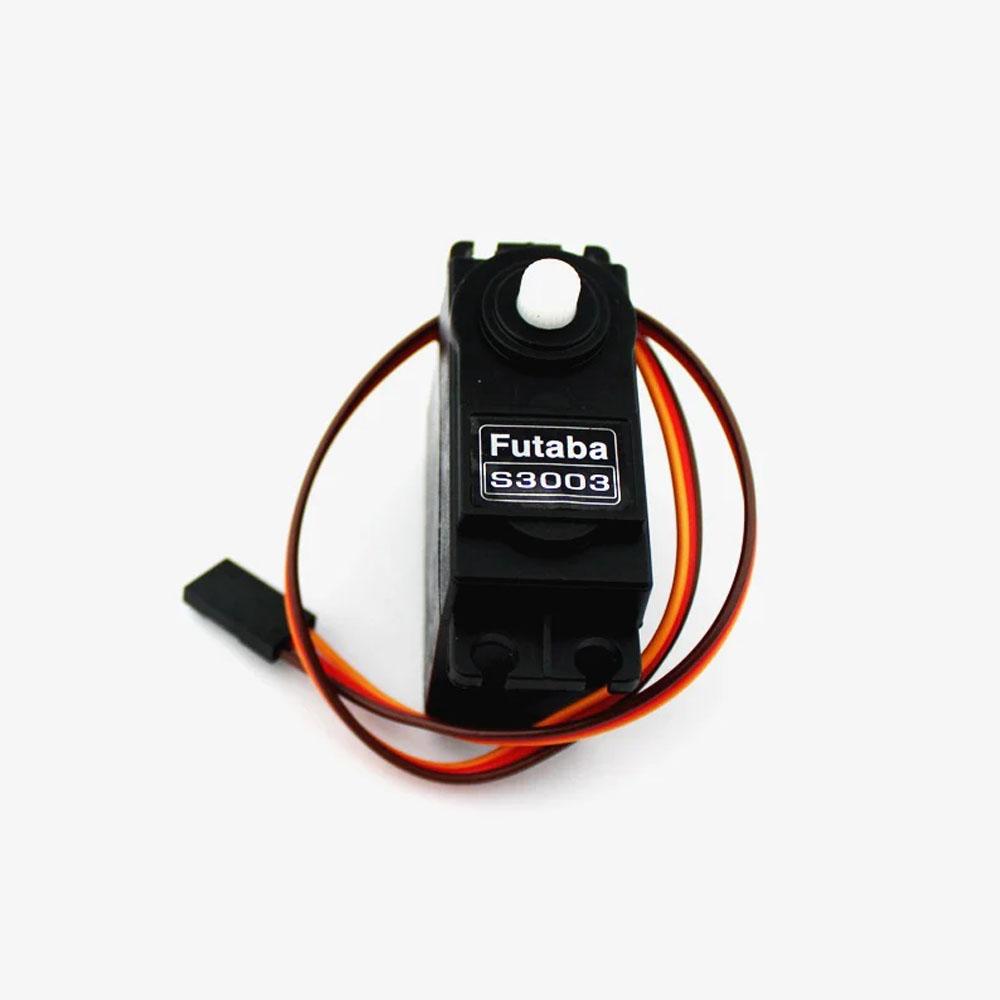

FUTABA S3003 Servo Motor 180°
Specifications:
Modulation: Analog
Operating Voltage: 4.8-6.0 Volts
Torque:4.8V: 44.0 oz-in (3.17 kg-cm),6.0V: 57.0 oz-in (4.10 kg-cm)
Speed:4.8V: 0.23 sec/60°,6.0V: 0.19 sec/60°
Gear Type:Plastic
Rotation/Support:Bushing
Rotational Range:60°
Pulse Cycle:30 ms
Pulse Width:500-3000 µs
Motor Type: 3 Pole Ferrite
₹413.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
This is the S3003 Standard Servo. This basic servo is used in cars, boats, and in any applications which require a standard general-purpose servo. This servo can produce high-current draw from your batteries.

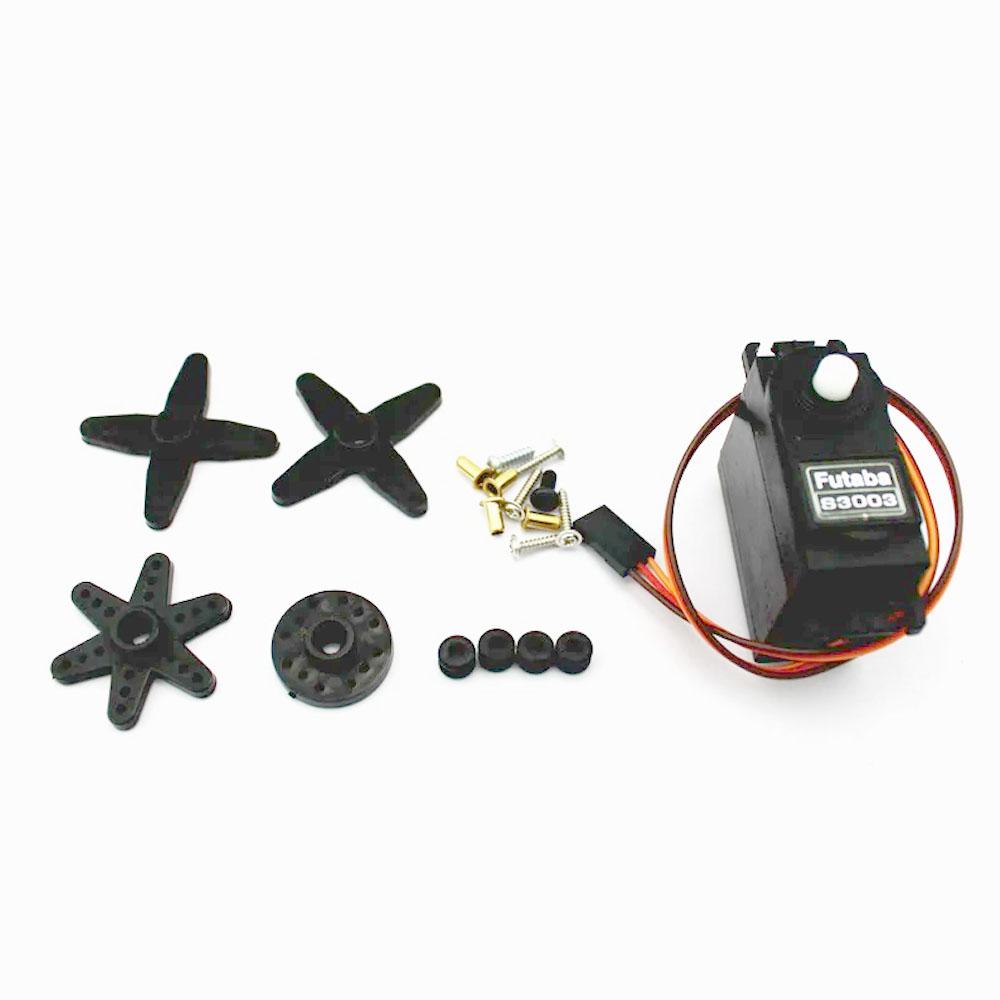

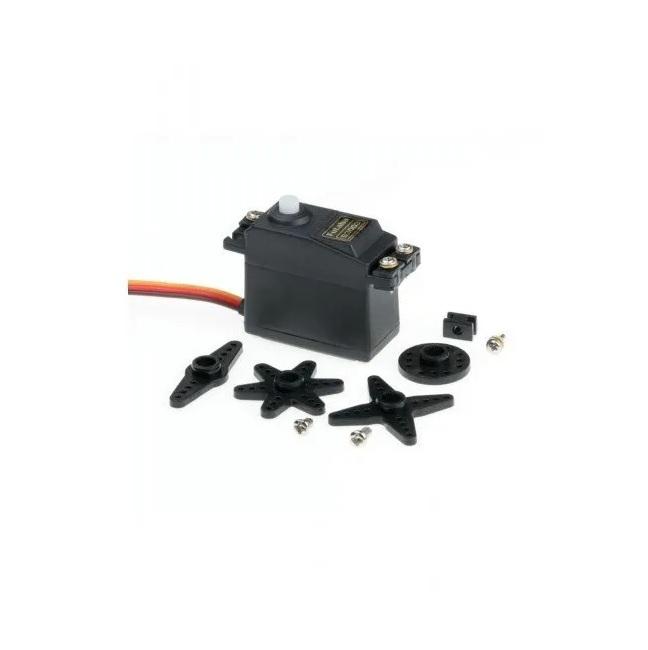

It comes with a 3-pin power, control cable, wide selection of control horns, and mounting hardware.
It comes in a standard 3 pin connectors. It is simple and easy to control. It can be directly used with an Arduino and uses only a digital input/output pin.
