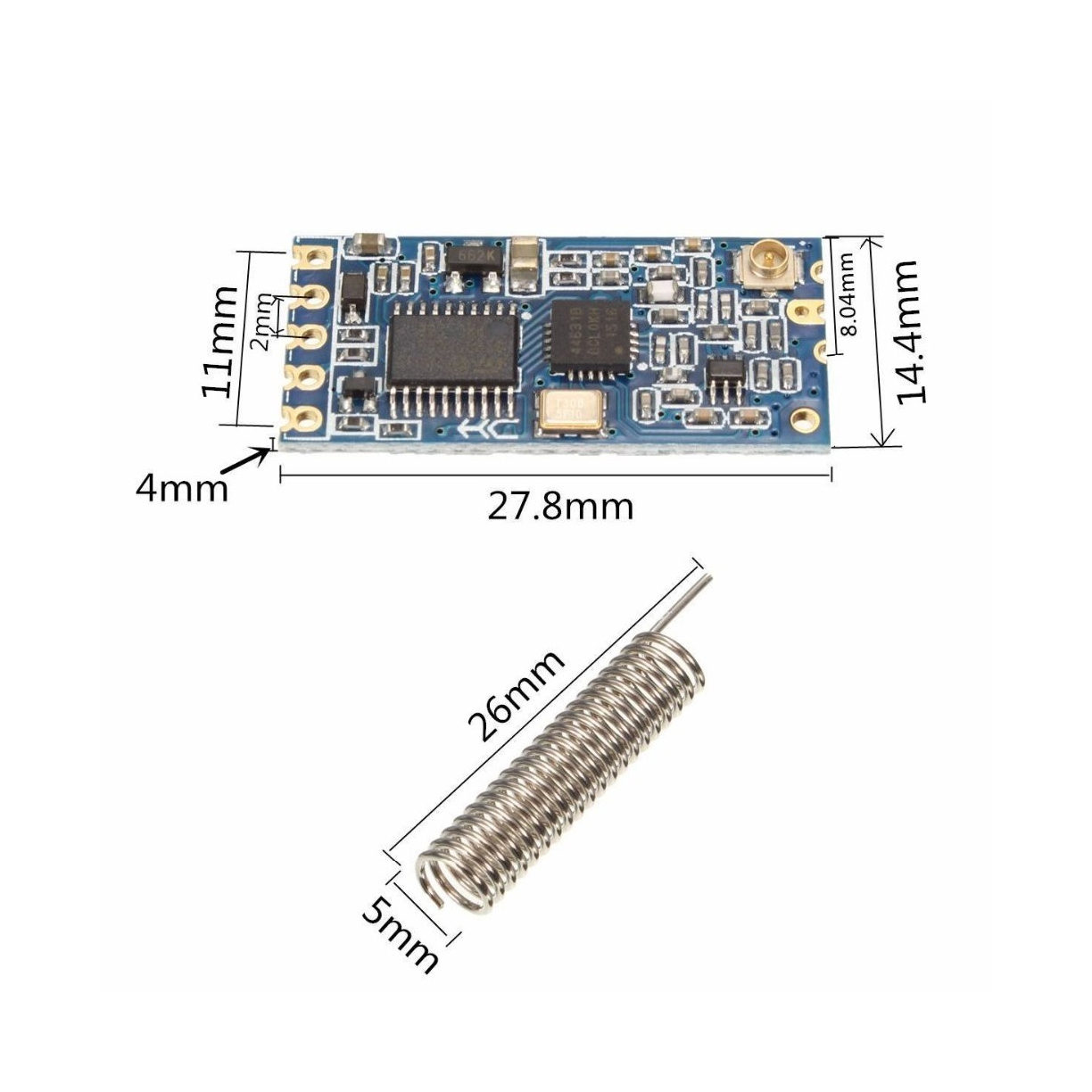

HC-12 SI4463 Wireless Serial Module
Specifications:
Frequency range : 119–1050 MHz
Receive sensitivity : –126 dBm

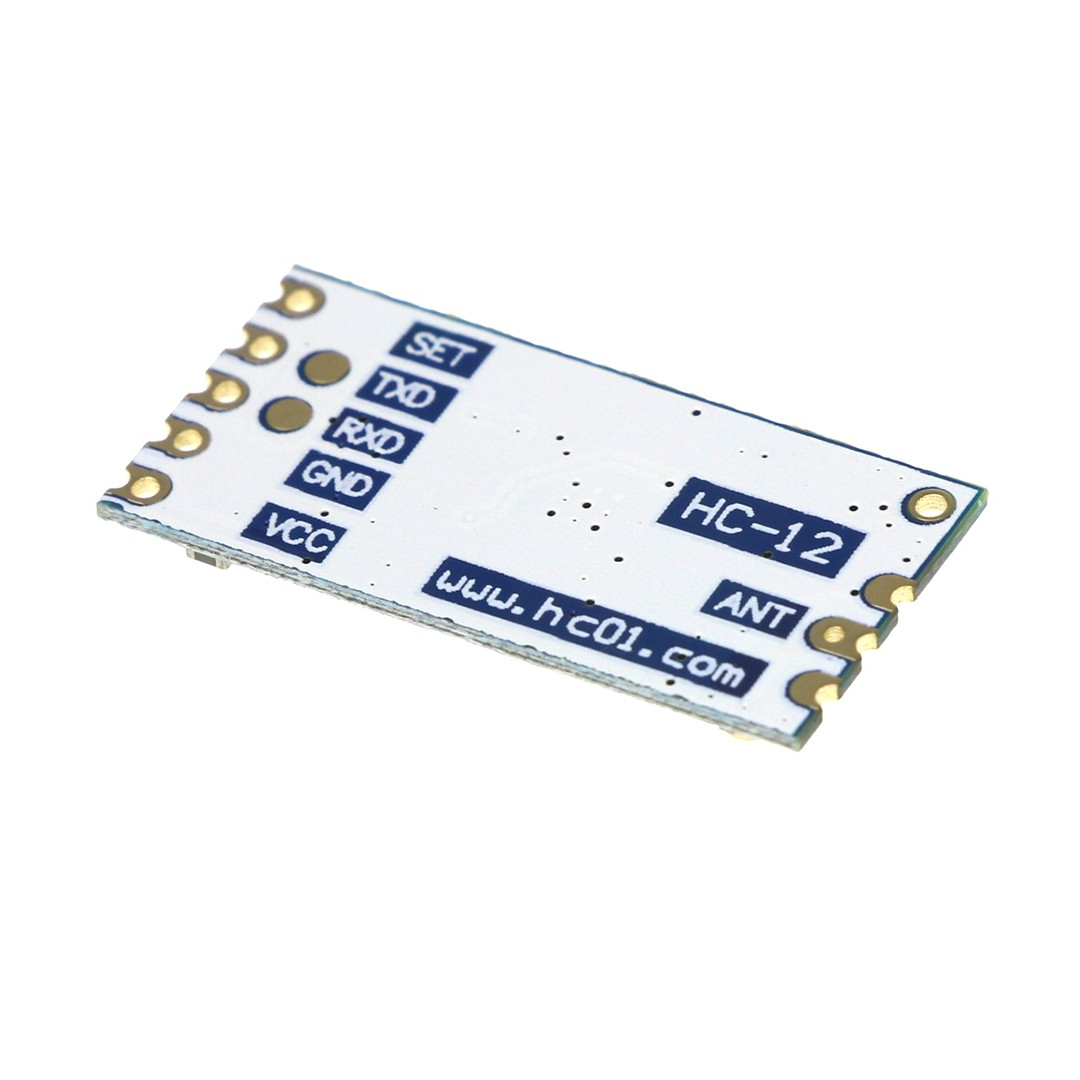

Serial TTL (RX, TX, GND) interface
Modulation (G)FSK, 4(G)FSK, (G)MSK, OOK
Max output power : +20 dBm
Low active power consumption: 10/13 mA RX, 18 mA TX at +10 dBm
Ultra low current powerdown modes: 30 nA shutdown, 50 nA standby
Data rate: 100 bps to 1 Mbps
Fast wake and hop times
Highly configurable packet handler
TX and RX 64 byte FIFOs
Auto frequency control (AFC)
Automatic gain control (AGC)
Low BOM
Low battery detector
FCC Part 90 Mask D, FCC part 15.247, 15,231, 15,249, ARIB T-108, T-96, T-67, RCR STD-30, China regulatory
ETSI Class-I Operation with SAW
₹290.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
Description
HC-12 wireless RF UART communication module is a new generation of multi-channel embedded wireless data transmission module. The Radio frequency of 433.4 – 473.0MHz, can be setting a communication channel, step is 400kHz, a total of 100 channels. The module maximum transmit power is 100mW (20dBm), and -116dBm receiver sensitivity air of the 5000bps baud rate, communication distance about 500 meters.
This module has an onboard STM8S003F3P6 MCU which is communicating with the SI4463 so that the user can communicate with the HC12 module using a simple TTL 2 wire serial interface (RX, TX, GND).
