HLK-PM12 12V 3W Switch Power Supply Module
Specification:
Meet UL, CE requirements,
Ultra-thin, ultra-small
All voltage input (AC: 90 ~ 264V)
Low ripple and low noise
Output overload and short circuit protection
High efficiency, high power density
The product is designed to meet the requirements of EMC and Safety Test
₹221.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
Description
HLK-PM12 12V/3W Switch Power Supply Module is plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 12V DC from 120V AC – 230V AC and has a power rating of 3 Watt. This makes it perfect for small projects that needs a 12 volt supply from mains. There are many advantages for these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation etc.
This Power Supply Module voltage source is a switching source, so you do not have to worry about fluctuations in voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take. It is widely used in a smart home, automation and control, communication equipment, instrumentation and other industries

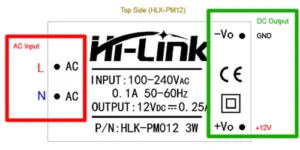

HLK-PM12 Hi Link Pinout:

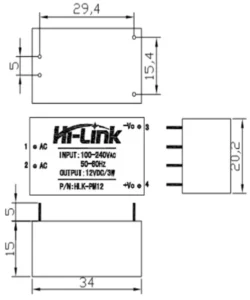

Hi link HLK-PM12 Dimension and footprint:
