KY-036 Metal Touch Sensor switch Module
Power supply: 3.3V or 5.5V
Sensitivity: adjustable

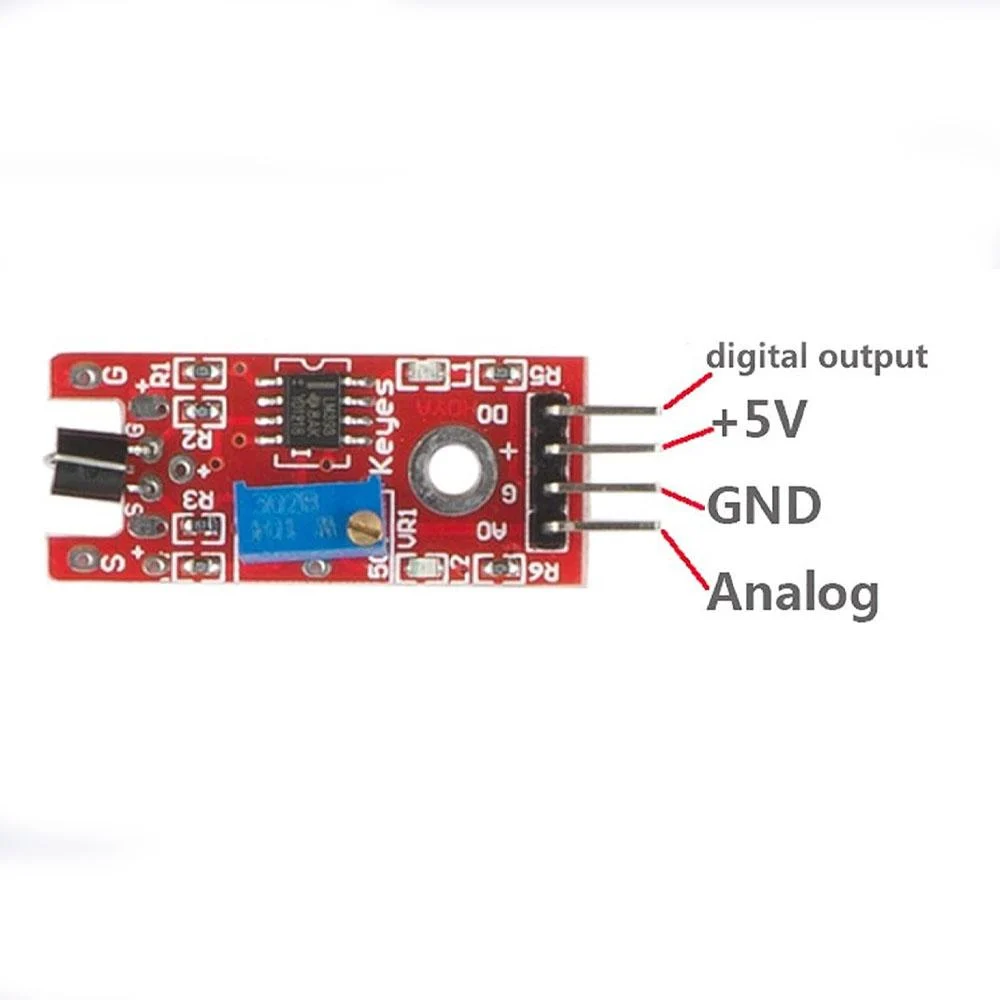

Sensor Type: analog and digital output
Low-level output signal used for human body touch sensor alarm
Low power consumption.
Can replace the traditional touch of a button.
Single-channel signal output
Four M2 screws positioning holes for easy installation.
Compatible with Arduino Board. As well as Raspberry pi
₹59.00 (Incl. GST)
50 in stock (can be backordered)
50 in stock (can be backordered)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
Description
The module is based on a touch-sensing IC (TTP223B) capacitive touch switch module. In the normal state, the output of the module is low, lower power consumption; When a finger touches the corresponding position, the output of the module is high, if not touched for 12 seconds, it switches to low-power mode. Jog type: the initial state is lower, higher touch, do not touch is lower.
This Module can be installed in such as surface plastic, glass of non-metallic materials. In addition to the thin paper (non-metallic) covering the surface of the module, as long as the correct location of the touch, you can make it hidden in the walls, desktops, and other parts of buttons.
