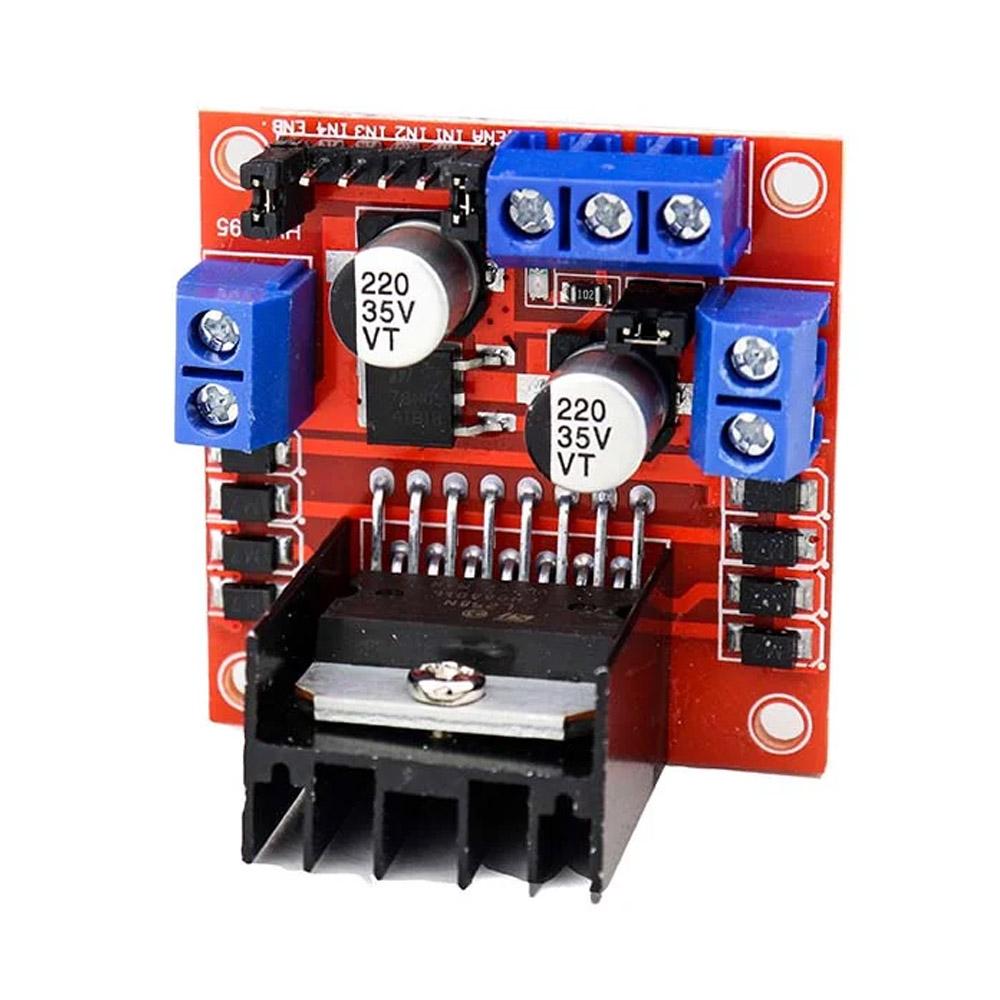

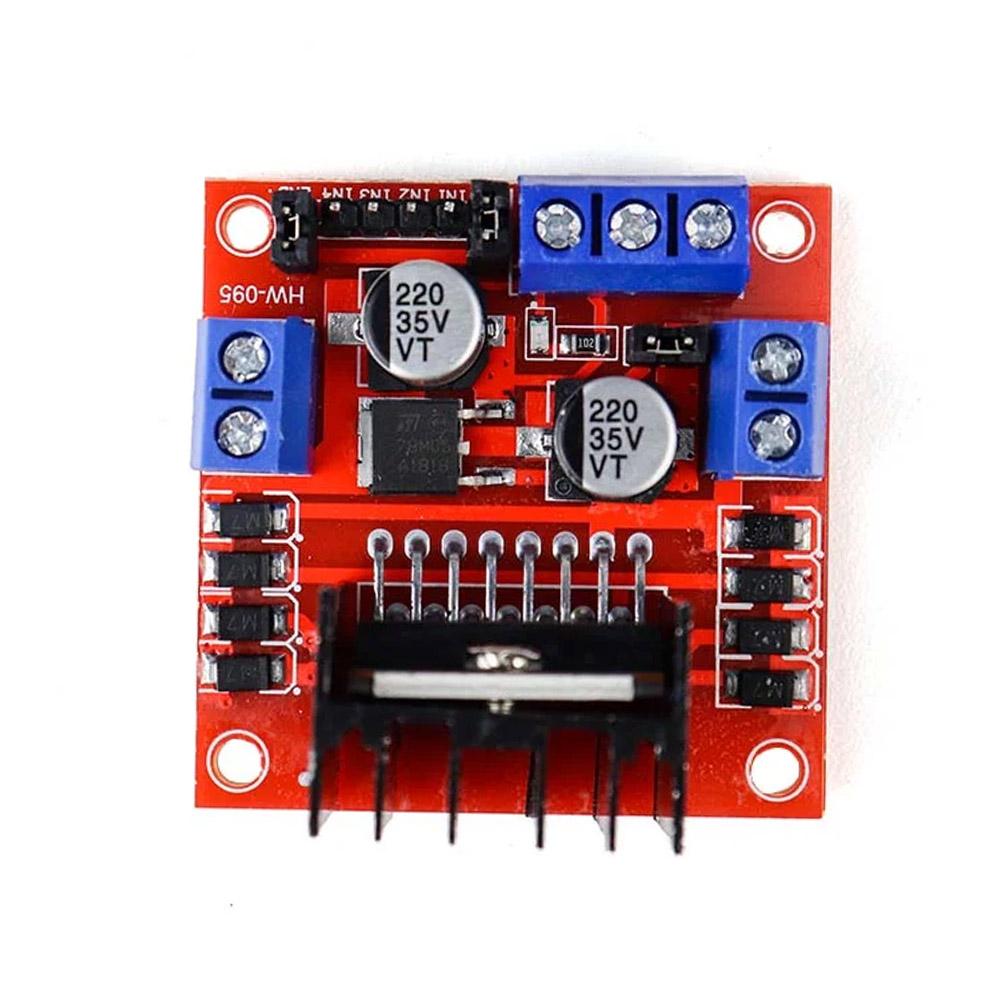

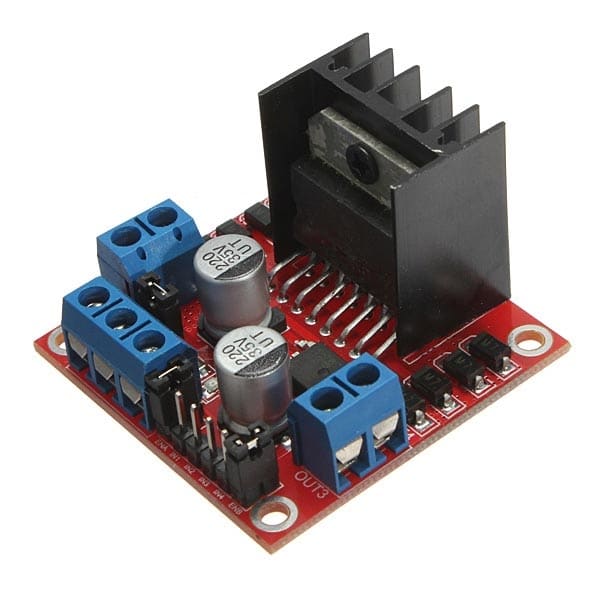

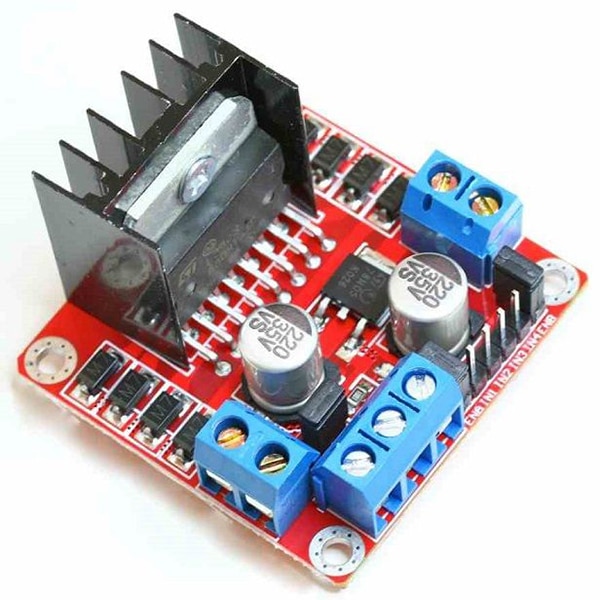

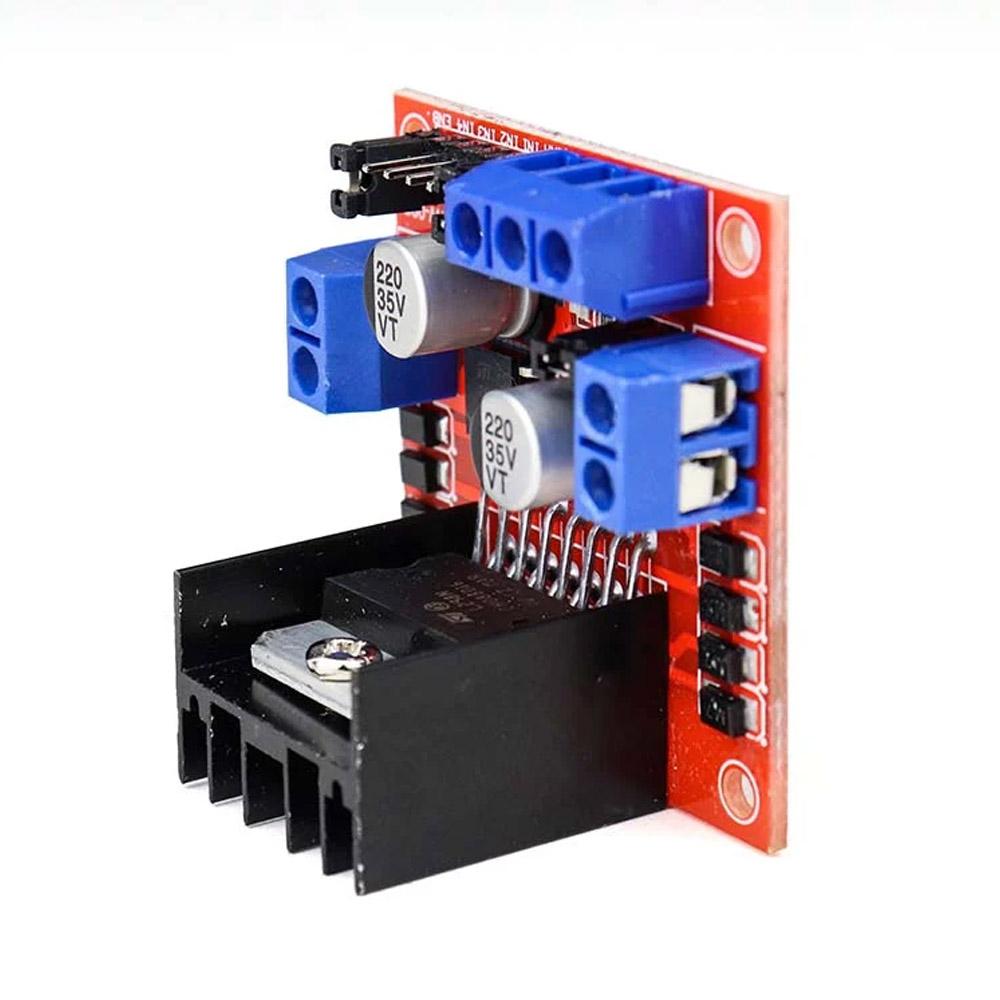

L298N Motor Driver Module
Specifications:
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0-36mA
Drive current: 2A (max. single bridge)
Max power: 25W
Dimensions: 44 x 44 x 28 (LxWxH)mm
Weight: 26 gm
₹148.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
This L298N Based Motor Driver Module is a high power motor driver perfect for driving DC Motors and Stepper Motors. It uses the popular L298 motor driver IC and has the onboard 5V regulator which it can supply to an external circuit. It can control up to 4 DC motors, or 2 DC motors with directional and speed control
This motor driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line-following robots, robot arms, etc.
Features:
Current Sense for each motor.
Heatsink for better performance.
Power-On LED indicator.
Drives up to 4 motors.
