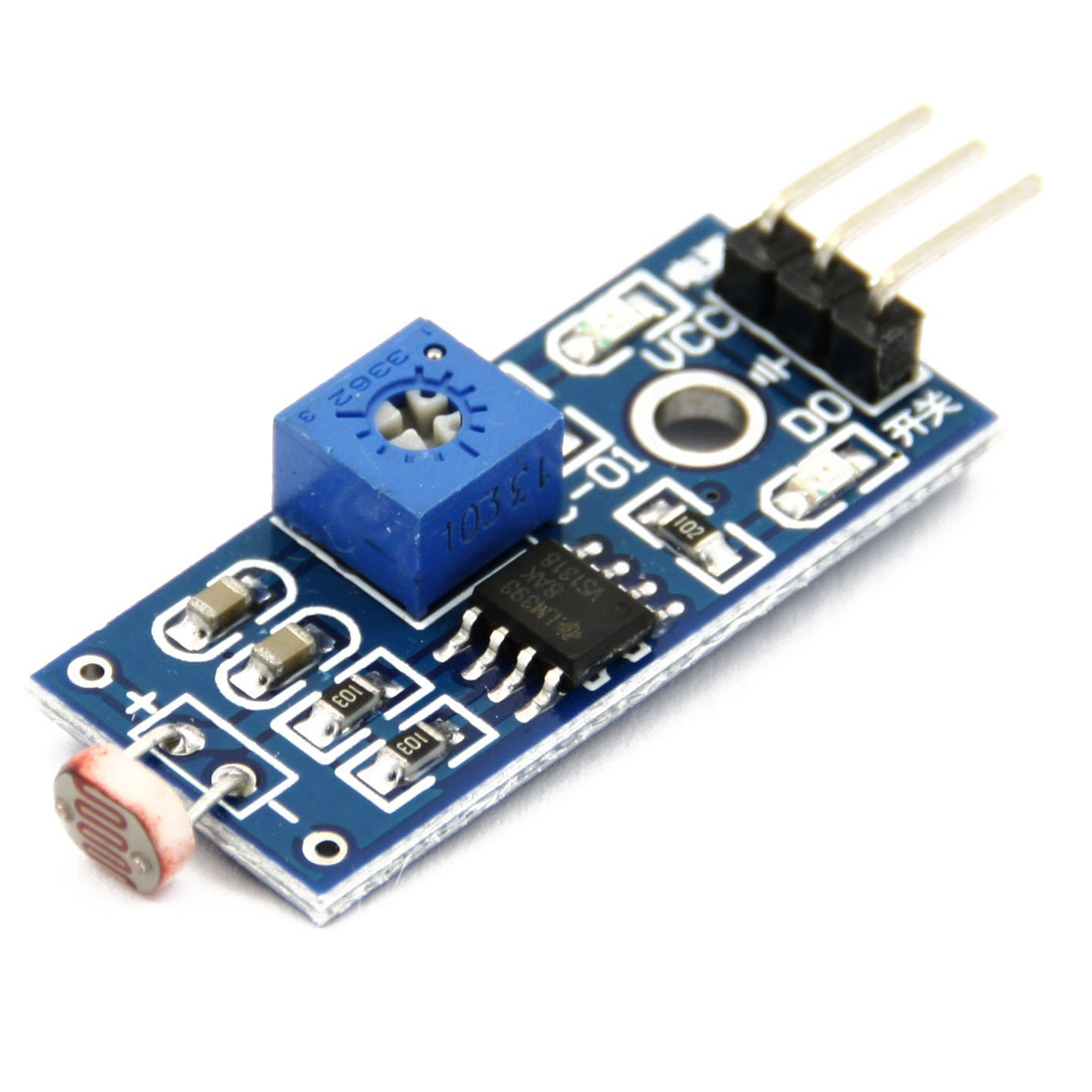

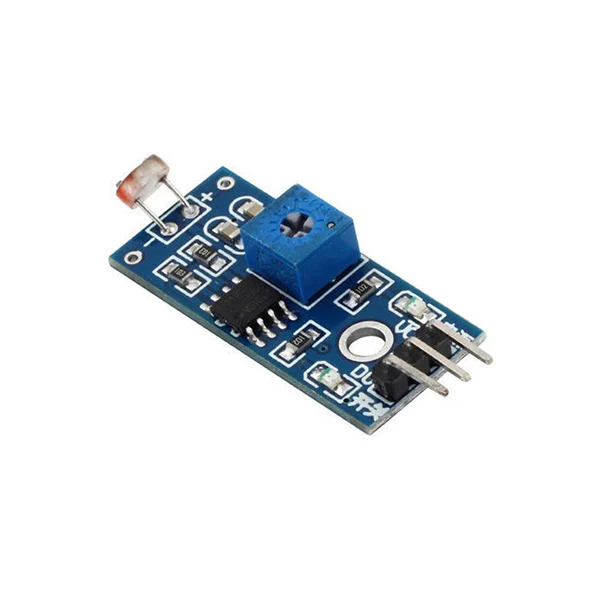

LDR Sensor Module
Specifications:
LDR module 4 PIN
Operating voltage 3.3V-5V
Signal output indicator light.
LDR module 4 PIN
Able to detect ambient brightness and light intensity Adjustable sensitivity (via blue digital potentiometer adjustment)
₹30.00 (Incl. GST)
50 in stock
50 in stock
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
Description
This LM393 Photosensitive Light-Dependent Control Sensor LDR Module is using a high-quality LM393 voltage comparator. Easy to install using the sensitive type photosensitive resistance sensor the comparator output signal gives a clean and good waveform.
Driving ability is 15mA with the adjustable potentiometer, it can adjust the brightness of the light. The working voltage is 3. 3V to 5v. Where output is a digital switch output. Since this module is sensitive to the light, usually used for detecting the ambient brightness and light intensity.
You can use this board digital output DO port drive relay module directly(our store on sale these relay modules), and can also use it as a photoelectric switch. The analog output ao connects with the ad module and it can get more precise light intensity value through the ad-converter.
Interface Pin :
VCC: +ve power supply.
GND: Ground.
D0: Digital output signal.
A0: Analog Output Signal.
