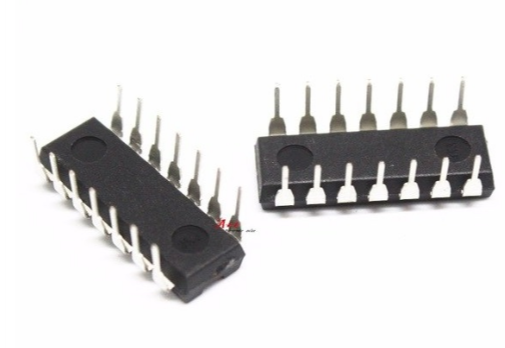

LM324N PDIP-14 Operational Amplifier

These devices consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2902), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage.
Features:
Wide supply voltage ranges
Low supply-current drain independent of supply voltage
Common-mode input voltage range includes ground, allowing direct sensing near ground
Low input bias and offset parameters
Internal frequency compensation
Common mode input voltage range includes ground, allowing direct sensing near ground
Input offset voltage is typical 3mV
Input offset current is typical 2nA
A differential input voltage range of 32V equal to the maximum rated supply voltage
Operating temperature range from 0°C to 70°C
Applications: Signal Processing, Consumer Electronics, Portable Devices, Sensing & Instrumentation, Motor Drive & Control, Test & Measurement
