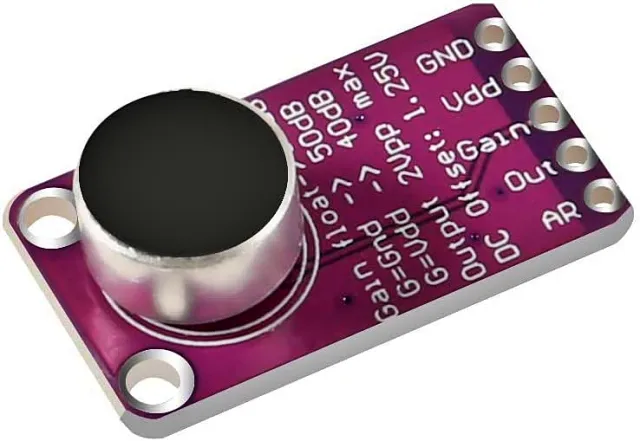

Note: Image shown is a representation only.
MAX9814 High Performance Microphone AGC Amplifier Module CMA- 4544PF-W
Supply Voltage: 2.7v-5.5v @ 3mA current
Output: 2Vpp on 1.25V bias
Frequency Response: 20Hz – 20 KHz
Programmable Attack and Release Ratio
Automatic gain, selectable max from 40dB, 50dB, or 60dB
₹216.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
The MAX9814 High-Performance Microphone AGC Amplifier, model CMA-4544PF-W, is an advanced audio solution that excels in capturing and amplifying sound with exceptional clarity. Featuring an Automatic Gain Control (AGC) system, it dynamically adjusts the amplification level to accommodate varying audio input levels, ensuring consistent and high-quality output. The compact module is equipped with the MAX9814 amplifier chip, known for its precision and reliability. With a user-friendly design, it’s suitable for diverse applications, from voice recording to audio surveillance. The CMA-4544PF-W offers a reliable, compact, and efficient solution for integrating superior audio performance into electronic projects and devices.
Features:
Automatic Gain Control (AGC)
Programmable action time
Programmable action and release time ratio
Low-power shutdown mode
Built-in 2 Volt low noise microphone bias
Low Input-Referred Noise Density of 30nV/
Low THD: 0.04% (typical)
