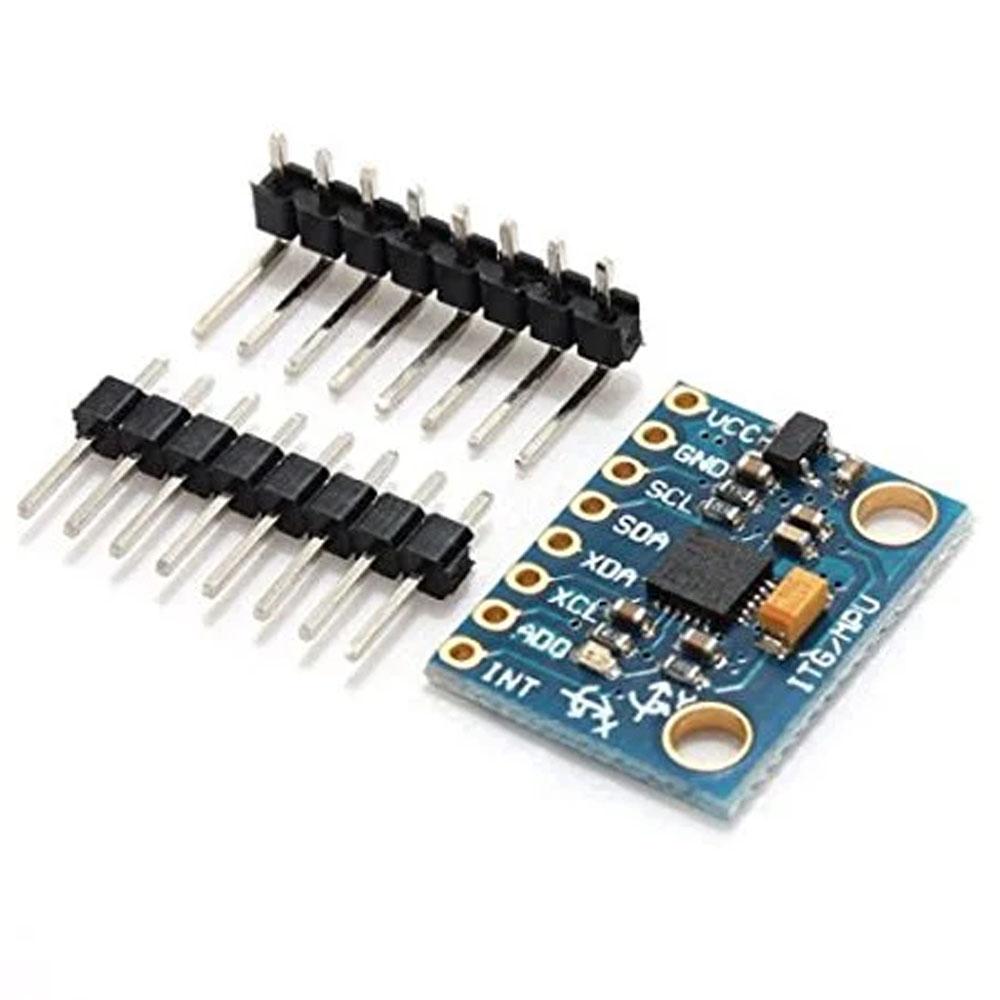

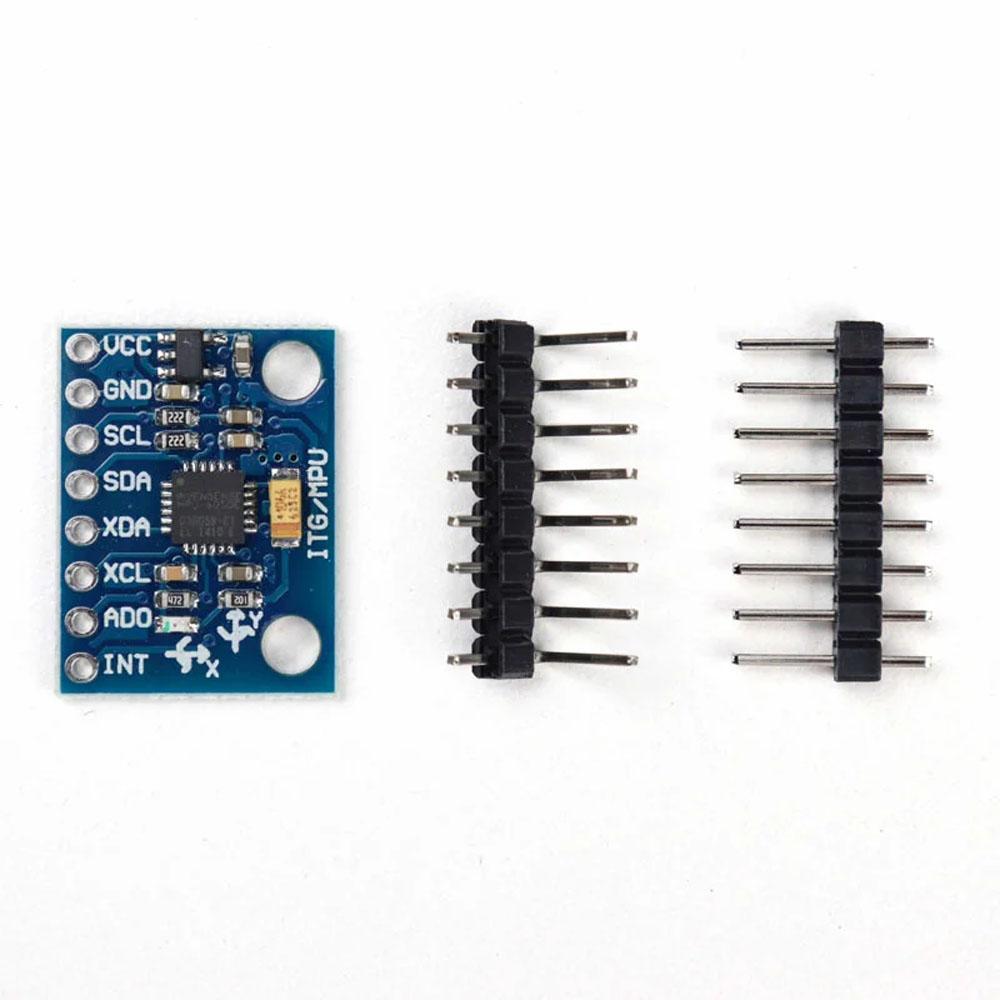

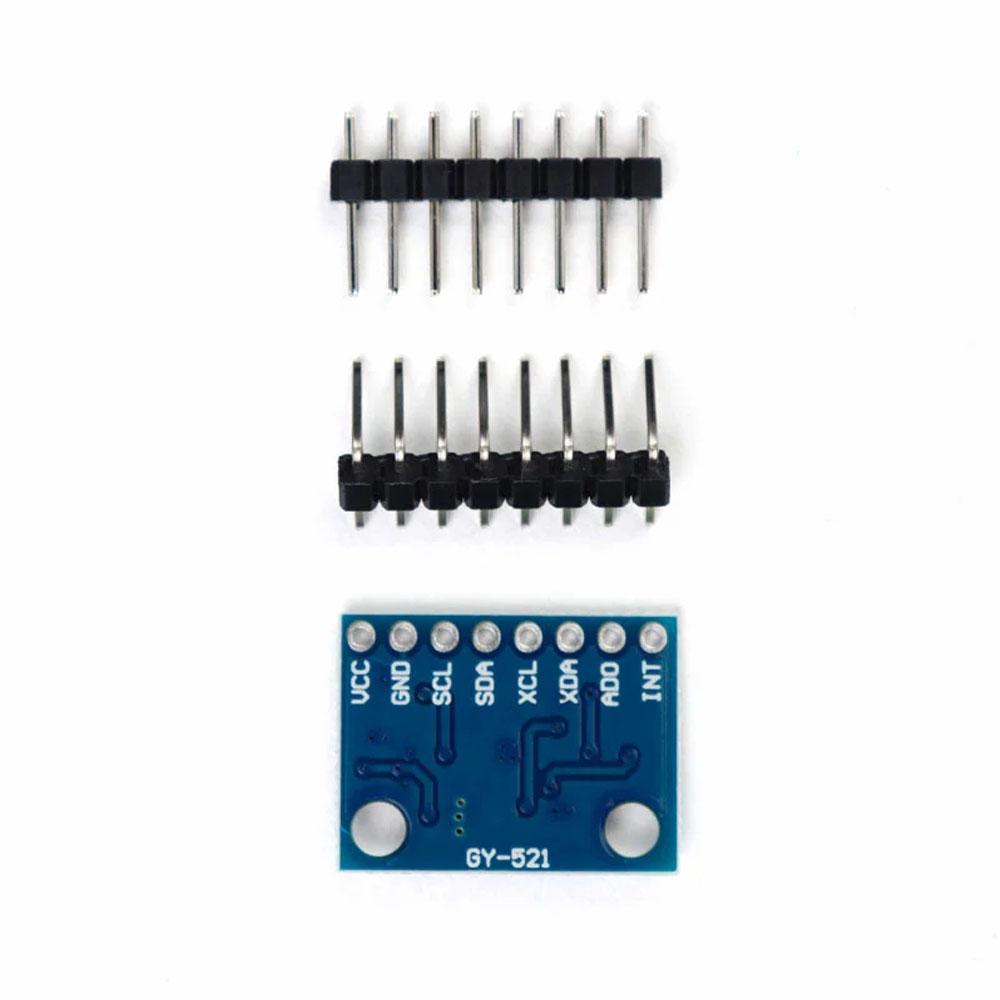

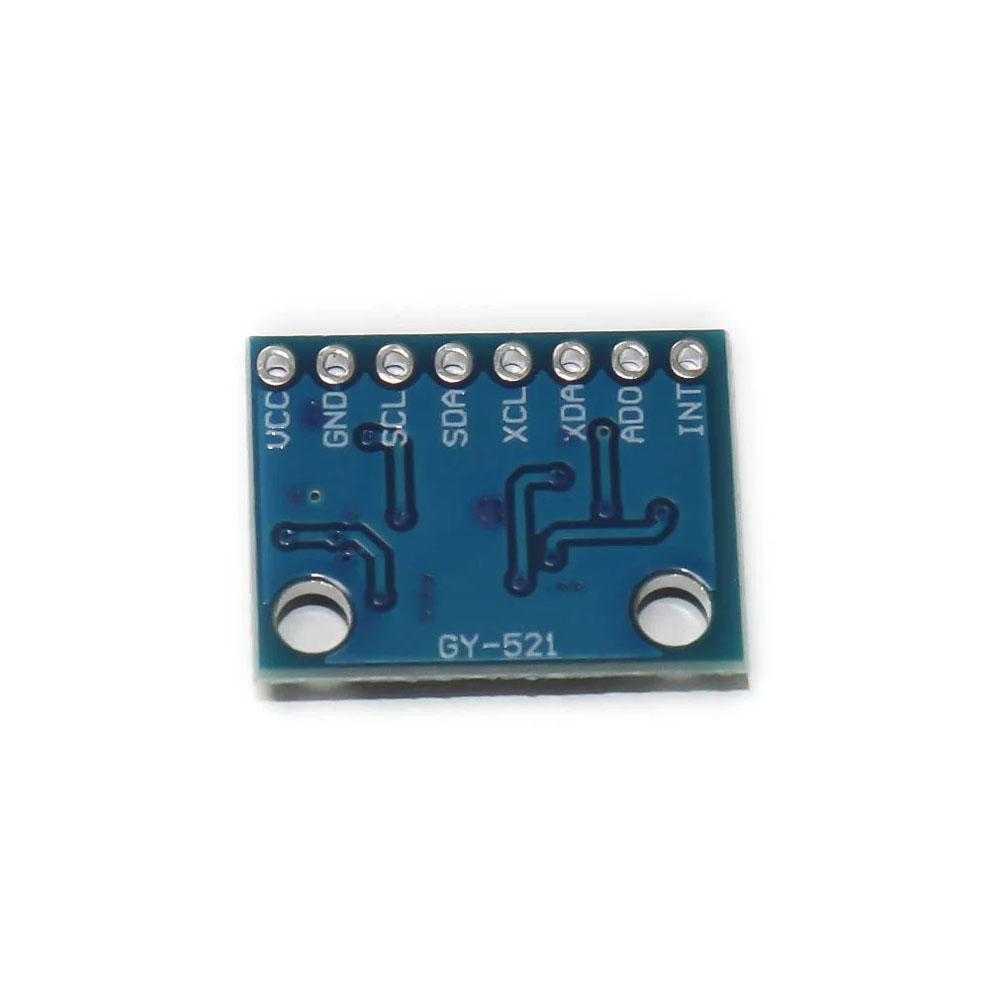

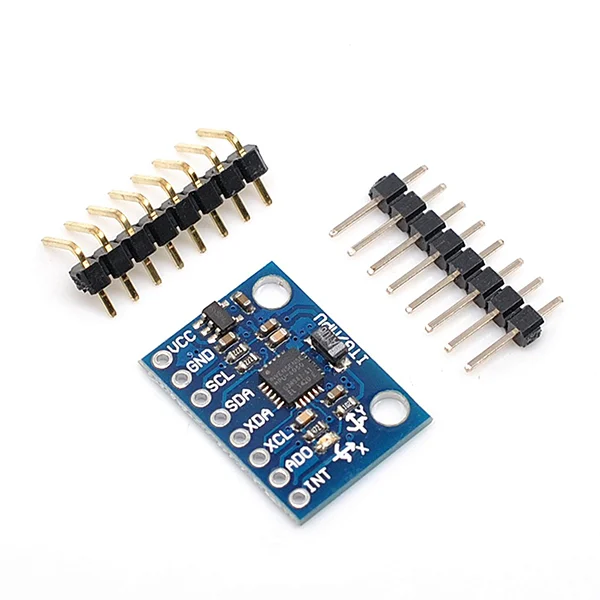

MPU-6050 3-Axis Accelerometer and Gyro Sensor Module
Specifications:
MEMS 3-aixs accelerometer and 3-axis gyroscope values combined
Power Supply: 3-5V
Communication : I2C protocol
Built-in 16-bit ADC provides high accuracy
Built-in DMP provides high computational power
Can be used to interface with other IIC devices like magnetometer
Configurable IIC Address
In-built Temperature sensor
₹210.00 (Incl. GST)
50 in stock
50 in stock
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
Description
The MPU6050 is a Micro-Electro-Mechanical Systems which consists of a 3-axis Accelerometer and 3-axis Gyroscope inside it. This helps us to measure acceleration, velocity, orientation, displacement, and many other motion-related parameter of a system or object. This module also has a (DMP) Digital Motion Processor which is capable of processing complex 9-axis Motion Fusion algorithms.
Features:
Chip built-in 16bit AD converter, 16-bit data output.
Selectable Solder Jumpers on CLK, FSYNC, and AD0.
Embedded algorithms for run-time bias and compass calibration. No user intervention required.
Digital-output temperature sensor.
I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format.
