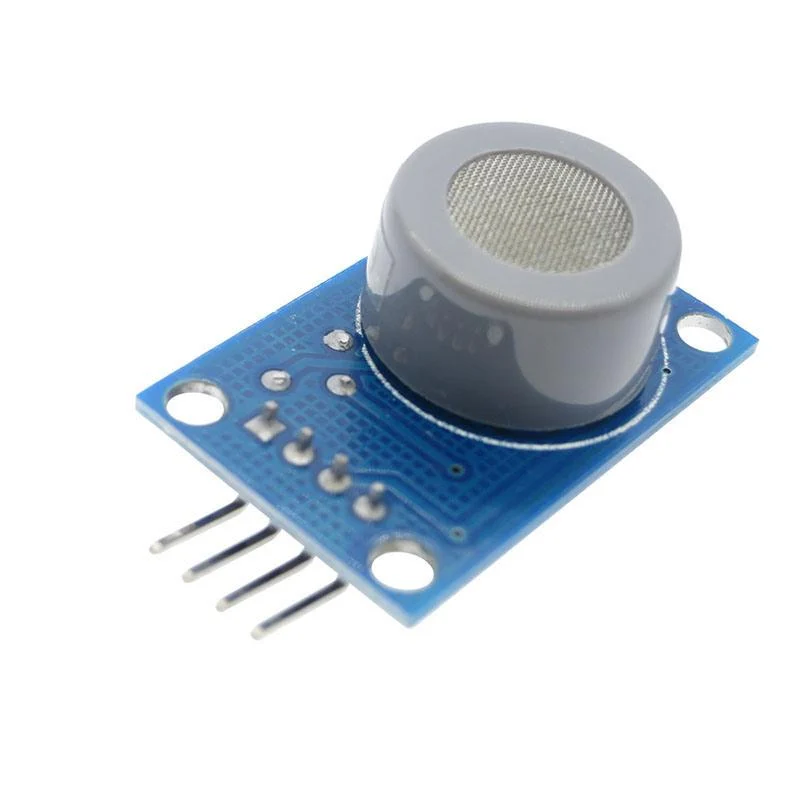

MQ-9 Carbon Monoxide, Methane and LPG Gas Sensor Module
Specifications:
Input voltage: DC 5V
Power: 150mA
DO output: TTL digital 0 and 1 (0.1 and 5V)
O output: 0.1-0.3V (relatively clean), the highest concentration voltage is about 4V.
Suitable for home or factory gas leakage monitoring devices.
Have better sensitivity to Carbon Monoxide, Methane and LPG Gas.
High quality dual-panel design, with power indicator and TTL signal output instructions.
DO switching signal (TTL) output and AO analog signal output.
TTL output valid signal is low. (When the output low signal is on, it can be directly connected micro-controller or relay module.)
Analog output voltage: the higher concentration, the higher voltage.
₹110.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
Description
This is MQ-9 Carbon Monoxide, Methane, and LPG Gas Sensor Module can be used to sense Carbon Monoxide and Methane Gas. Sensitive material of the MQ9 gas sensor is SnO2, which with lower conductivity in clean air.
It makes detection by the method of cycle high and low temperature, and detect CO when the low temperature (heated by 1.5V). The sensor’s conductivity is higher along with the gas concentration rising.
When a high temperature (heated by 5.0V), it detects Methane, Propane, etc. combustible gas and cleans the other gases adsorbed under low temperature.

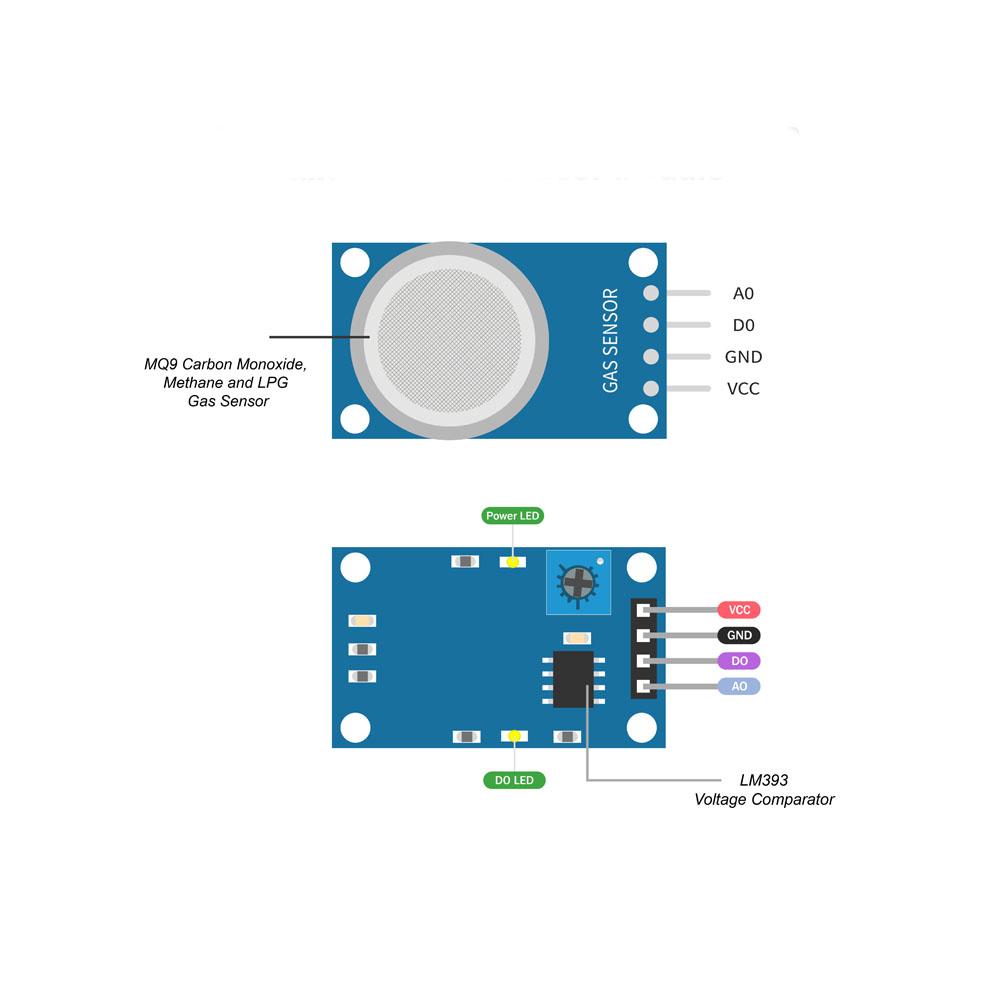

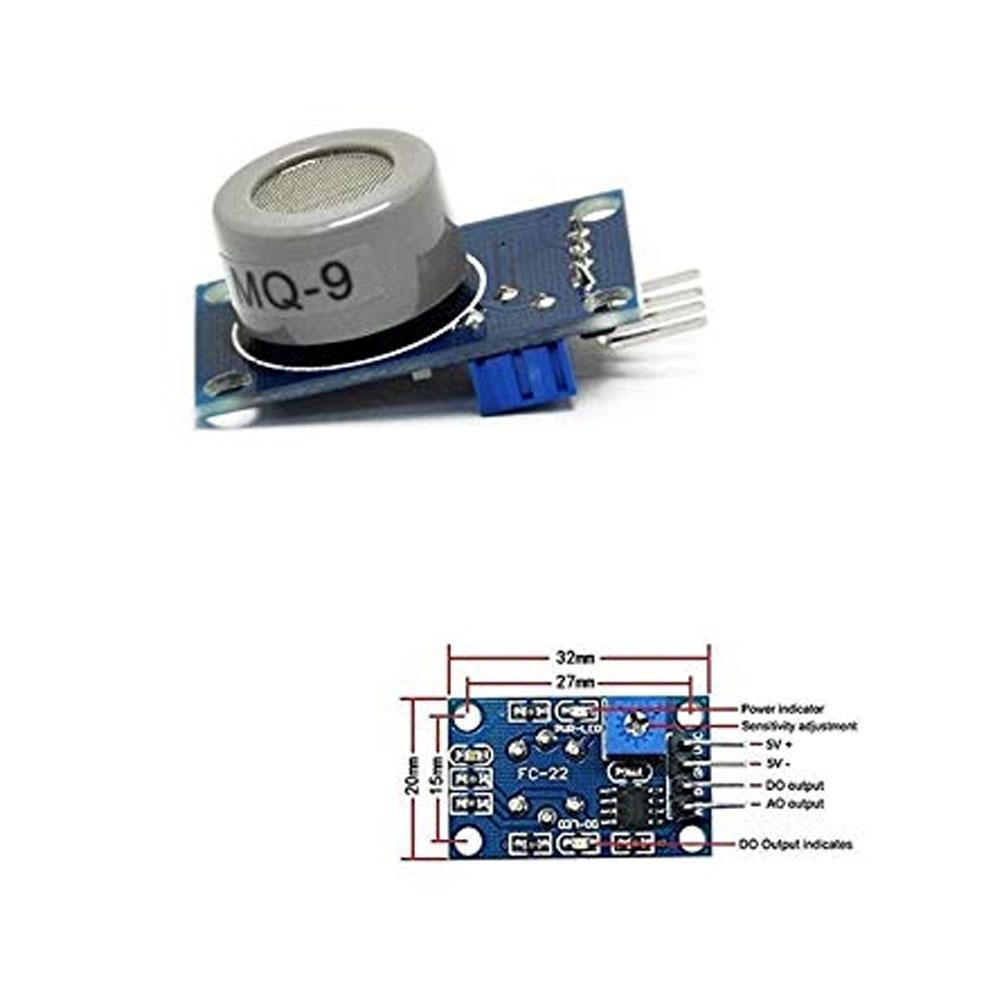

Wire Connections
VCC – Positive pole (5V)
GND – Negative pole
DO – TTL switch signal output
AO – Analog signal output
Applications
The domestic gas leakage detector
Industrial gas detector
Portable gas detector
Features :
Good sensitivity to CO/Combustible Gas
High sensitivity to Methane, Propane, and CO
Long life and low cost
Simple drive circuit
