Note: Image shown is a representation only.

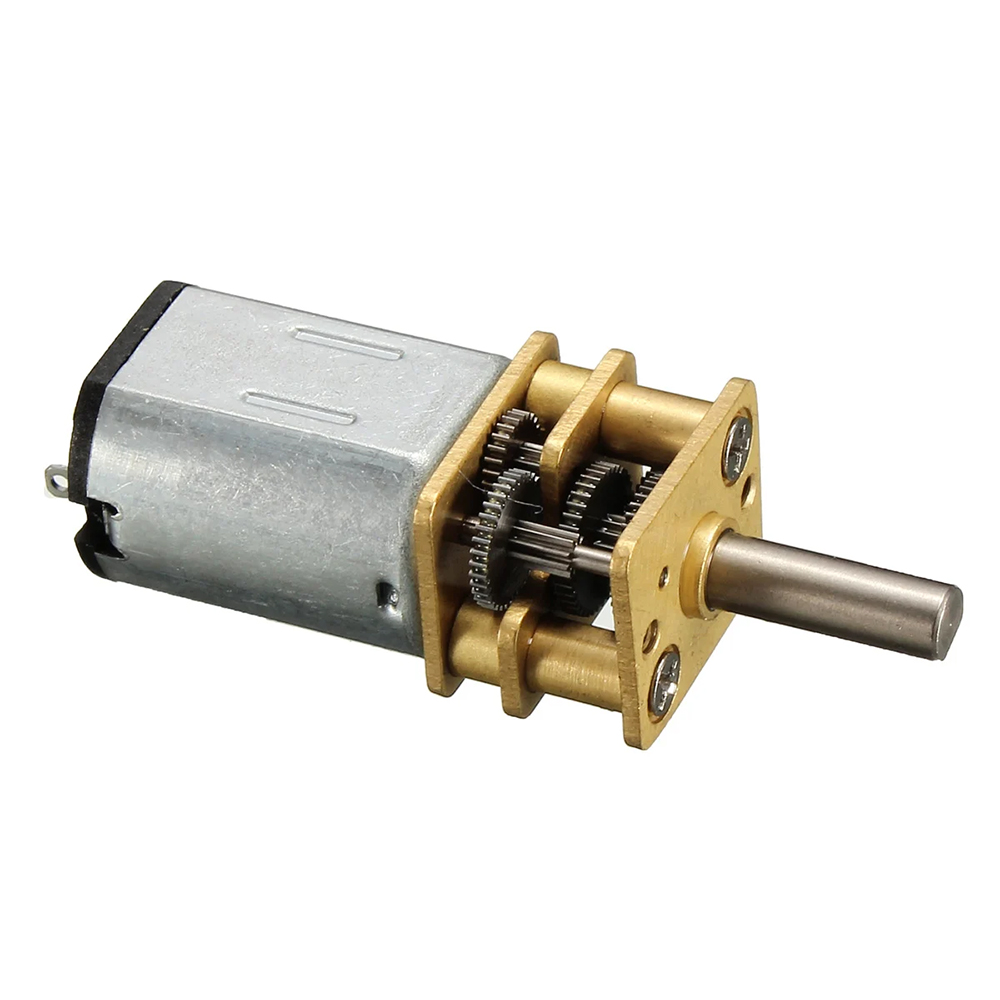

N20 6V 200 RPM Micro-Gear DC Motor
Specifications:
Voltage: 6V
No-load Speed: 200 RPM
Stall Torque: 0.3-0.5 kg.cm
Stall Current: 1.5-2.5A
No-load Current: 20-70mA
Output Shaft Diameter: 3mm
Motor Dimensions: 12mm x 10mm x 15mm
Gearbox Length: 9mm
Weight: 10-12 grams
₹269.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:

The N20 Micro Gear 6V 200 RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. This motor is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. Because of its small size, the motor fits in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.
This N20-6V-200 Rpm Micro Metal Gear Motor is a small volume, big torsion, all metal gear, durable, not easy to wear DC motor. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
