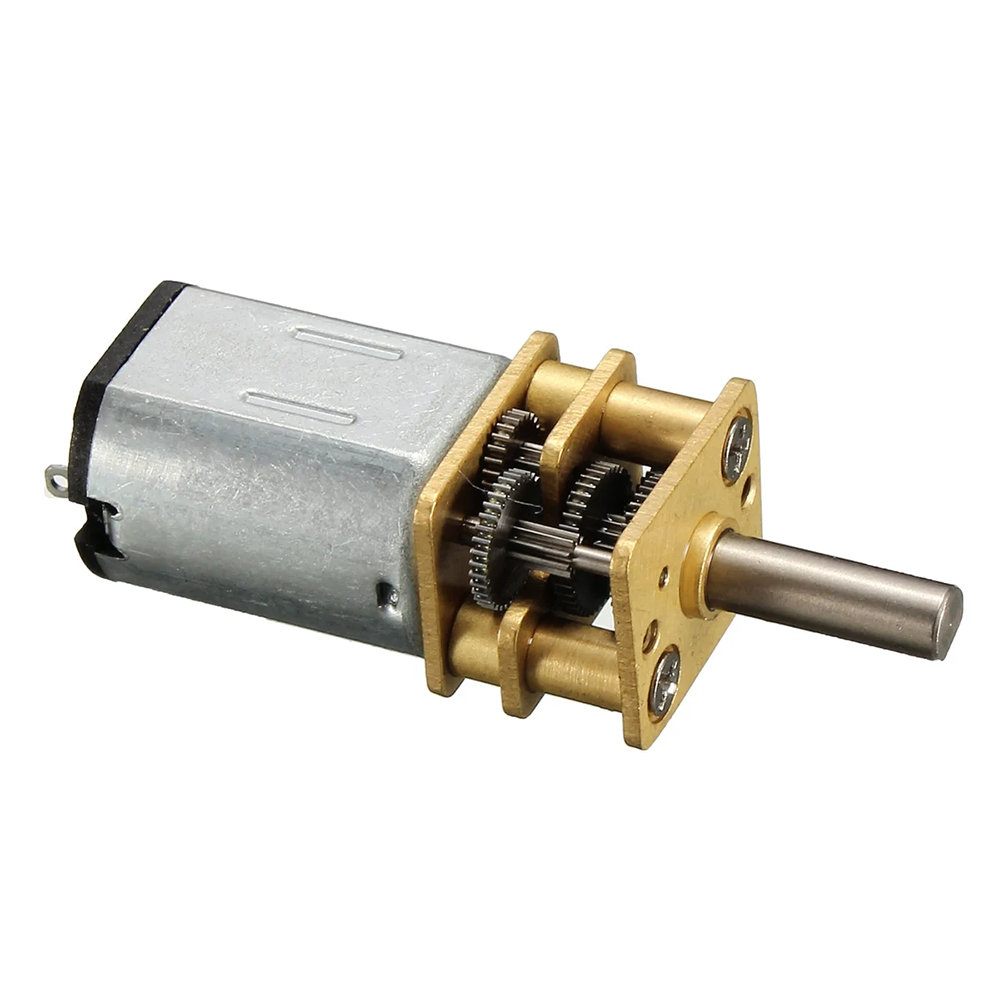

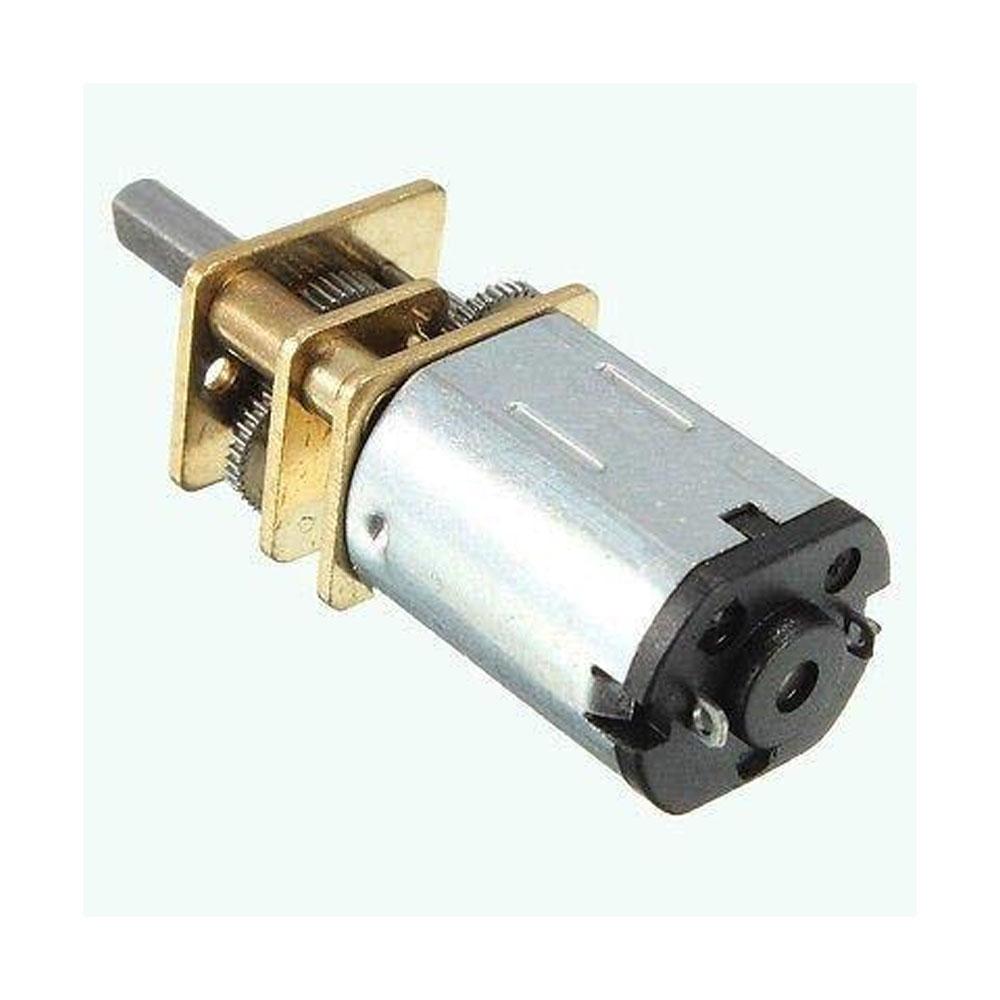

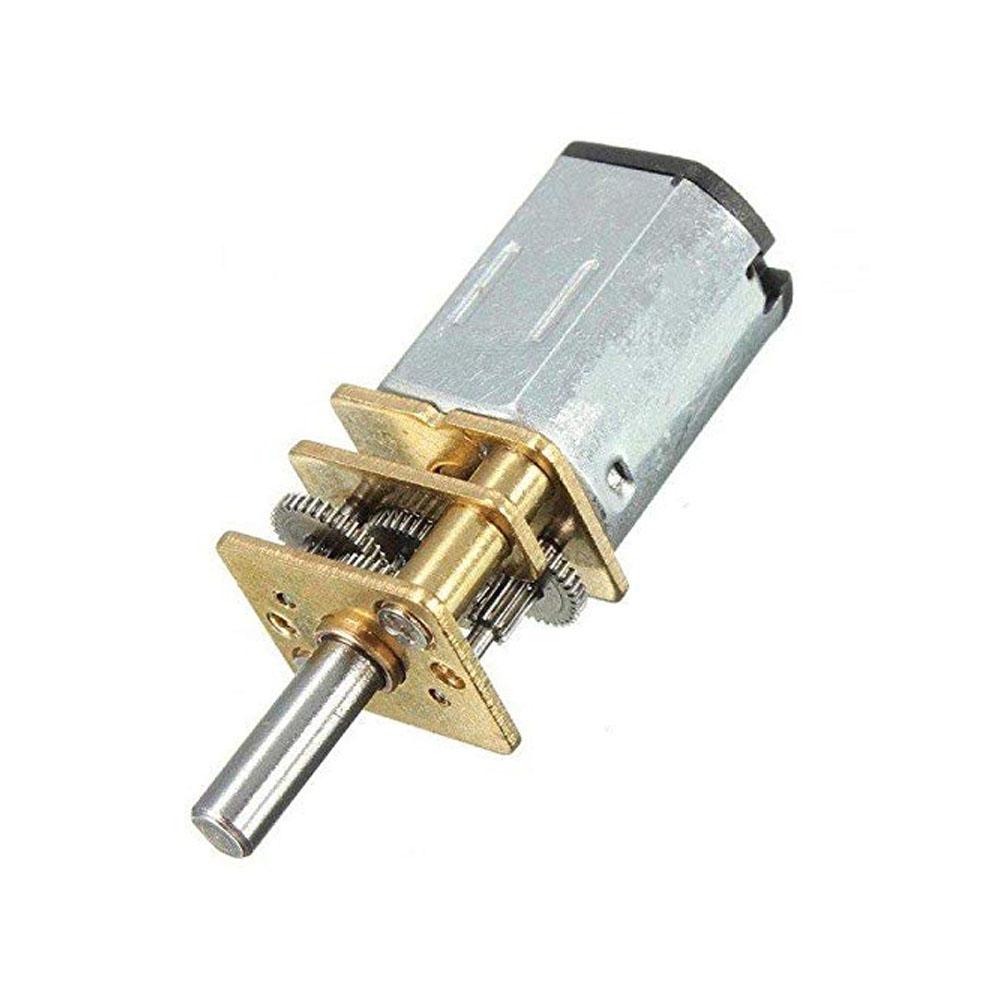

Note: Image shown is a representation only.
N20 6V 600 RPM Micro-Gear DC Motor
Specifications:
Voltage: 6V DC
RPM: 500 RPM (Revolutions Per Minute)
Torque: Lower torque compared to slower RPM models, but sufficient for lightweight applications
Current: Usually around 40-150mA (no load) and up to 1A (stall)
Shaft Diameter: Typically around 3mm
Shaft Length: Approximately 9mm
Gearbox Type: Metal gears for enhanced durability
Dimensions: Similar to other N20 motors, around 12mm x 10mm x 26mm
₹269.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
The N20 Micro Gear 6V 500 RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. This motor is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. Because of its small size, the motor fits in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.
This N20-6V-500 Rpm Micro Metal Gear Motor is a small volume, big torsion, all metal gear, durable, not easy to wear DC motor. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
