PL2303 TA Download Cable USB to TTL RS232 Module USB to Serial

Description
This is PL2303 TA Download Cable USB to TTL RS232 Module USB to Serial.

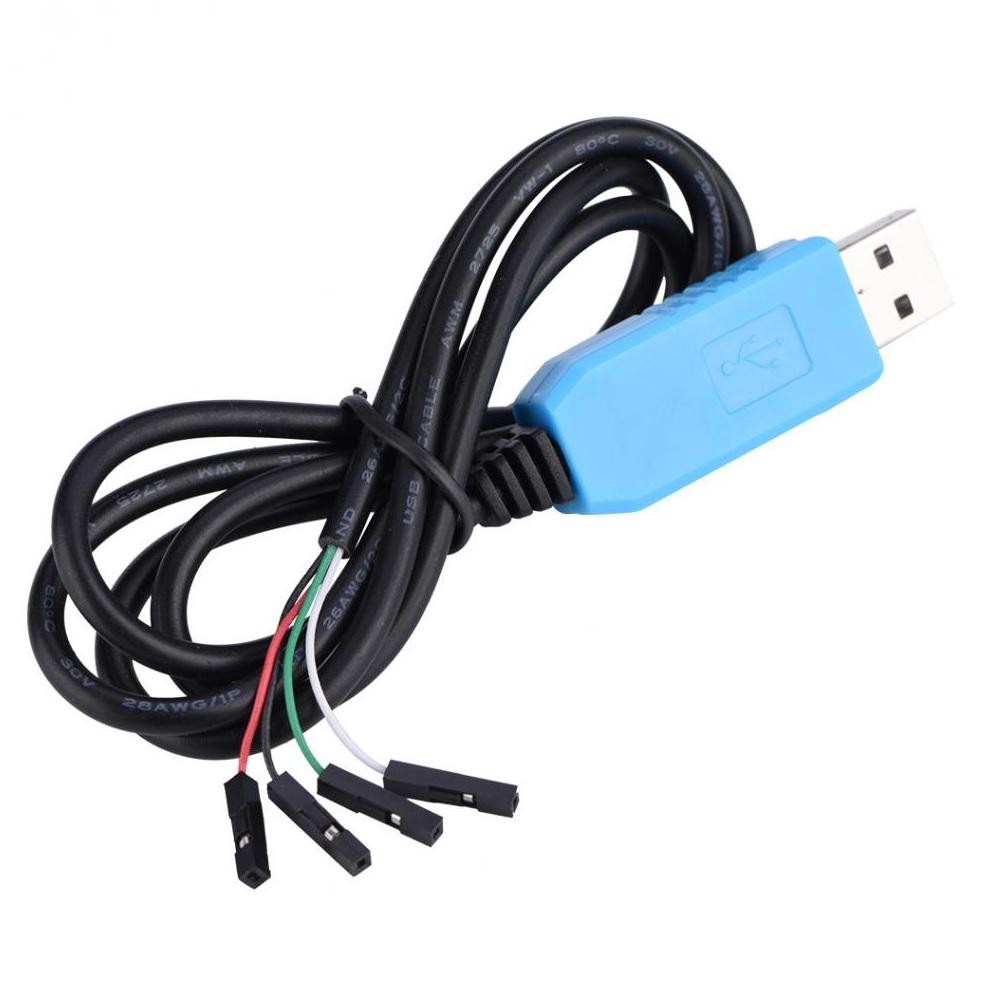

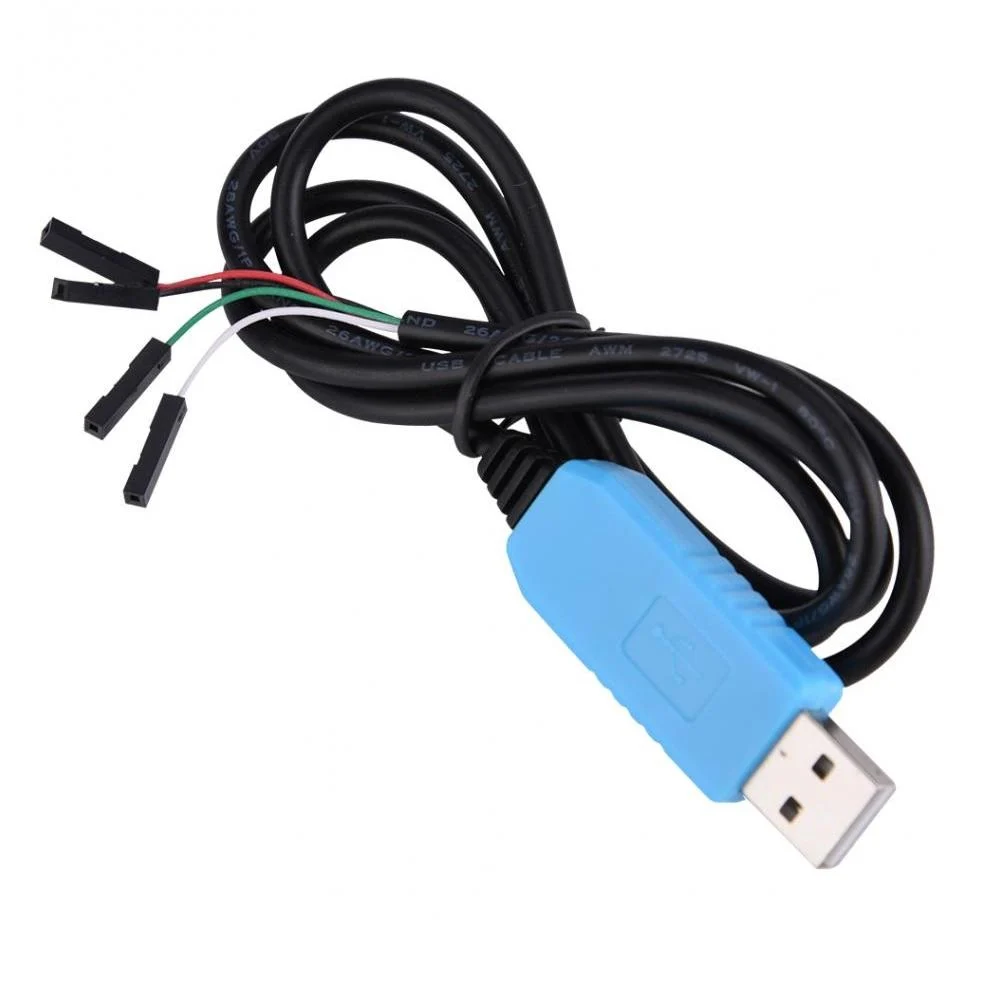

The cable is the easiest way ever to connect to your microcontroller/Raspberry Pi/Wi-Fi router serial console port. Inside the big USB plug is a USB to Serial conversion chip and at the end of the 1M cable are four wire red power, black ground, white RX into the USB port, and green TX out of the USB port.

The power pin provides the 5V @ 500mA direct from the USB port and the RX/TX pins are 3.3V levels for interfacing with the most common 3.3V logic level chipsets.

Also handy for hacking Wi-Fi routers to install alternate OSs, or nearly any other 3.3V logic serial port. This is easier to use than an FTDI cable in many cases because the wires are separated.

Pin Connection :
Red: +5 V
Black: GND
White: RXD
Green: TXD
Applications:
Single-chip upgrade solution for Legacy RS232 devices to USB interface
USB to RS232 converters/cables/dongles
Healthcare/Medical USB Interface Data Transfer Cable
Personal Infotainment/Media Player Docking USB Interface
Cellular/PDA USB Interface Data Transfer Cable
Serial-over-IP Wireless Solution
USB Barcode/Smart Card Readers
GPS/Navigation USB Interface
Point-of-Sale (POS) Terminals/Printers
PC Docking Station/Port Replicators
Industrial/Instrumentation/Automation Control USB Interface
Features :
Built-in TTL COM PC-PL2303HX Chip.
Standard USB type and TTL 4 pin connector
Simple and Easy way to give USB support to your designs
Available for Linux, Mac, WinCE, and Windows (XP, 7), Win 8
