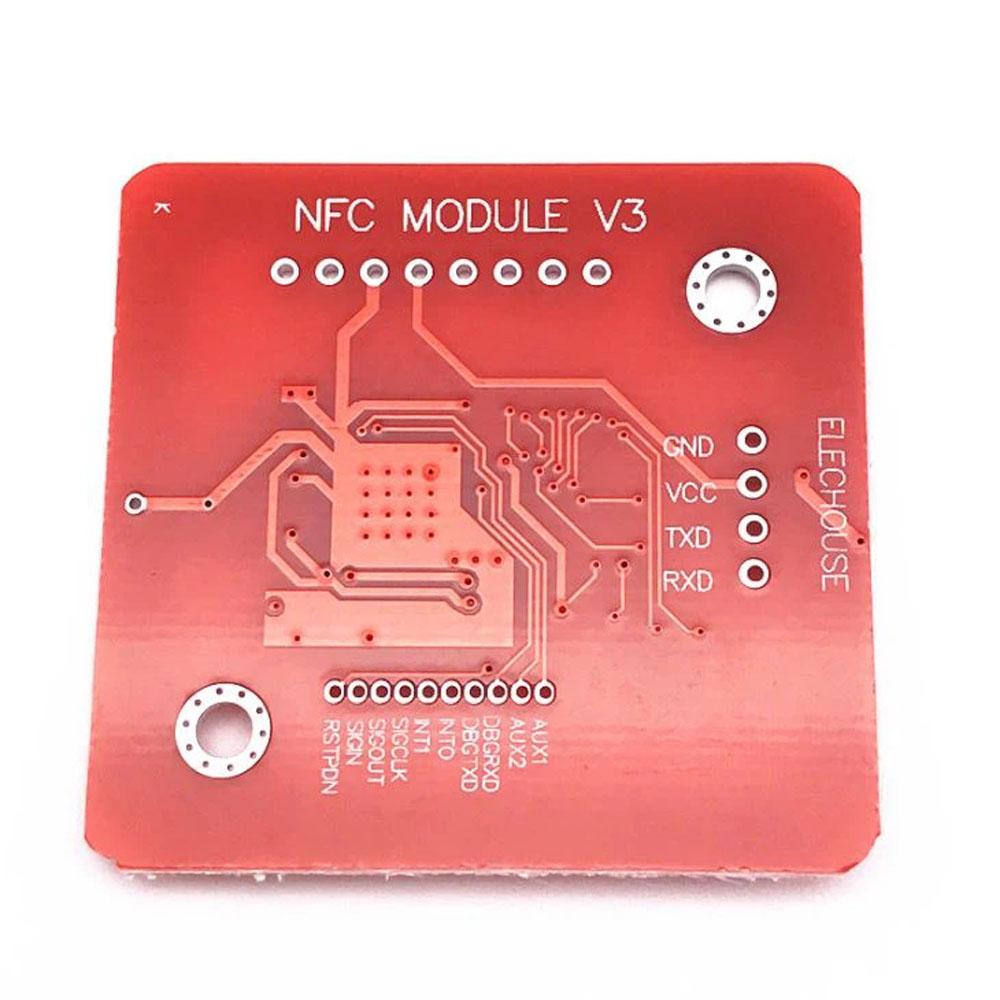

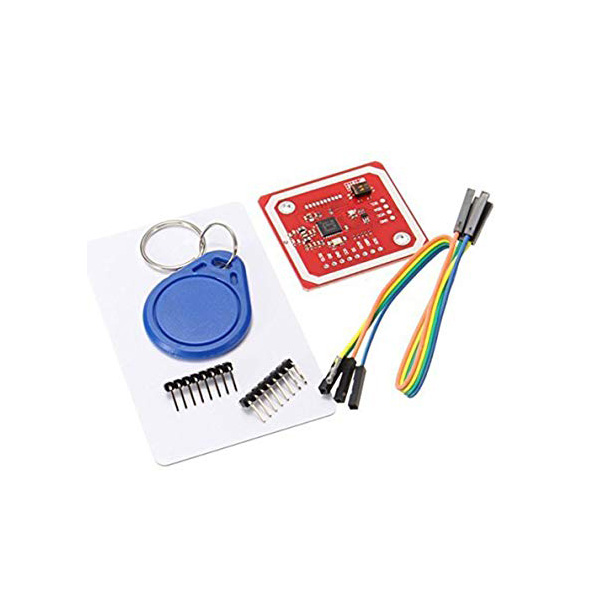

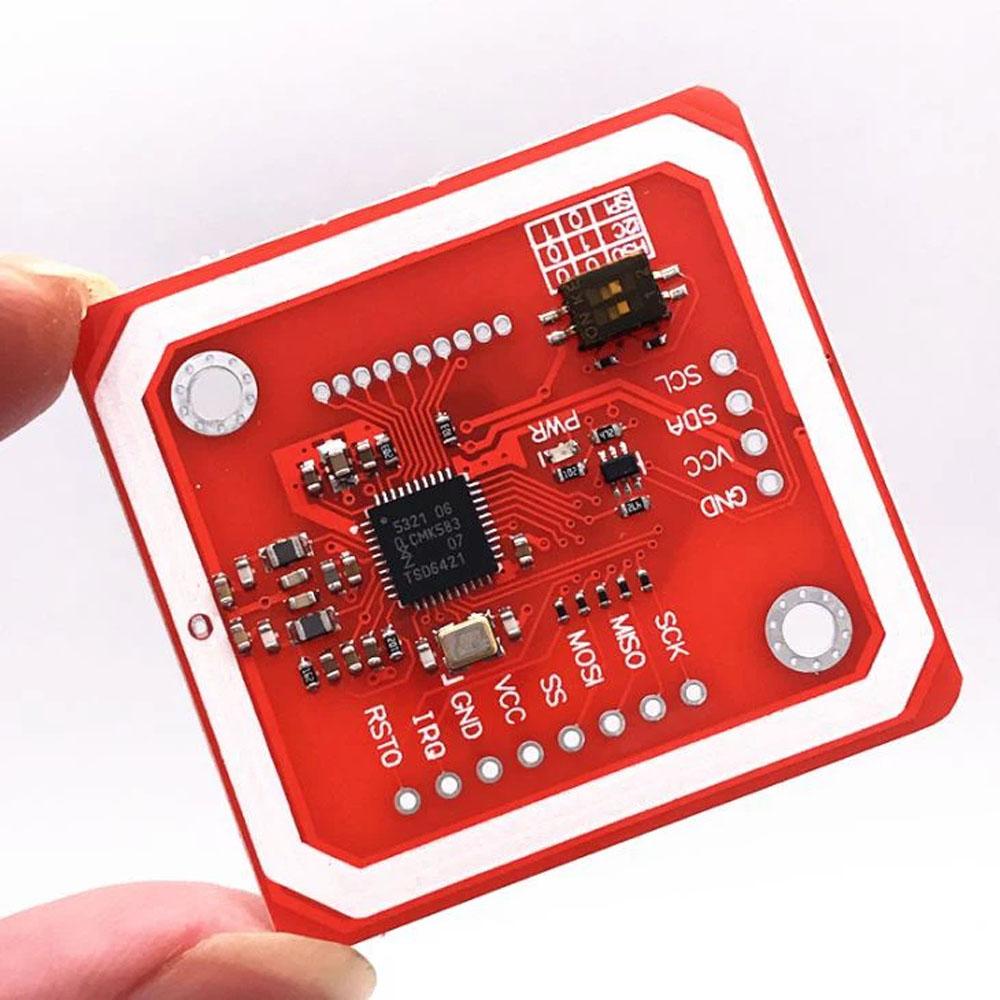

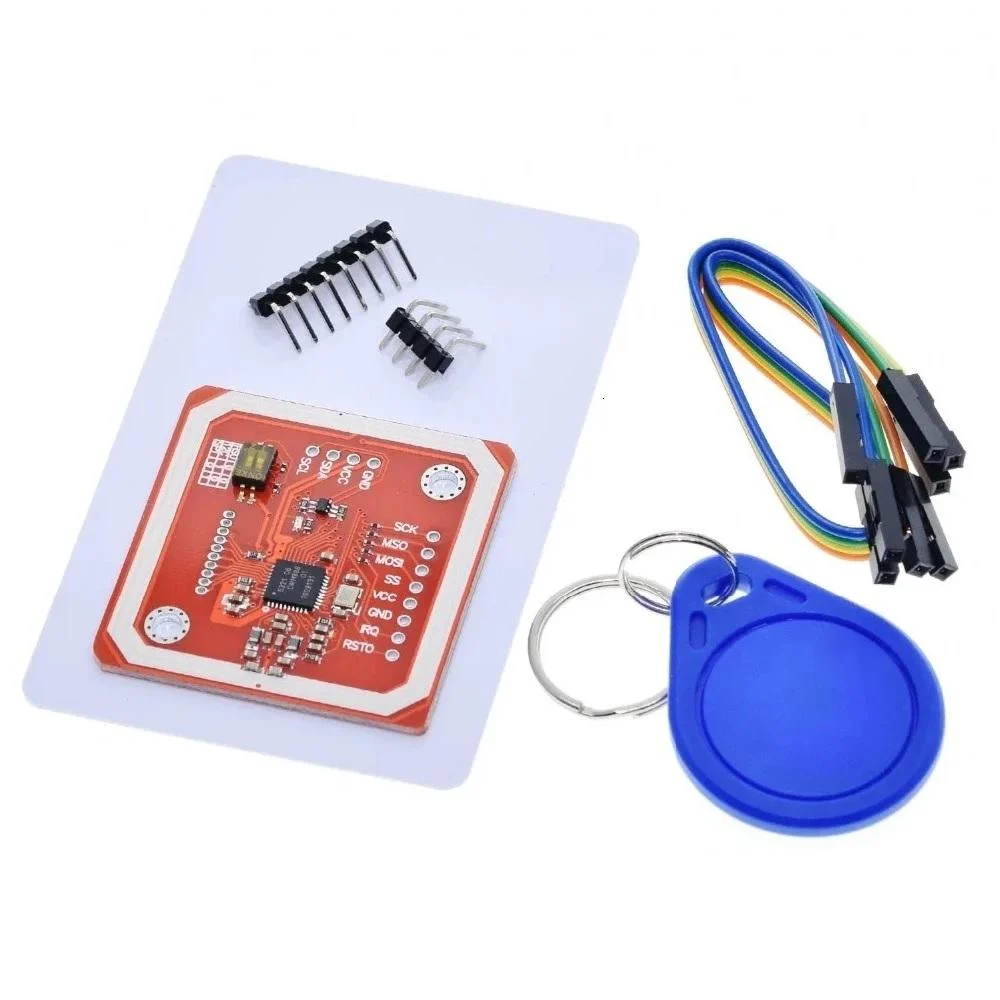

PN532 NFC RFID module V3, NFC with Android phone extension of RFID provide Schematic and library

The PN532 is a highly integrated transmission module for contactless communication at 13.56 MHz including microcontroller functionality based on an 80C51 core with 40 Kbytes of ROM and 1 Kbytes of RAM. The PN532 combines a modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz with an easy-to-use firmware for the different supported modes and the required host controller interfaces.

It works as an RFID reader/writer,1443-A card, or a virtual card and also supports NFC with Android phones. It is also compatible with Arduino.

Features:
Support II2, SPI and HSU (High-Speed UART)
Module Size: 42.7mm x 40.4mm x 4mm
I2C / UART: 3.3V ~ 24V TTL
SPI: 3.3V TTL with 100-ohm resistors in series
Communication distance: 5cm~7cm
On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
Work in NFC Mode or RFID reader/writer Mode
RFID reader/writer supports:
Plug and play, compatible
Built-in PCB Antenna, with 4cm~6cm communication distance
On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
Work as an RFID reader/writer
Work as a 1443-A card or a virtual card
Exchange data with other NFC devices such as a smartphone
