RS232 to TTL SP3232 UART Transceiver Communication Serial Module
IC Chip: SP3232E
Operating Voltage: 3.0V – 5.5V
Pre-assembled compact size board
Suitable for use with most microcontrollers
ESD enhanced
Hardware flow control supported
₹292.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:

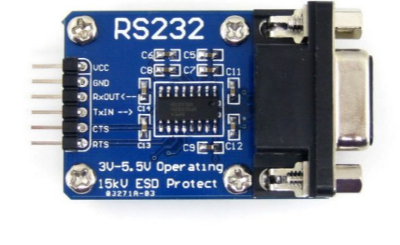

The RS232 Board is used for establishing RS232 communication with devices powered from 3V – 5.5V. It contains SP3232 (RS-232 Transceiver) and DB9 connector used for connecting PC and MCU. The RS232 Board features ESD protection and supports hardware flow control.
The SP3222E/3232E series is an RS-232 transceiver solution intended for portable or handheld applications such as notebook or palmtop computers. The SP3222E/3232E series has a high-efficiency, charge-pump power supply that requires only 0.1µF capacitors in 3.3V operation. This charge pump allows the SP3222E/3232E series to deliver true RS-232 performance from a single power supply ranging from +3.3V to +5.0V.
Features:
SP3232(RS232)
DB9 connector
UART port
