SN7495N IC
Features:-
Synchronous, Expandable Shift Right
Synchronous Shift Left Capability
Synchronous Parallel Load
Separate Shift and Load Clock Inputs
Input Clamp Diodes Limit High Speed Termination Effects
₹14.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:

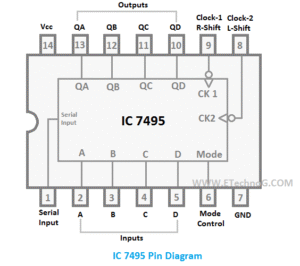

The 74LS95 is a 4-Bit Shift Register with serial and parallel synchronous operating modes. The serial shift right and parallel load are activated by separate clock inputs which are selected by a mode control input. The data is transferred from the serial or parallel D inputs to the Q outputs synchronous with the HIGH to LOW transition of the appropriate clock input. The LS95B is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all Motorola TTL families.
