STM32F401CCU6 Minimum System Board Microcomputer STM32 ARM Core Board
STM32F401CCU6 Minimum System Board Microcomputer STM32 ARM Core Board - Image 2
STM32F401CCU6 Minimum System Board Microcomputer STM32 ARM Core Board - Image 3
STM32F401CCU6 Minimum System Board Microcomputer STM32 ARM Core Board - Image 4
STM32F401CCU6 Minimum System Board Microcomputer STM32 ARM Core Board - Image 5

STM32F401CCU6 Minimum System Board Microcomputer STM32 ARM Core Board

SKU: SB-010

Specifications:

Item Type: Other Board
Based On: STM32 Based
USB Connector: Type-C
Length (mm): 53
Width (mm): 20
Height (mm): 5
Weight (g): 7

₹304.00 (Incl. GST)

Need Help or Support?
Click Here

Free Delivery on all
orders above ₹1999

Unbeatable prices and monthly deals.

  • Didn’t find what you are looking for?
Let Us Know

CONTACT US

Have a question or feedback? Fill out the form below, and we’ll get back to you as soon as possible.

    Payment Methods:

    Description

    Description

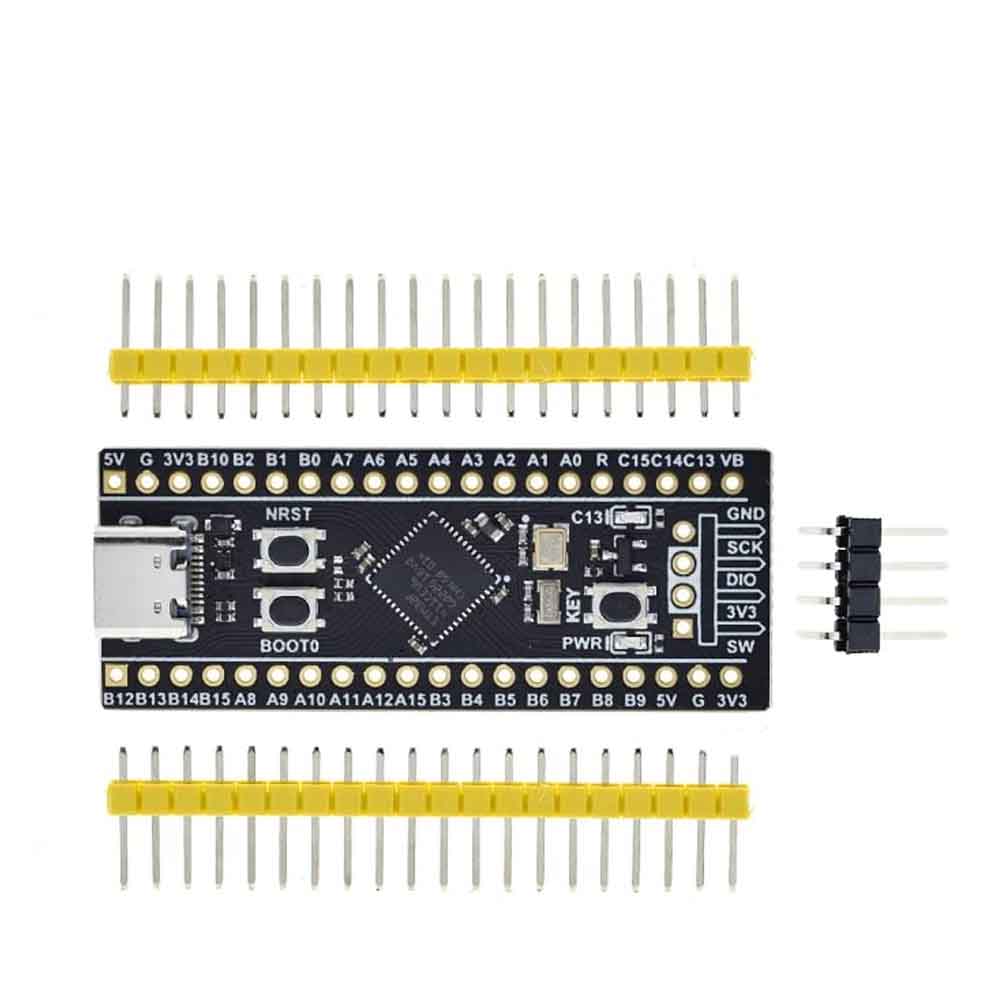

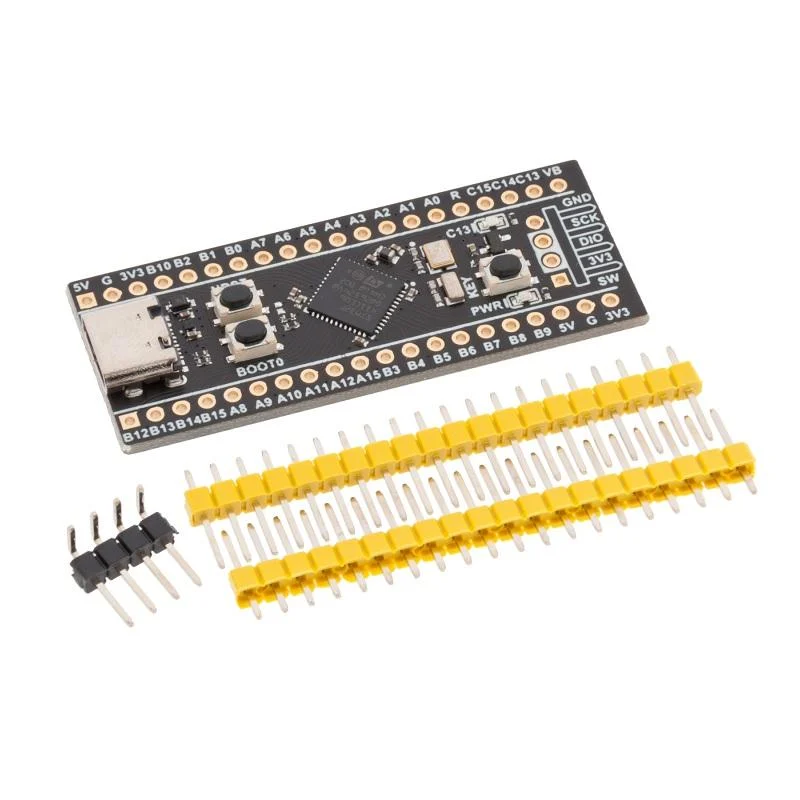

    This is STM32F401CCU6 Minimum System STM32 ARM Core Board. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F401CCU6.

    Board is suitable for learners that want to learn the STM32 microcontroller with ARM Cortex-M4 32-bit core.

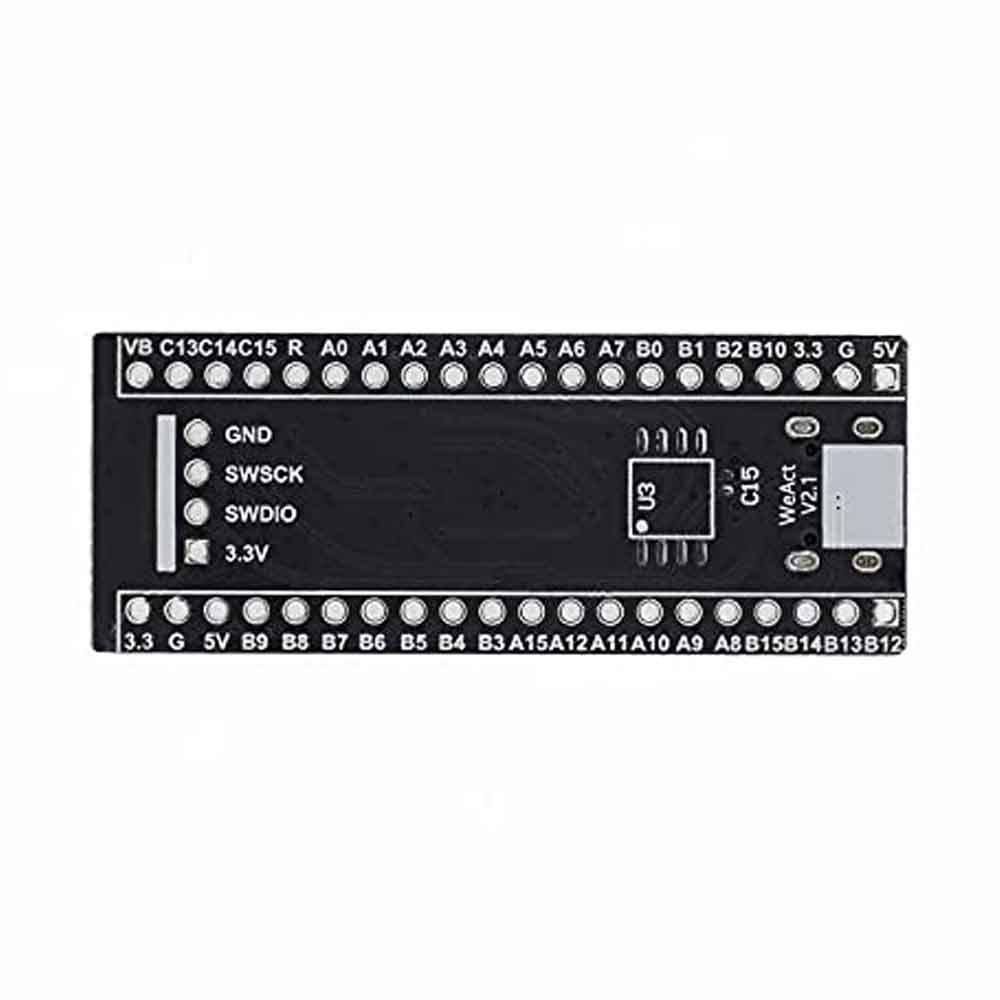

    Pinout Diagram:

    Features :
    100% Brand new and high-quality STM32 Board
    84 MHz work frequency.
    256K flash memory,64K SRAM.
    1.7-3.6V power, I/O.
    4-26MHz crystal.
    Onboard the Type-C USB interface, you can give the board power supply and USB communication.
