Note: Image shown is a representation only.

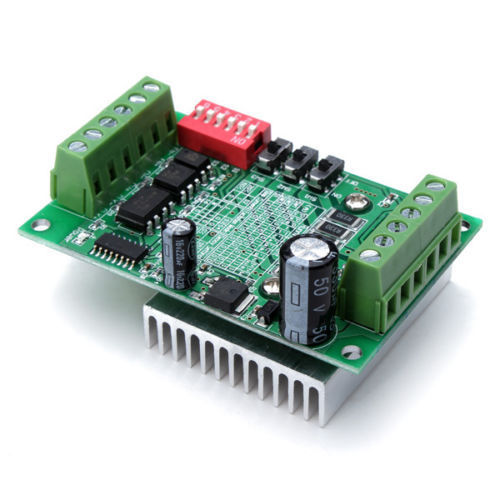

TB6560 Driver Board 3A CNC Router Single 1 Axis Controller Stepper Motor
Specifications:
Driver Chip: TB6560AHQ
Operating Voltage: 10-35V
Nominal Voltage: 24V

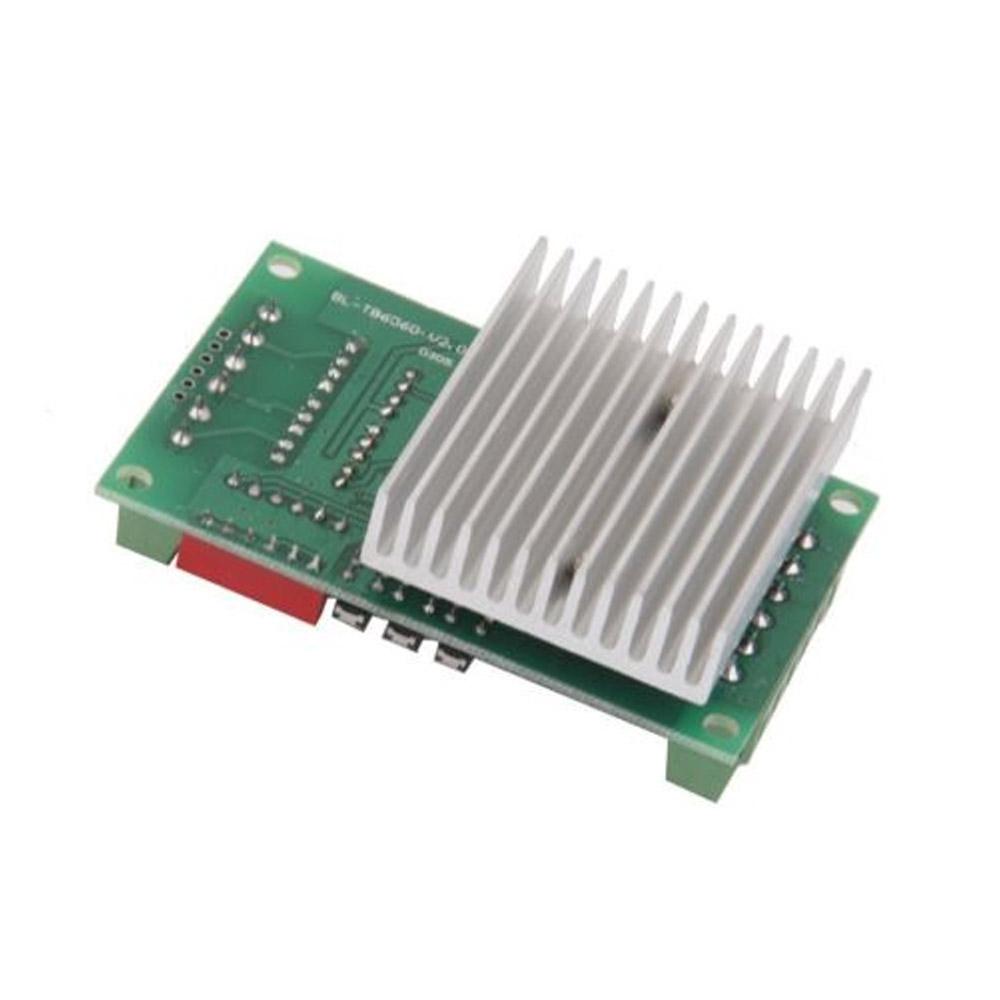

With the large heat sink to ensure good heat dissipation
6N137 high-speed OptoCoupler, to ensure a high speed without step out.
Original price was: ₹767.00.₹650.00Current price is: ₹650.00. (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
This stepper motor driver is featuring TB6560AHQ new original chip. The TB6560AHQ has low voltage shutdown, overheating stop and overcurrent protection circuit to ensure optimal performance.
The TB6560 stepper motor control circuit is the most commonly used current circuit, which can control a 2 phase motor (10 – 35VDC) with a maximum output of 3A. The TB6560 stepper motor control circuit is used for stepper motor control, CNC machine applications or precision mechanical systems.
It is used is for axis control with Input signal high-speed optocoupler isolation, the large heat sink to ensure good heat dissipation. Stepper motor driver is Semi-flow mode adjustable, semi-flow current adjustable, with a variety of semi-flow model and semi-flow current setting functions.
