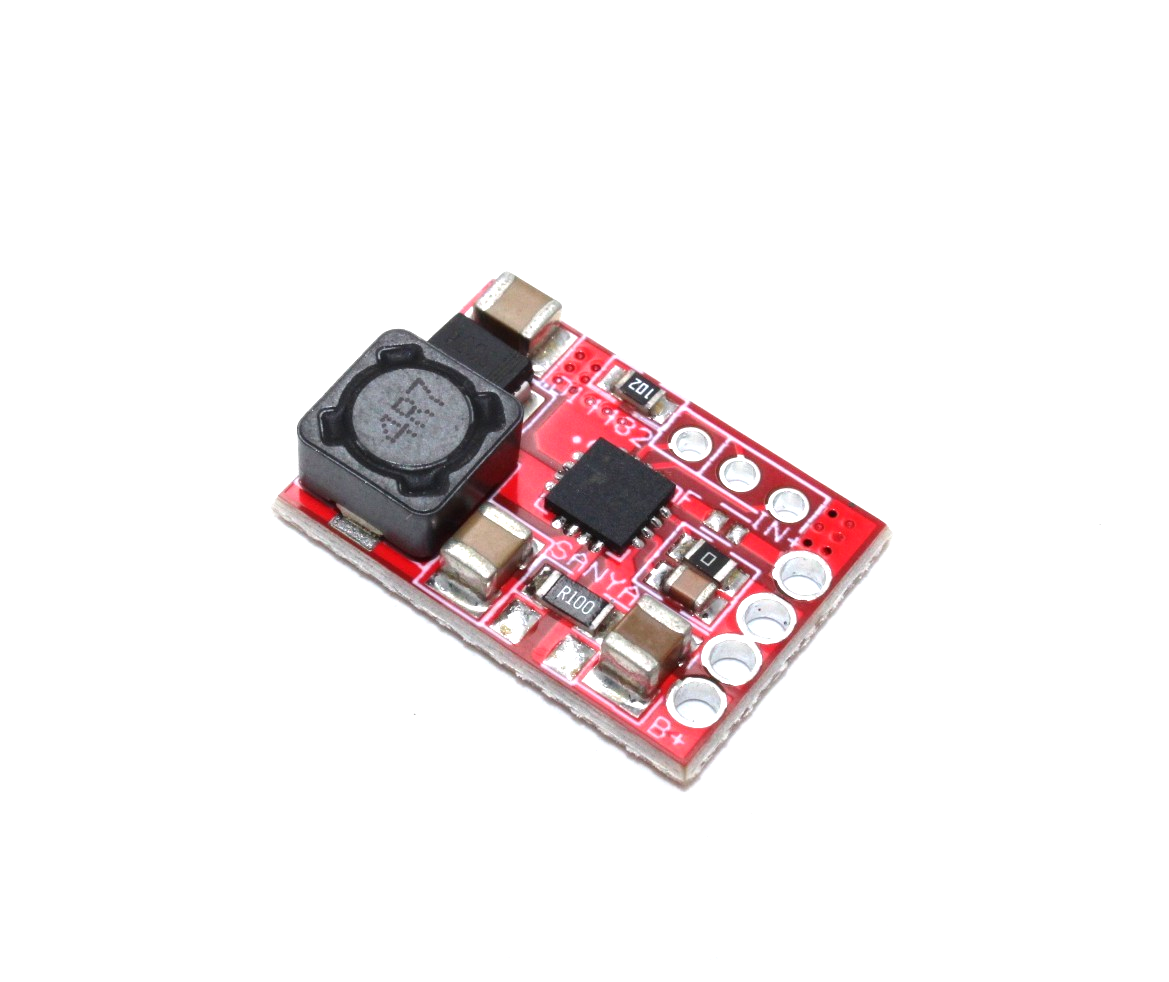

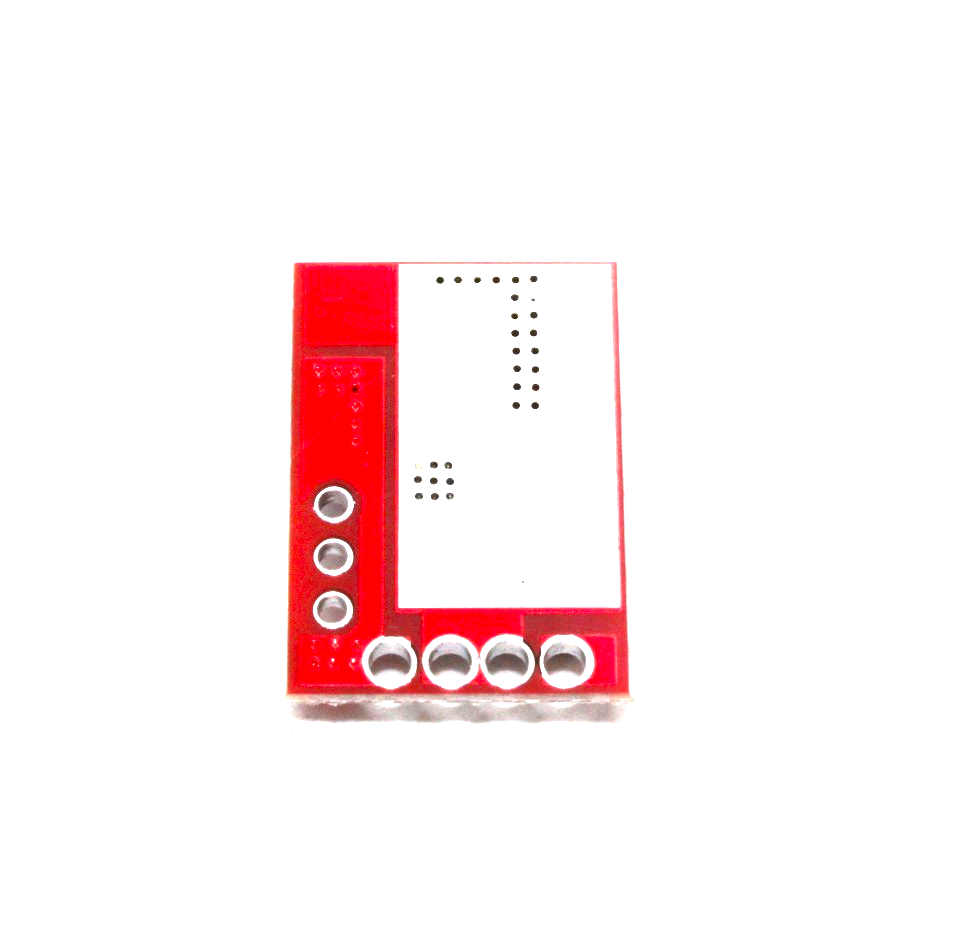

TP5000 3.6V/4.2V 1A Lithium Battery Charger Module

TP5000 3.6V/4.2V 1A Lithium Battery Charger Module

This module is a Lithium Battery Charging Module based on the TP5000 Battery Charging IC. It can charge a lithium battery with a current of up to 1A and includes advanced features such as battery temperature protection, reverse battery protection, and short circuit protection.

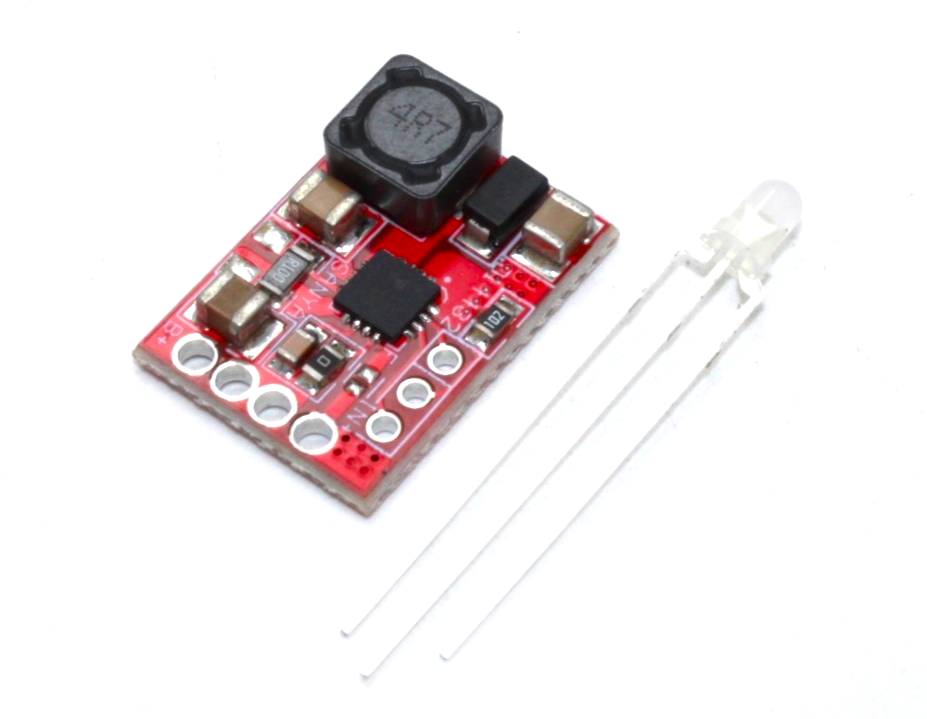

The module features a dual-color LED that indicates the battery’s charging and full status. It also functions as a battery protection board, with a built-in automatic recharge feature that automatically charges the battery when it becomes fully discharged.

Applications:

Portable Equipment
MP3,Mp4 Players
Electric Tools
LED Drivers.
Features:
Single Battery Charger Module
Programable Charge Curren Form 0.1A to 2A
Programable Precharge Current Form 10% to 100%
LED
Specifications:

Operating Voltage (VDC): 4.2~9
Operating Temperature (°C) -40 to 85
Charging method Linear
Length (mm): 21.7
Width (mm): 15.5
Height (mm): 5.7
Weight (g): 2
