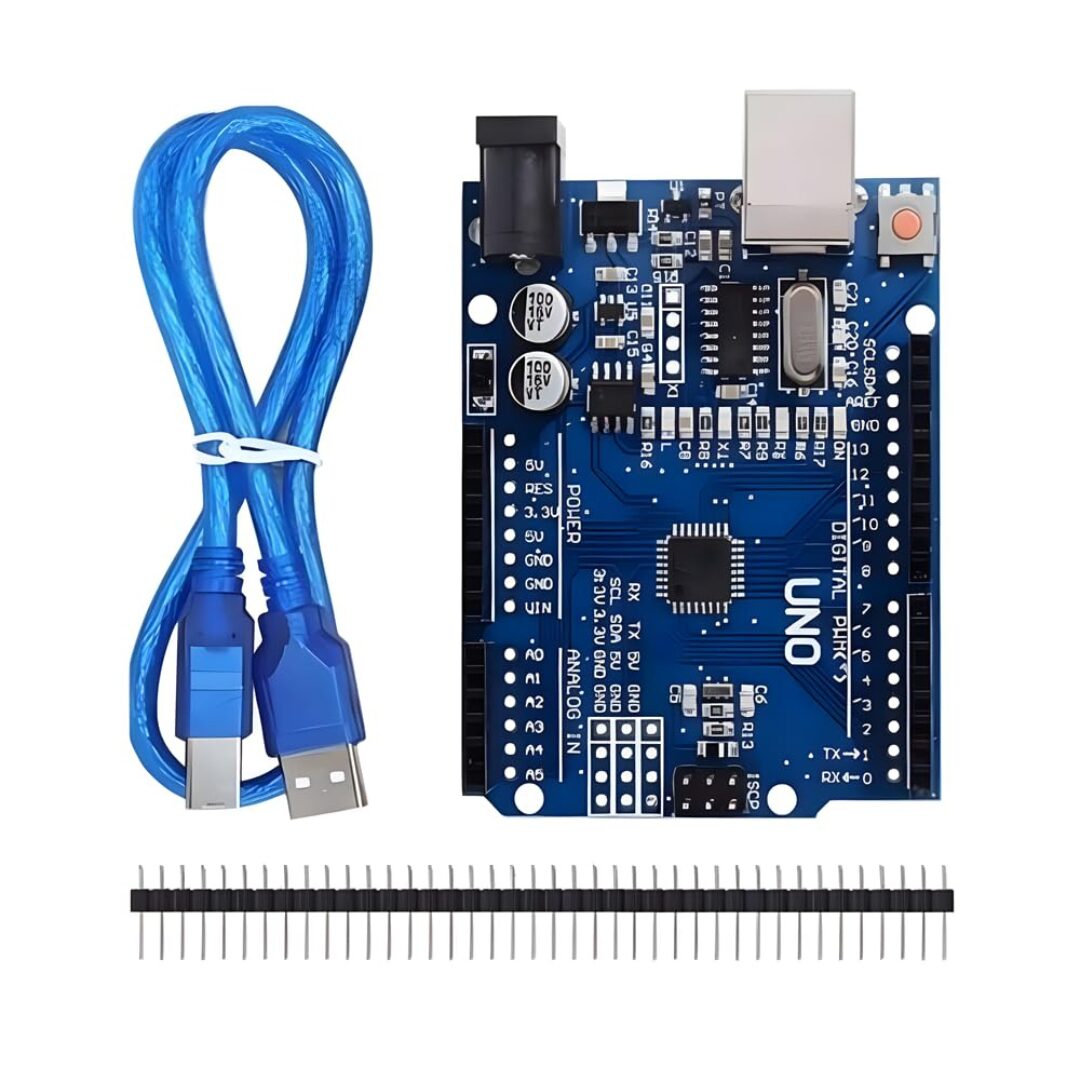

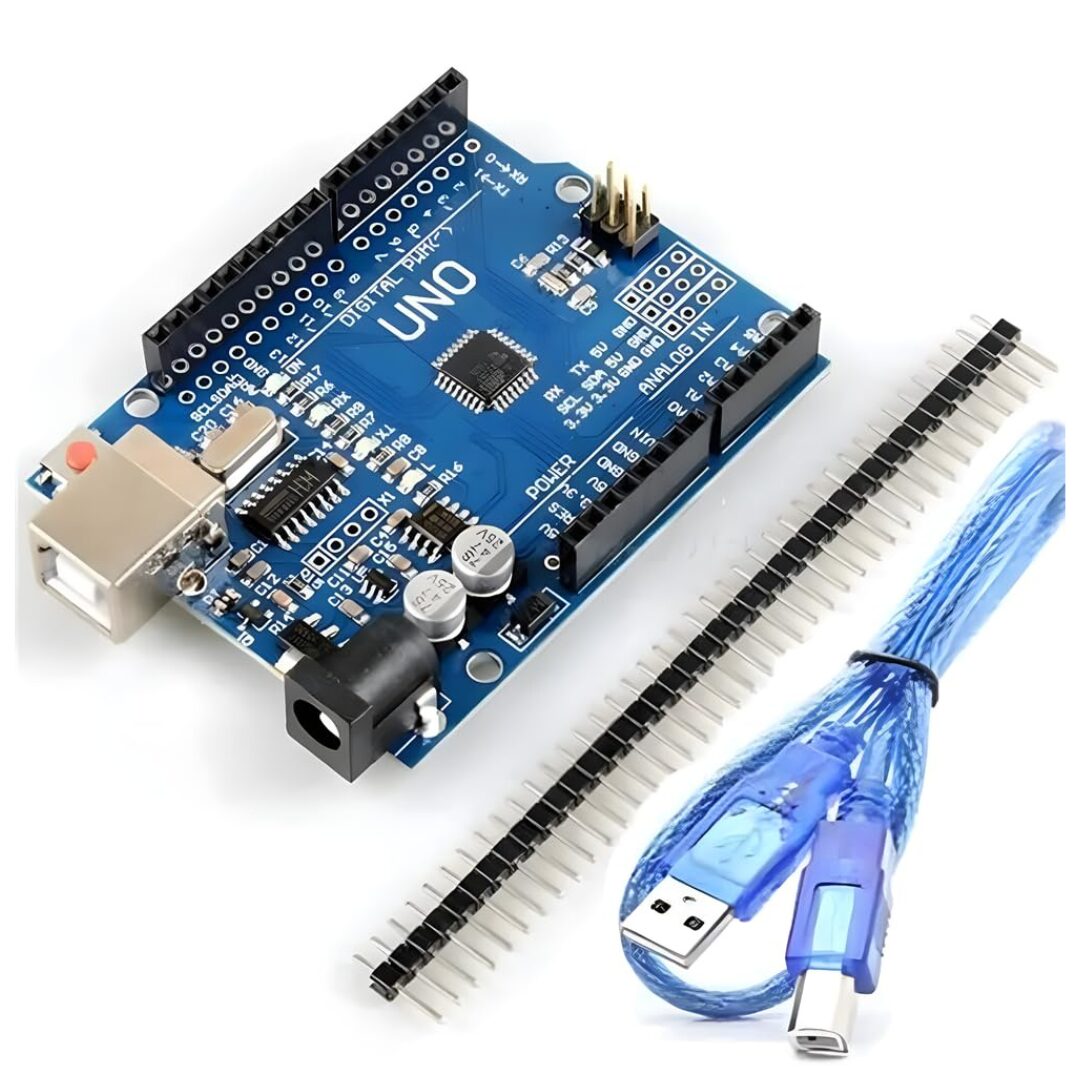

UNO R3 CH340G ATMega328P compatible with arduino + Cable

This is UNO R3 CH340G ATMega328P compatible with Arduino + Cable For Uno R3. A basic Arduino kit with all the components included eliminating the time our customers for finding and buying Arduino ant its basic accessories.

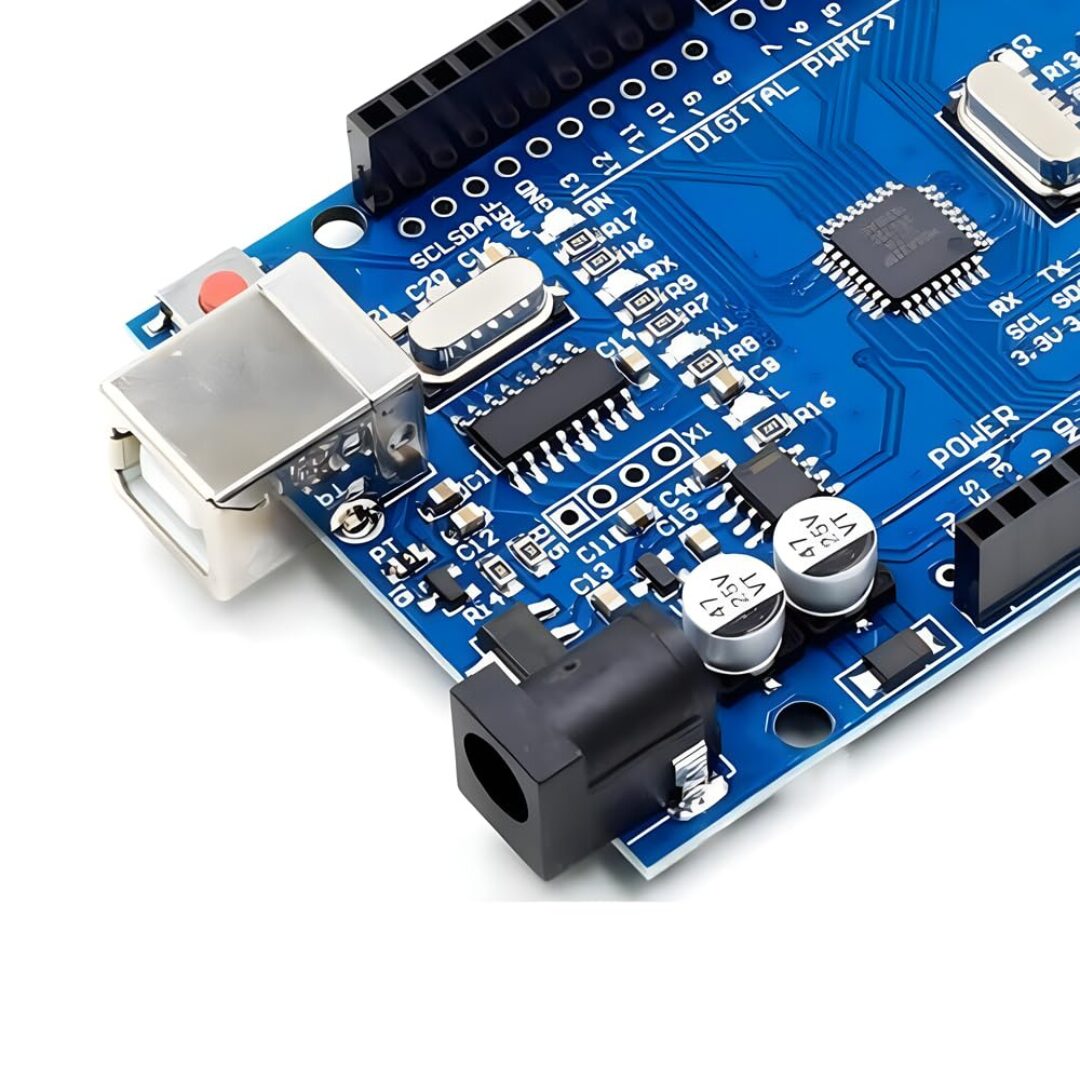

Uno R3 CH340G ATmega328p Development Board is the low-cost version of the popular Uno R3 Arduino. It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip.

We have used plenty of these low-cost Arduino boards with CH340 chips, and have found them to work perfectly. The only time the CH340 chip is used is during programming and when using the serial output of the USB port. During normal operation, this board is identical to the more expensive version without CH340 chip.

Main changes from the older version:
1. Two rows of the holes for the pins (Male and Female). So it can be connected with normal Female Jumpers.
2. Additional 3 rows of the holes for wiring.
3. Changes to the DIP package of ATMEGA328P to flat package.
4. CH340G replace ATmega16U2

Specifications and Features :
UNO R3 Arduino CH340G
Microcontroller ATmega328 (SMD) – Interface CH340G
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 5-20V
Digital I / O Pins 14 (of which 6 provide PWM output)
Analog Input Pins: 6
DC Current per I Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM: 2 KB (ATmega328)
EEPROM: 1 KB (ATmega328)
Clock Speed: 16 MHz

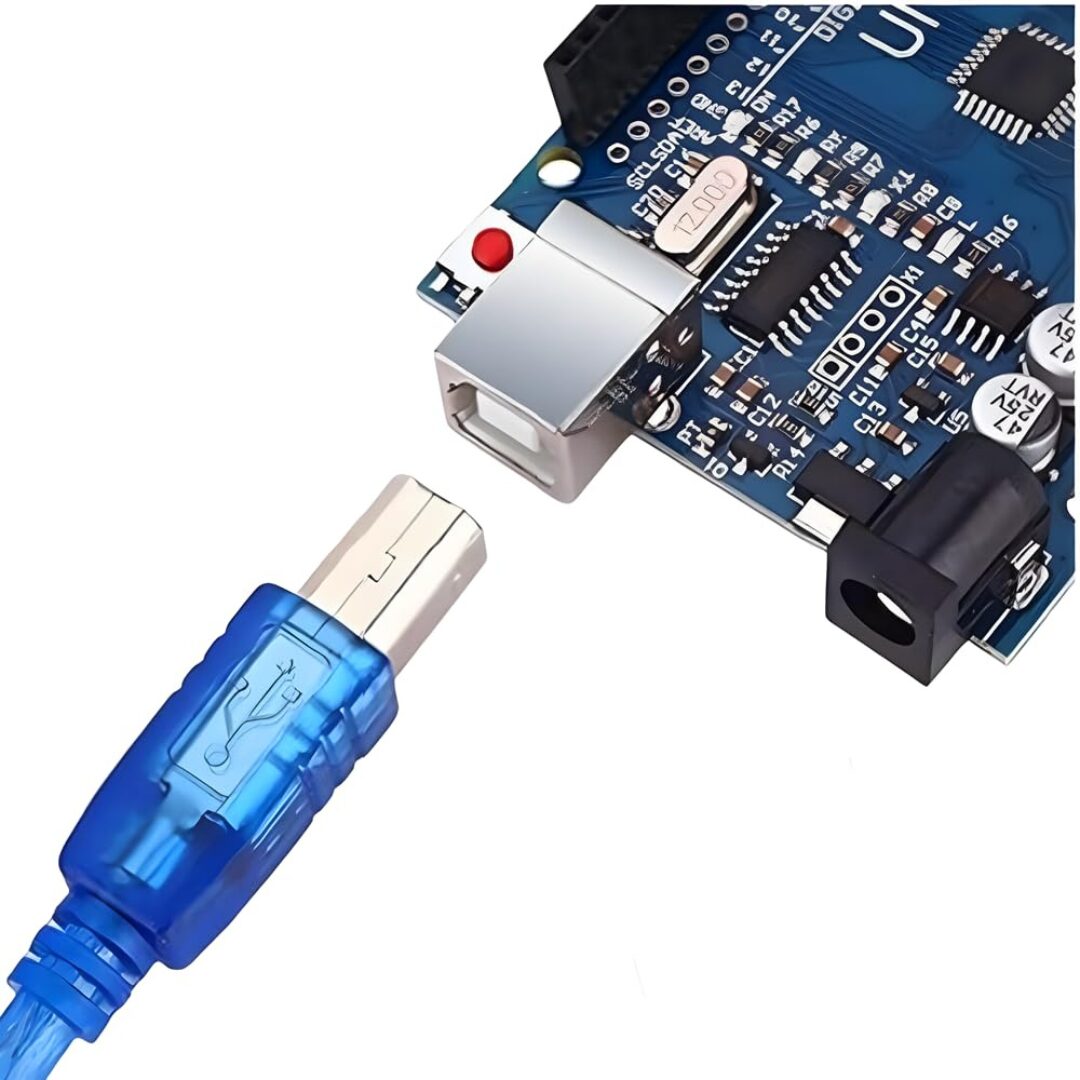

Cable for UNO Arduino:
Length 1 foot
Hot Pluggable.
Fully compatible with the PC.
Molded strain relief and PVC overmolding to ensure a lifetime of error-free data transmissions.
Aluminum under-mold shield helps meet FCC requirements on KMI/RFI interference.
Foil and braid shield complies with fully rated cable specifications reducing EMI/FRI interference.
For Error-Free High-Performance Transmission.
