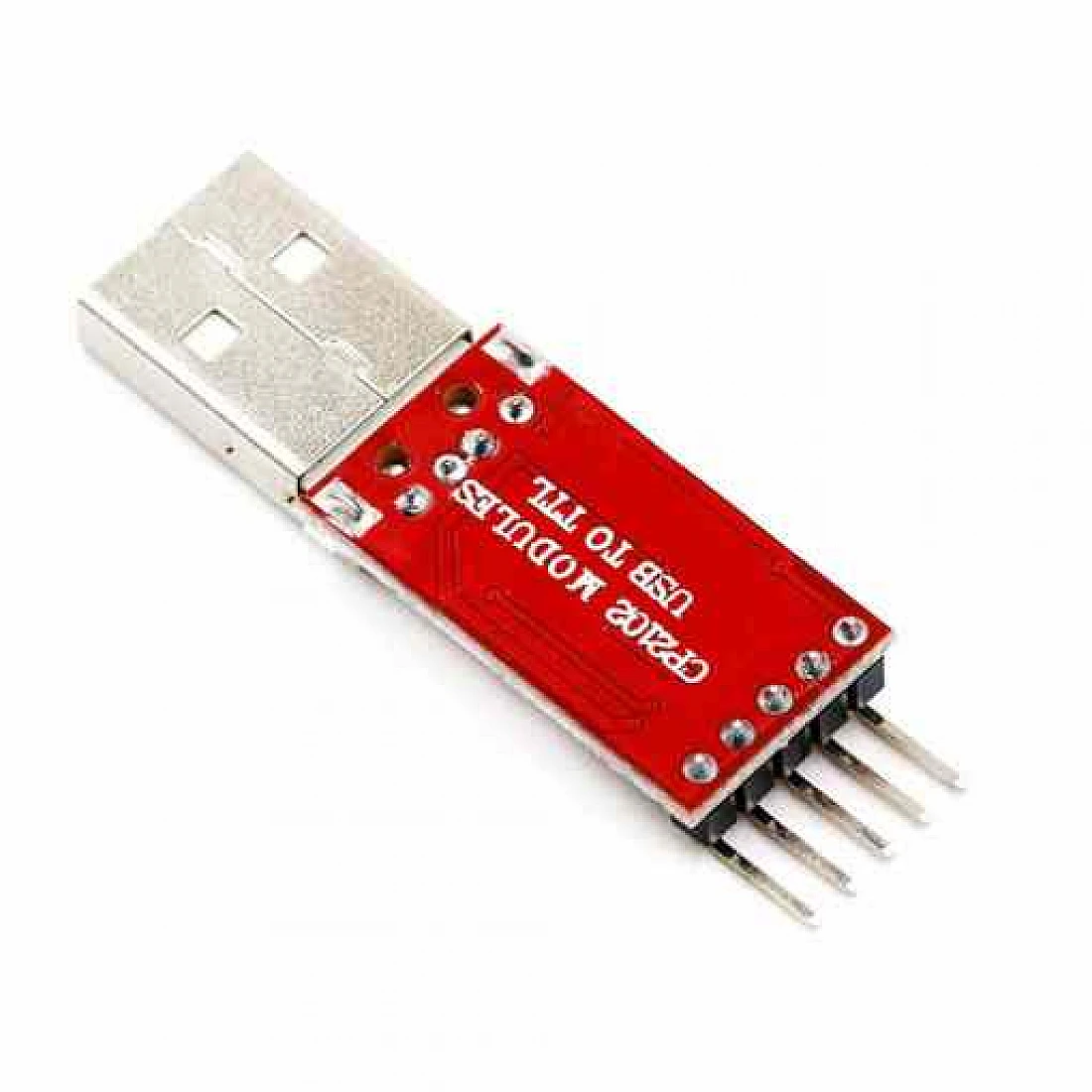

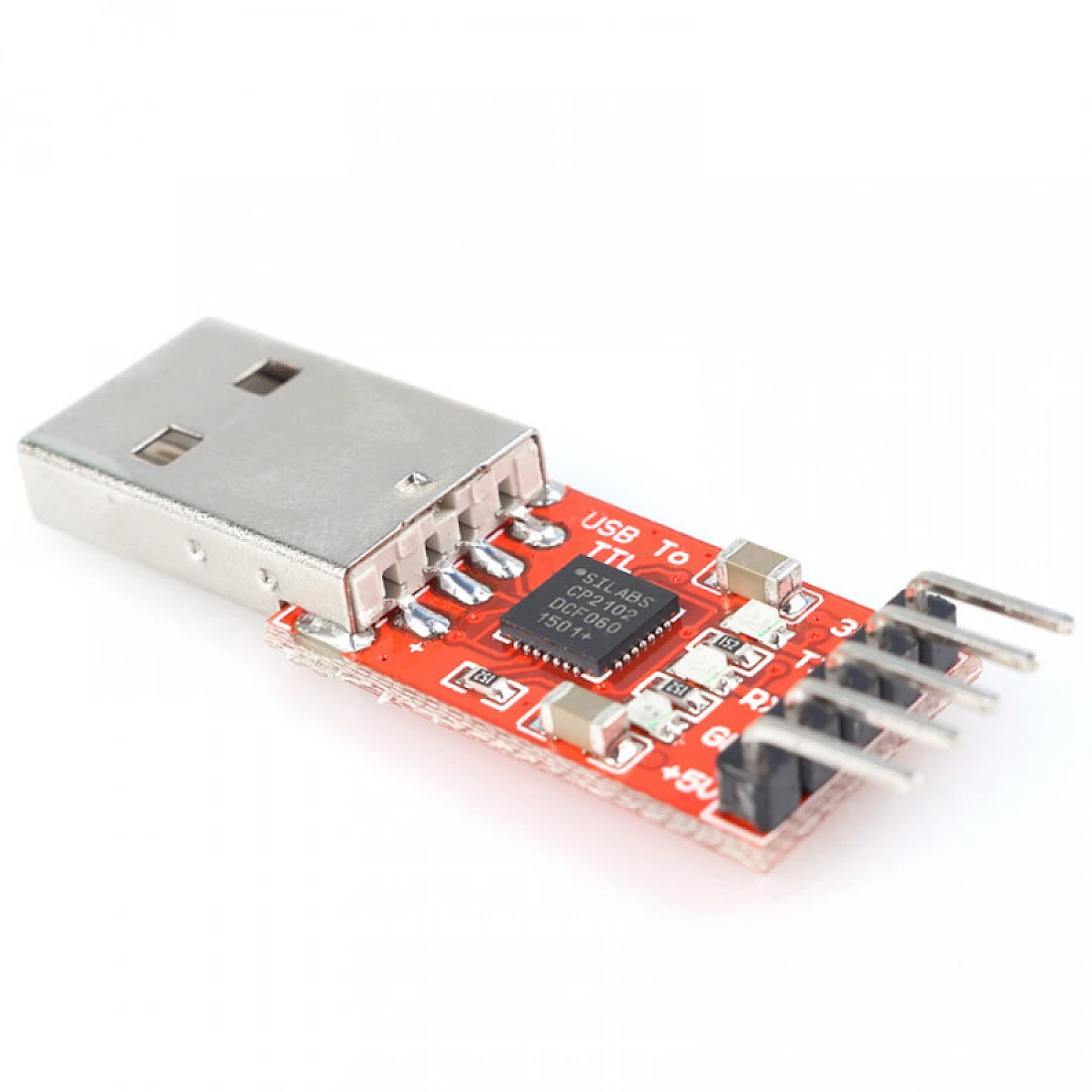

USB To UART TTL Serial CP2102 Module STC Download Cable Pl2303 for Arduino
Chipset: CP2102
Power: USB, 3.3V (<40mA), 5V, GND, TX, RX
Baud Rate: 300bps to 1Mbps.
Signal Levels: 3.3V, positive logic.
OS Support: Windows, Mac OS, Linux.
Format Support: 5-8 data bits, 1/2 stop bits
₹149.00 (Incl. GST)
Need Help or Support?
Click Here
Free Delivery on all
orders above ₹1999
Unbeatable prices and monthly deals.
- Didn’t find what you are looking for?
CONTACT US
Payment Methods:
CP2102 chip is a single-chip USB to UART bridge IC. It requires minimal external components.
CP2102 can be used to migrate legacy serial port based devices to USB.
Features:
Stable and reliable chipset CP2102.
USB specification 2.0 compliant with full-speed 12Mbps.
Standard USB type A male and TTL 6pin connector.
6pins for 3.3V, RST, TXD, RXD, GND & 5V.
Baud rates: 300 bps to 1.5 Mbps
Byte receives buffer; 640 bytes transmit buffer.
Hardware or X-On/X-Off handshaking supported.
Event character support Line break transmission.
USB suspend states supported via SUSPEND pins.
Temperature Range: -40 to +85.
Size: 42mm X 15mm.
Weight: 4g
