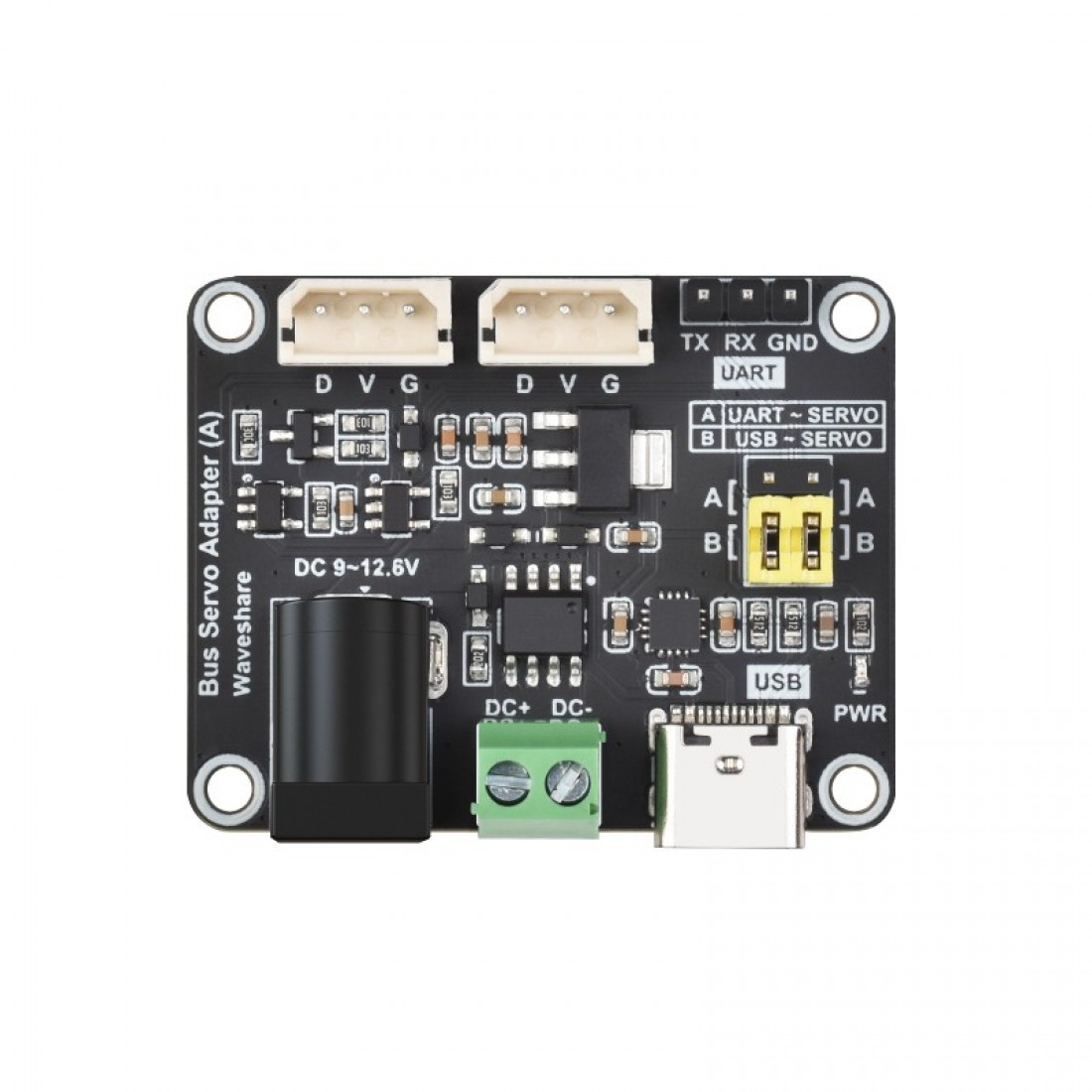

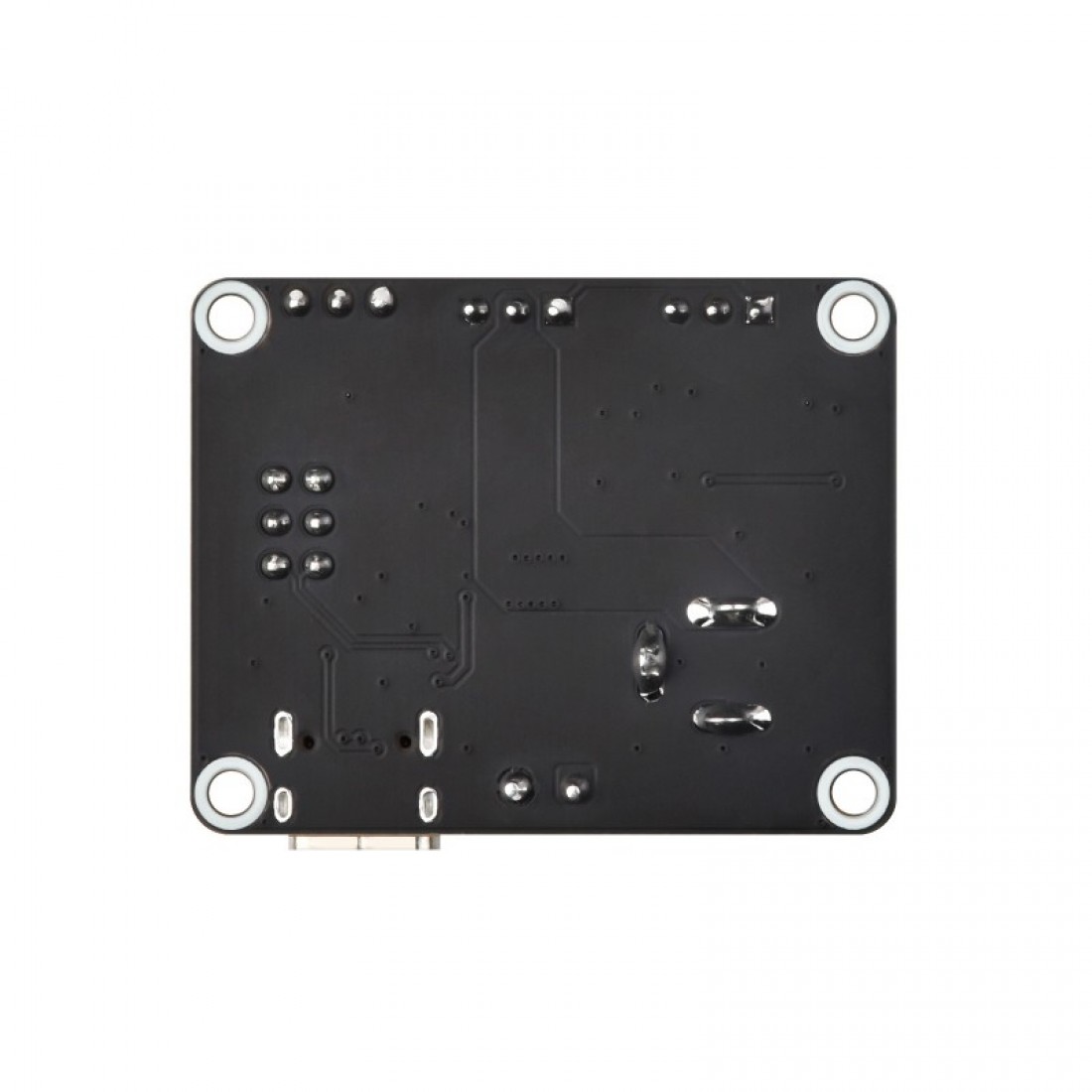

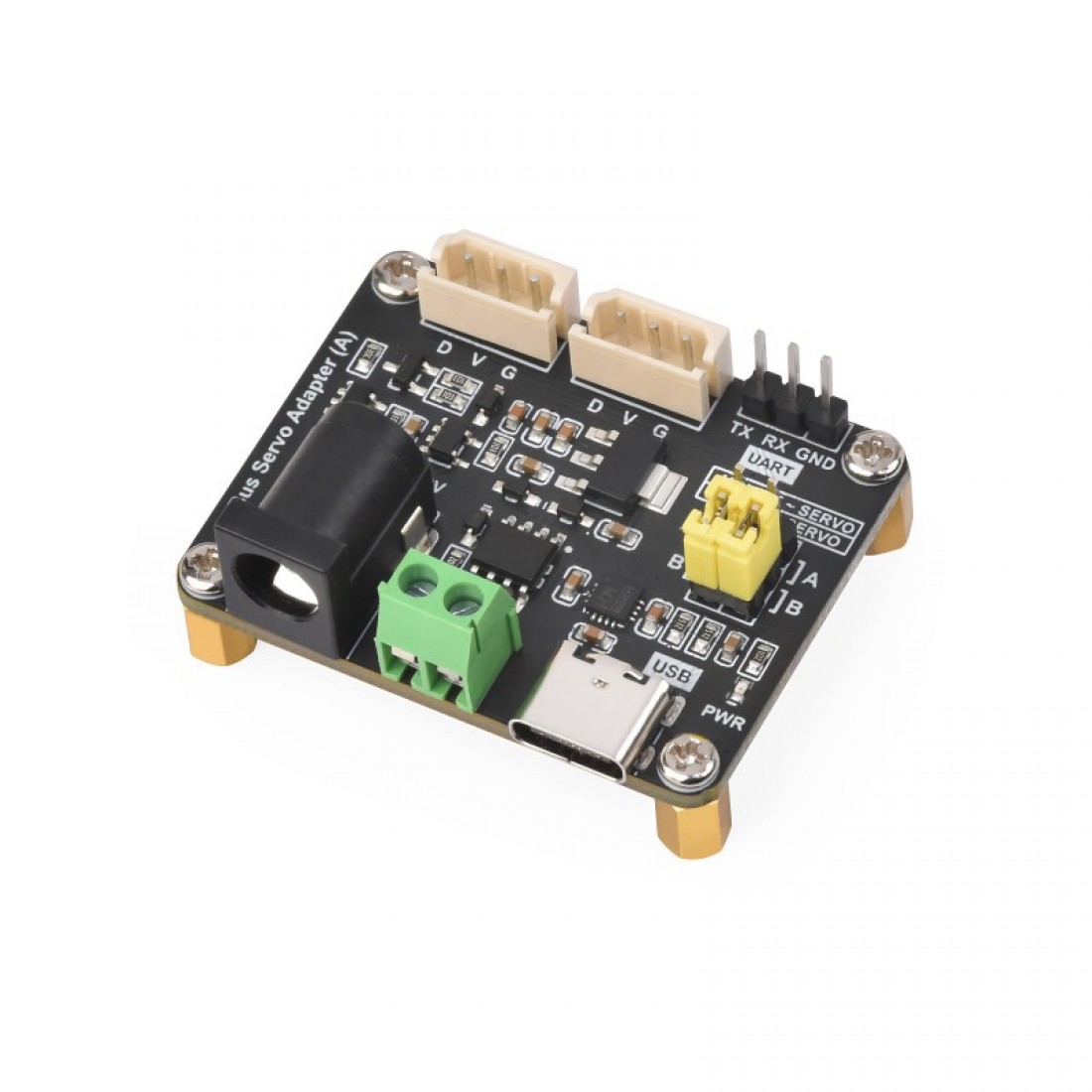

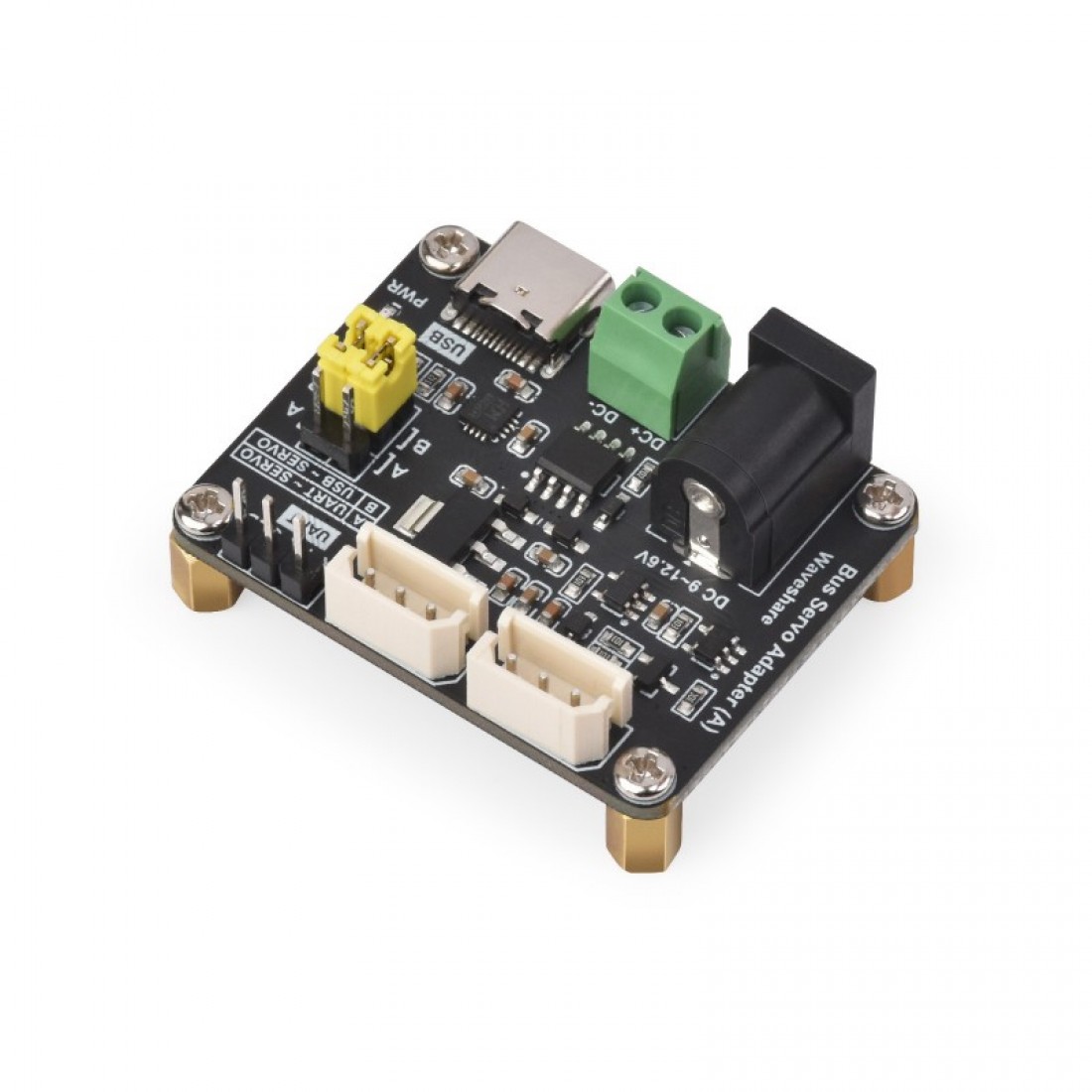

Waveshare Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable for ST/SC Series Serial Bus Servos - Image 1

Click to enlarge

Note: Image shown is a representation only.

Waveshare Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable for ST/SC Series Serial Bus Servos

Name: Waveshare Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable for ST/SC Series Serial Bus Servos - AM Electronics
Price: 550.00 INR
Availability: InStock

Specifications

Support connecting to a host computer or MCU to control the serial bus servos.
Simultaneous control of up to 253 ST/SC series serial bus servos (require sufficient power).
9~12.6V voltage input (input voltage must match servo voltage).
Integrated stable control circuit to ensure stable operation of serial bus servos.
Provide a convenient solution for serial bus servo control.
Mini and space-saving, suitable for embedding into various projects with high space requirements.

₹550.00 (Incl. GST)

5 in stock (can be backordered)

Need Help or Support?
Click Here

Free Delivery on all
orders above ₹1999

Unbeatable prices and monthly deals.

Didn’t find what you are looking for?

Payment Methods:

Description

Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable for ST/SC Series Serial Bus Servos

This is a serial bus servo adapter board integrating the servo power supply and servo control circuit. The demo with a different language for controlling the serial bus servo is provided and supports changing the servo ID and operation mode (Servo mode/Motor mode) through the demo. Theoretically, up to 253 serial bus servos can be controlled and each servo can read the information such as the current angle, load, voltage, mode, etc. Also, we can control the rotation of the serial bus servo by connecting the UART port to the host, which is applicable for robotic arms, hexapod robots, humanoid robots, wheeled robots, and other robotic projects that require feedback on servo angle and load.

User Manual

Features

Support connecting to a host computer or MCU to control the serial bus servos.
Simultaneous control of up to 253 ST/SC series serial bus servos (require sufficient power).
9~12.6V voltage input (input voltage must match servo voltage).
Integrated stable control circuit to ensure stable operation of serial bus servos.
Provide a convenient solution for serial bus servo control.
Mini and space-saving, suitable for embedding into various projects with high space requirements.
