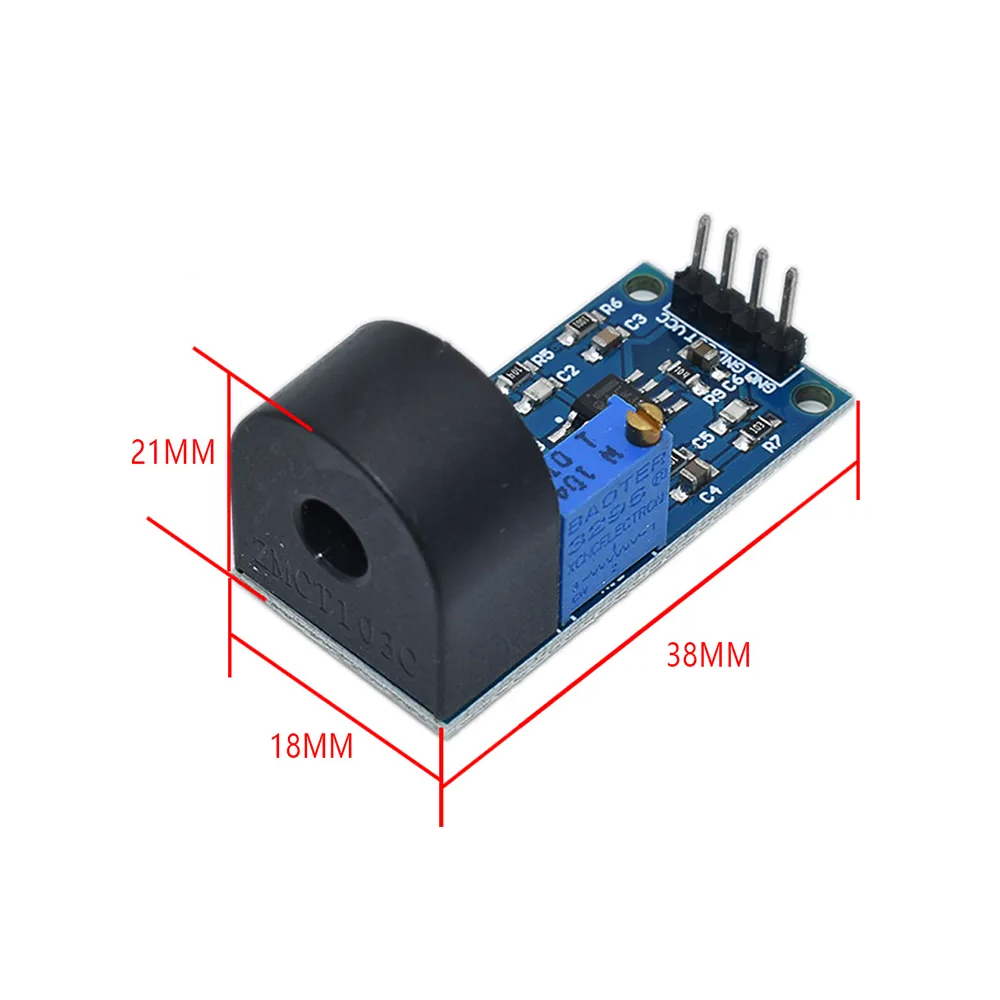

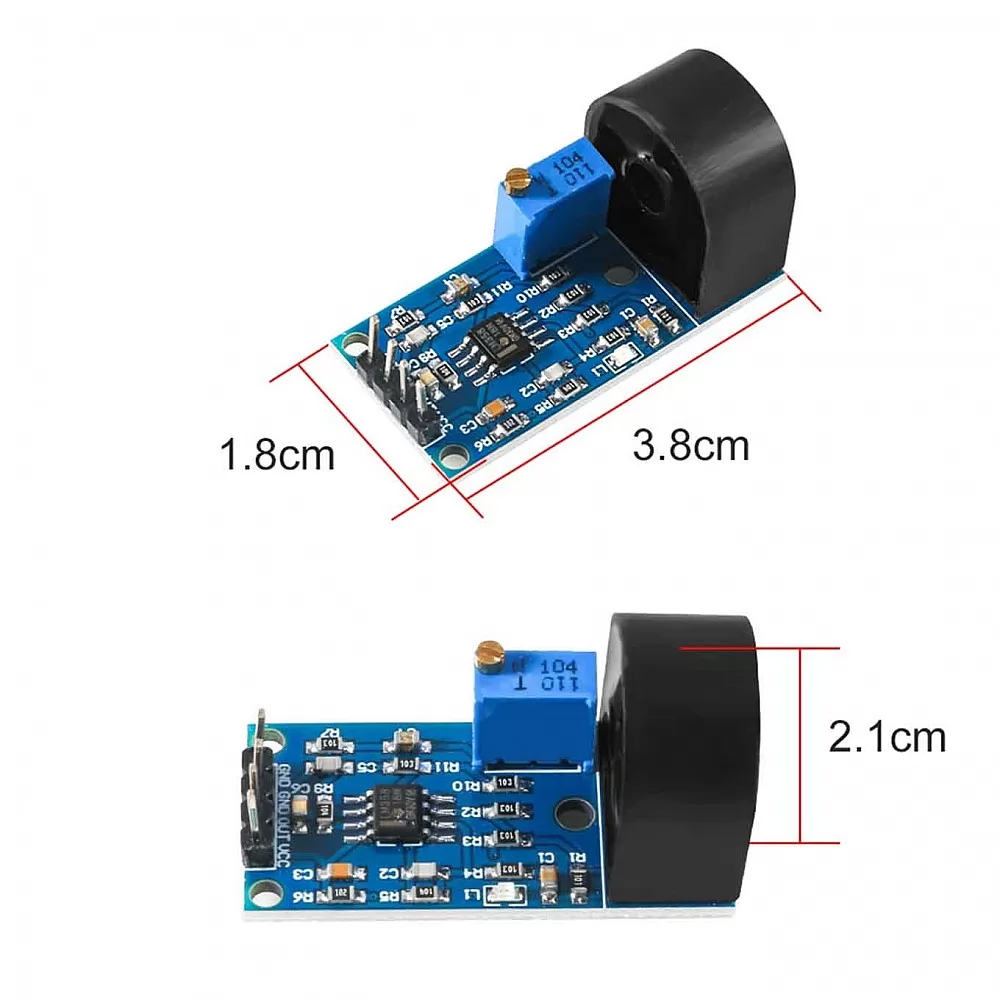

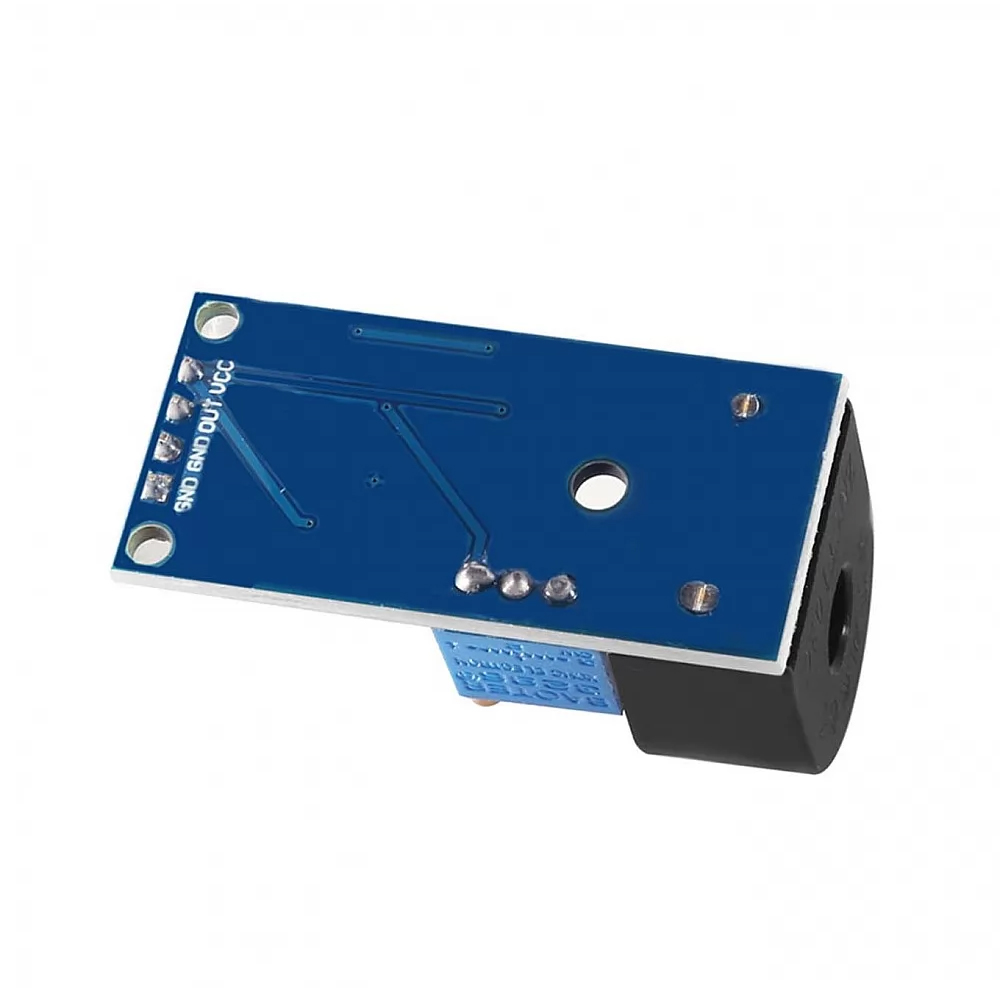

ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module
ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module - Image 2
ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module - Image 3
ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module - Image 4
ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module - Image 5

ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module

SKU: S-094

Specifications:

Current Range: 0 to 5A AC
Rated Input Current: 5A AC
Output Voltage: 0 to 1V AC (proportional to the input current)
Turn Ratio: 1000:1 (primary to secondary winding ratio)
Accuracy Class: 0.5
Frequency Range: 50Hz to 60Hz
Core Material: High-quality ferrite core
Construction: Epoxy encapsulated for durability and reliability
Mounting: PCB mountable with through-hole pins
Dimensions:
Width: 17mm
Height: 13mm
Depth: 12mm
Weight: Approximately 10g

₹105.00 (Incl. GST)

Need Help or Support?
Click Here

Free Delivery on all
orders above ₹1999

Unbeatable prices and monthly deals.

  • Didn’t find what you are looking for?
Let Us Know

CONTACT US

Have a question or feedback? Fill out the form below, and we’ll get back to you as soon as possible.

    Payment Methods:

    Description

    Description
    This AC current sensor module is based on ZMCT103C PCB mount mini current transformer. This module provides a direct analog output which is proportional to the input current. ZMCT103C AC current sensor Module can be easily interfaced to Micro-controller or Arduino.
